SCT2651.pdf• Wide Input Range: 4.5V-60V
• Up to 5A Continuous Output Current
• 0.8V ±1% Feedback Reference Voltage
• Integrated 80mΩ High-Side
• Low Quiescent Current: 175uA
• Pulse Skipping Mode (PSM) in light load
• 130ns Minimum On-time
• Programmable Soft-start Time
• Adjustable Frequency 100KHz to 800KHz
• External Clock Synchronization
• Precision Enable Threshold for Programmable Input
Voltage Under-Voltage Lock Out Protection (UVLO)
Threshold and Hysteresis
• Low Dropout Mode Operation
• Derivable Inverting Voltage Regulator
• Over-voltage and Over-Temperature Protection

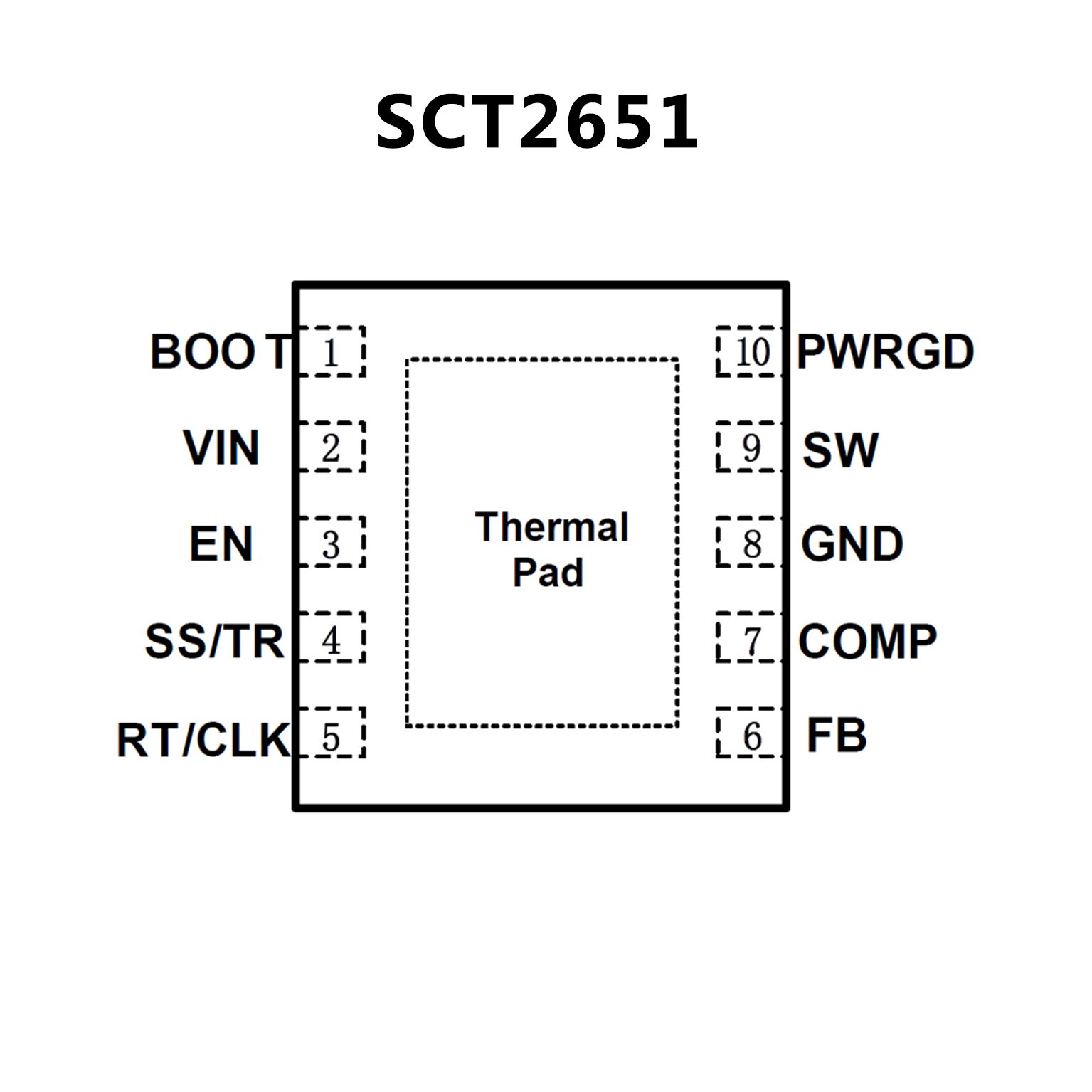

• Available in DFN-10L Package
• Wide Input Voltage Range
• 4.5V to 60V
• 4V to 60V (Soft-start is finished)
• Wide Output Voltage Range : 0.8V to VIN
• 0.8V ±1% Reference Accuracy
• Peak Current Mode Control
• Integrated 70mΩ High-Side MOSFET
• Low Quiescent Current : 100μA
• Low Shutdown Current : 2.25μA
• Adjustable Switching : 100kHz to 2.5MHz
• Synchronizable Switching : 300kHz to 2.2MHz
• Power Saving Mode (PSM) at Light Load
• Low Dropout at Light Loads with Integrated Boot
Recharge FET
• Externally Adjustable Soft-Start by Part Number
Option
• Power Good Indication by Part Number Option
• Enable Control
• Adjustable UVLO Voltage and Hysteresis
• Built-In UVLO, UVP, OVP, OCP, OTP
