SCT2651.pdf• Wide Input Range: 4.5V-60V
• Up to 5A Continuous Output Current
• 0.8V ±1% Feedback Reference Voltage
• Integrated 80mΩ High-Side
• Low Quiescent Current: 175uA
• Pulse Skipping Mode (PSM) in light load
• 130ns Minimum On-time
• Programmable Soft-start Time
• Adjustable Frequency 100KHz to 800KHz
• External Clock Synchronization
• Precision Enable Threshold for Programmable Input
Voltage Under-Voltage Lock Out Protection (UVLO)
Threshold and Hysteresis
• Low Dropout Mode Operation
• Derivable Inverting Voltage Regulator
• Over-voltage and Over-Temperature Protection
• Available in DFN-10L Package
• High Efficiency at Light Loads with Pulse Skipping
Eco-mode™
• 92-mΩ High-Side MOSFET
• 146μA Operating Quiescent Current and 2μA
Shutdown Current
• 100 kHz to 2.5 MHz Fixed Switching Frequency
• Synchronizes to External Clock
• Low Dropout at Light Loads with Integrated BOOT
MRecharge FET
• Adjustable UVLO Voltage and Hysteresis
• 0.8V 1% Internal Voltage Reference

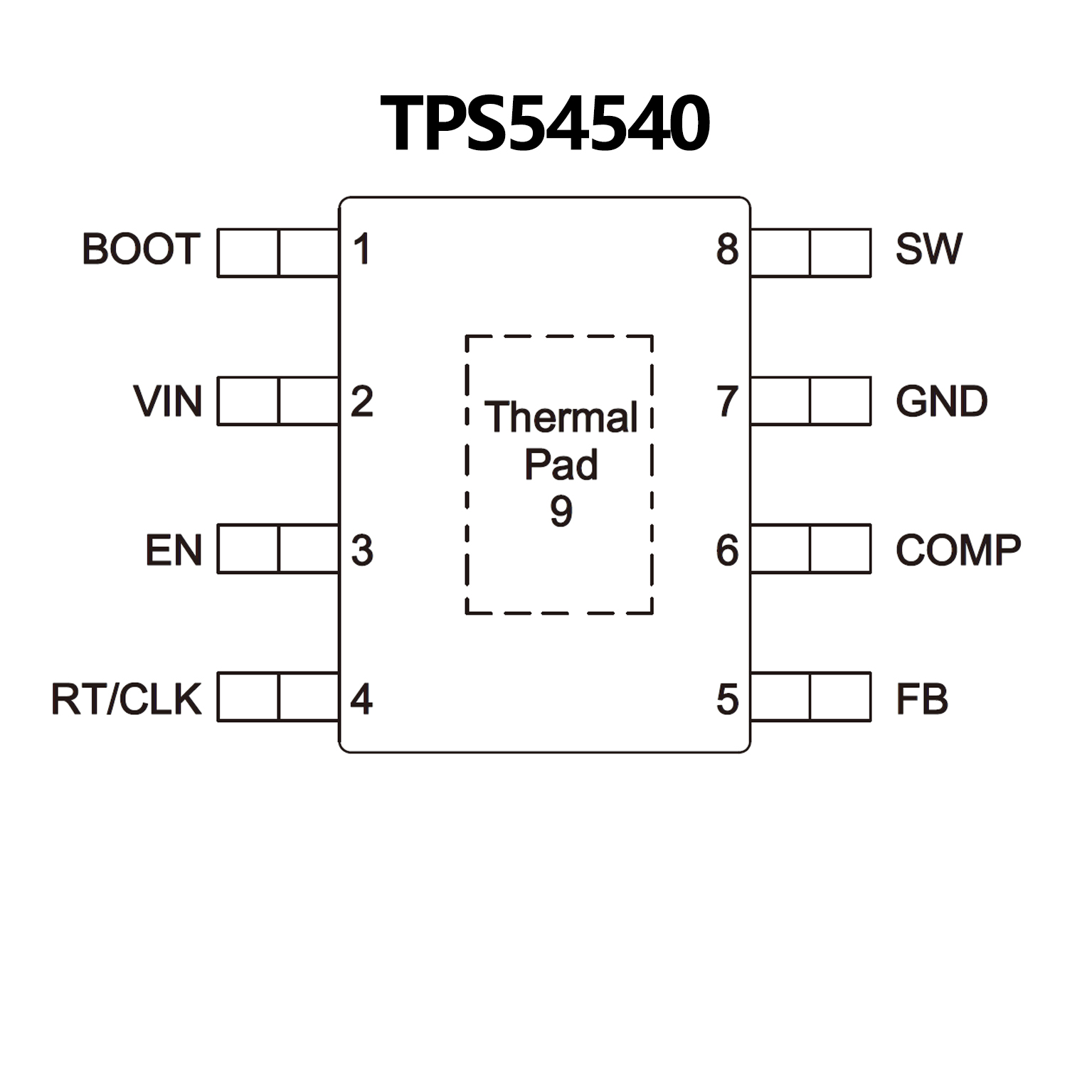

• 8-Pin HSOIC with PowerPAD™ Package
• –40°C to 150°C TJ Operating Range
