4.5V-60V Vin, 5A, High Efficiency Asynchronous Step-down DCDC Converter, SCT2653 Replace TPS54531.
FEATURES

• Wide Input Range: 4.5V-60V
• Up to 5A Continuous Output Current
• 0.8V ±1% Feedback Reference Voltage
• Integrated 80mΩ High-Side MOSFET
• Low Quiescent Current: 175uA
• Pulse Skipping Mode (PSM) in light load
• 130ns Minimum On-time
• Adjustable Soft-start Time
• Fixed Switching Frequency: 570KHz
• Precision Enable Threshold for Programmable
  Input Voltage Under-Voltage Lock Out Protection
  (UVLO) Threshold and Hysteresis
• Low Dropout Mode Operation
• Derivable Inverting Voltage Regulator
• Over-voltage and Over-Temperature Protection
• Available in an ESOP-8 Package

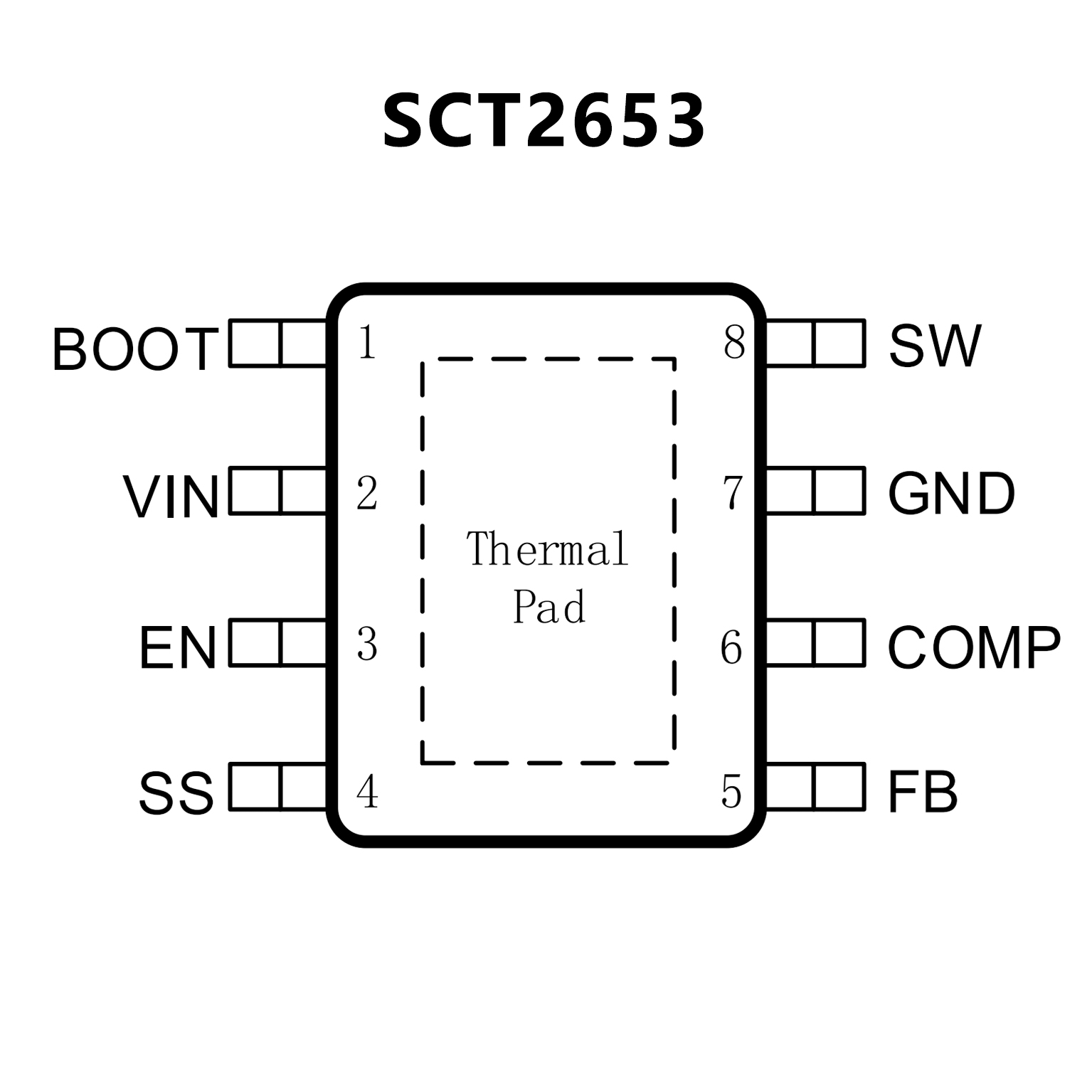

PIN CONFIGUTION
优势替代
TPS54531 TPS54531.pdf

No.14468

FEATURES

• 3.5V to 28V Input Voltage Range

• Adjustable Output Voltage Down to 0.8V

• Integrated 80 mΩ High Side MOSFET Supports

  up to 5A Continuous Output Current

• High Efficiency at Light Loads with a Pulse

  Skipping Eco-mode™

• Fixed 570kHz Switching Frequency

• Typical 1μA Shutdown Quiescent Current

• Adjustable Slow Start Limits Inrush Currents

• Programmable UVLO Threshold

• Overvoltage Transient Protection

• Cycle-by-Cycle Current Limit, Frequency Fold

  Back and Thermal Shutdown Protection

• Available in Easy-to-Use Thermally Enhanced

  SOIC8 PowerPADTM Package

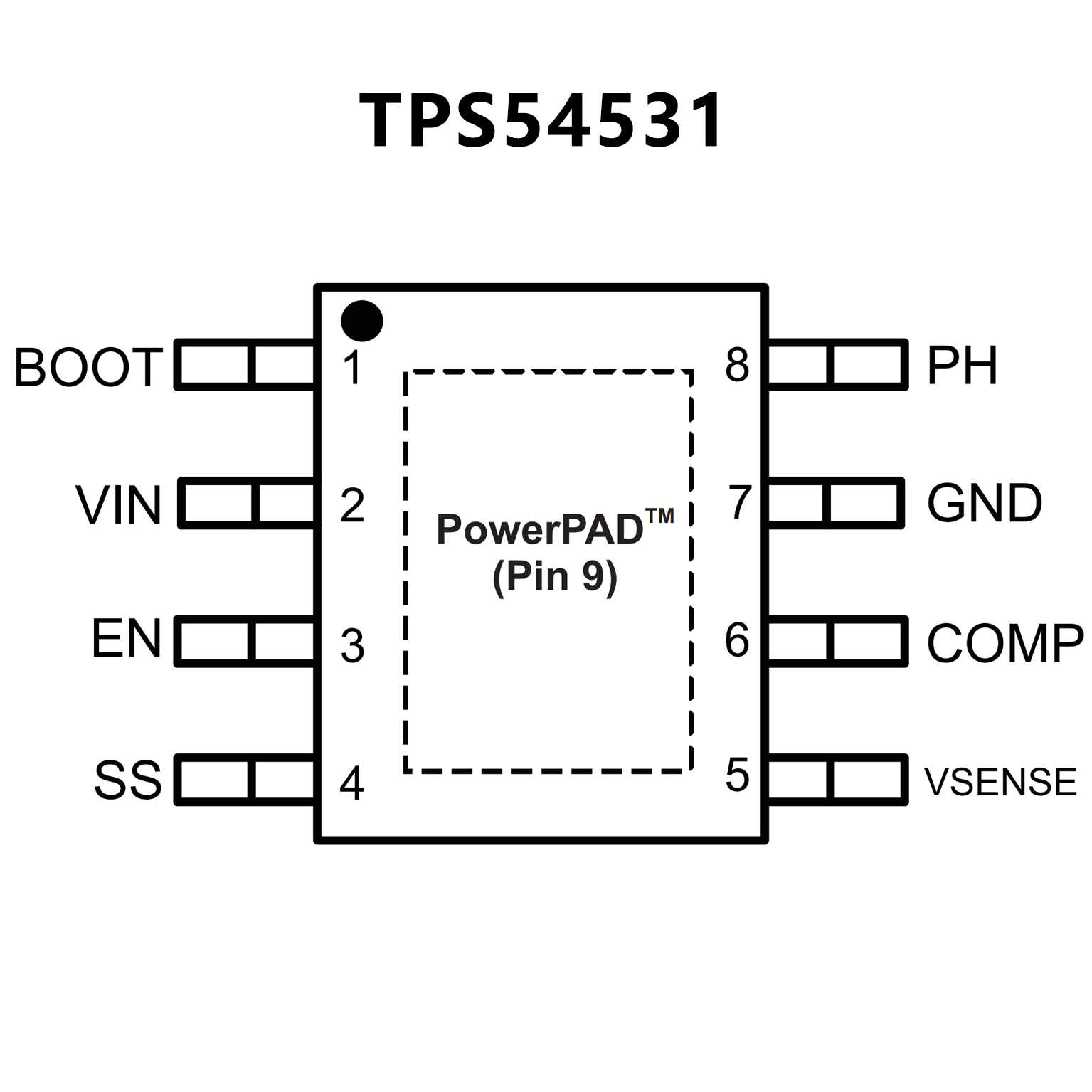

PIN CONFIGUTION
