100V Input, 0.5A Synchronous Buck DC/DC Converter With Ultra-low IQ, SCT2A12 Replace LM5163.
FEATURES

• Wide Input Range: 5.5V-100V
• Maximum Output Voltage: 30V
• 1A Continuous Output Current
• 1.8A Peak Current Limit when VIN <60V
• Integrated 970mΩ High-Side Power MOSFET
• 49uA Quiescent Current
• 1.2V Feedback Reference Voltage
• 3.5ms Internal Soft-start Time
• Fixed Switching Frequency at 390KHz
• COT Control Mode with Integrated Loop
  Compensation
• Precision Enable Threshold for Programmable
  Input Voltage Under-Voltage Lock Out Protection
  (UVLO) Threshold and Hysteresis
• Cycle-by-Cycle Current Limiting
• Over-Voltage Protection
• Over-Temperature Protection

• Available in an ESOP-8 Package

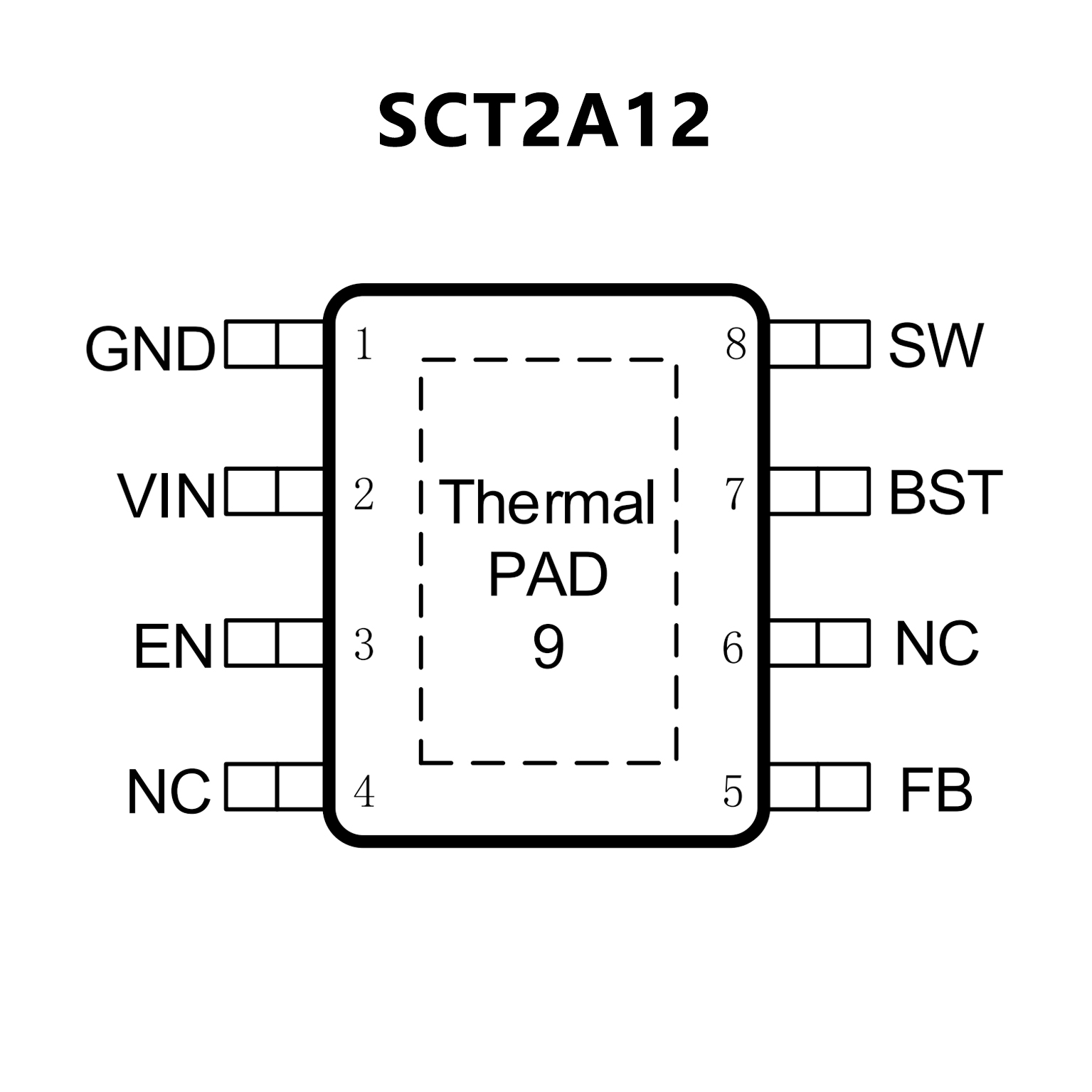

PIN CONFIGUTION
优势替代
LM5163 LM5163.pdf

No.14484

FEATURES

• Designed for reliable and rugged applications
  – Wide input voltage range of 6V to 100V
  – Junction temperature range: –40°C to +150°C
  – Fixed 3ms internal soft-start timer
  – Peak and valley current-limit protection
  – Input UVLO and thermal shutdown protection
• Optimized for ultra-low EMI requirements
  – Meets CISPR 25 class 5 standard
• Suited for scalable Industrial power supplies and
  battery packs
  – Low minimum on- and off-times of 50ns
  – Adjustable switching frequency up to 1MHz
  – Diode emulation for high light-load efficiency
  – 10.5µA no-load input quiescent current
  – 3µA shutdown quiescent current
• Integration reduces design size and cost
  – COT mode control architecture
  – Integrated 0.725Ω NFET buck switch
  – Integrated 0.34Ω NFET synchronous rectifier
    eliminates external Schottky diode
  – 1.2V internal voltage reference
  – No loop compensation components
  – Internal VCC bias regulator and boot diode
  – Open-drain power good indicator
  – 8-pin SOIC package with PowerPAD™
• Create a custom regulator design using
  WEBENCH® power designer

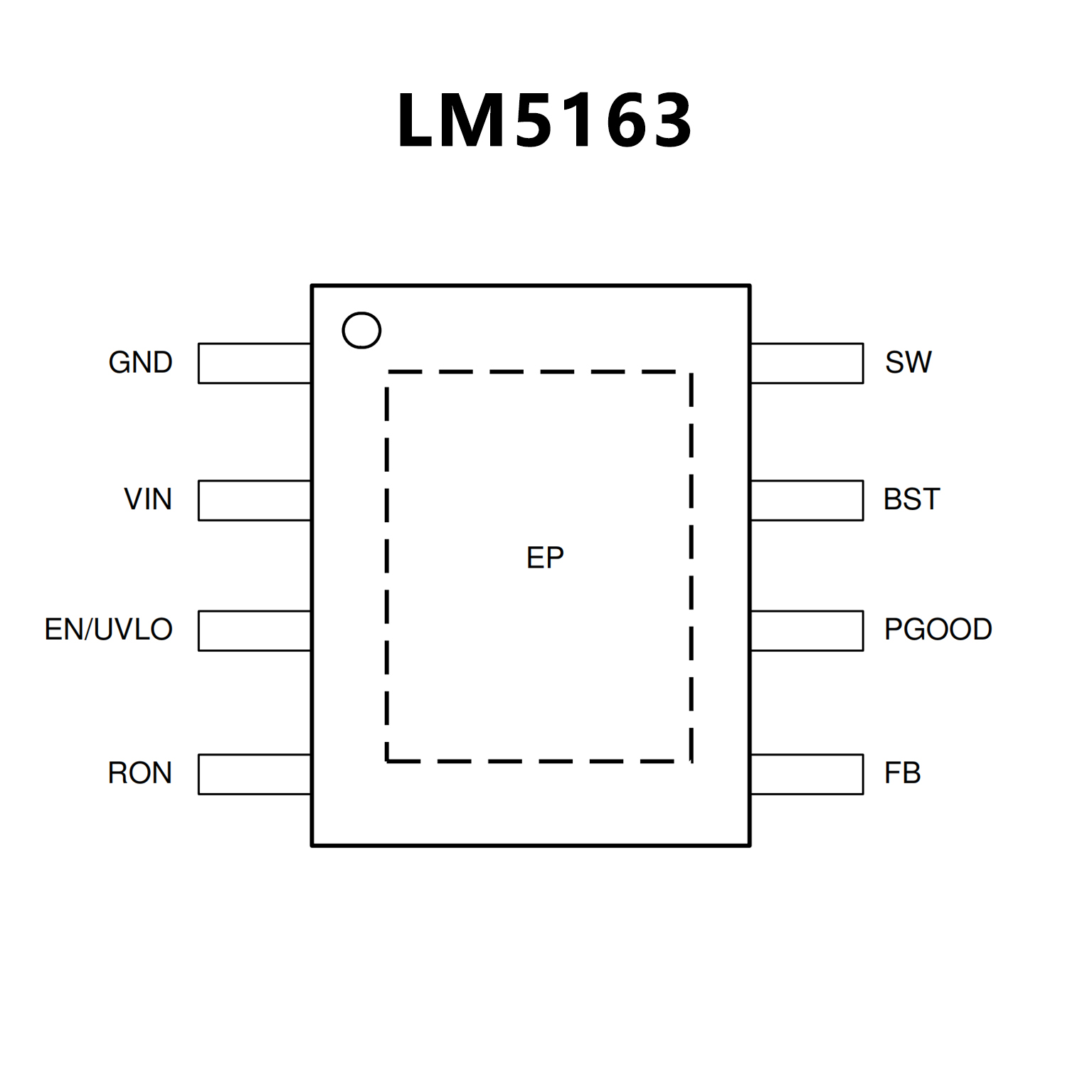

PIN CONFIGUTION
