• Wide Input Range: 4.5V-100V

• 1A Continuous Output Current

• Integrated 530mΩ High-Side and 220mΩ Low-

  Side Power MOSFETs

• 150uA Quiescent Current

• 1.2V ±1% Feedback Reference Voltage at Room

  Temperature

• 4.3ms Internal Soft-start Time

• Programmable Switching Frequency Range

  100KHz ~ 600KHz

• COT Control Mode

• PFM operation mode at light load

• Precision Enable Threshold for Programmable

  Input UVLO Threshold and Hysteresis

• Cycle-by-Cycle Current Limiting

• Over-Voltage Protection

• Over-Temperature Protection

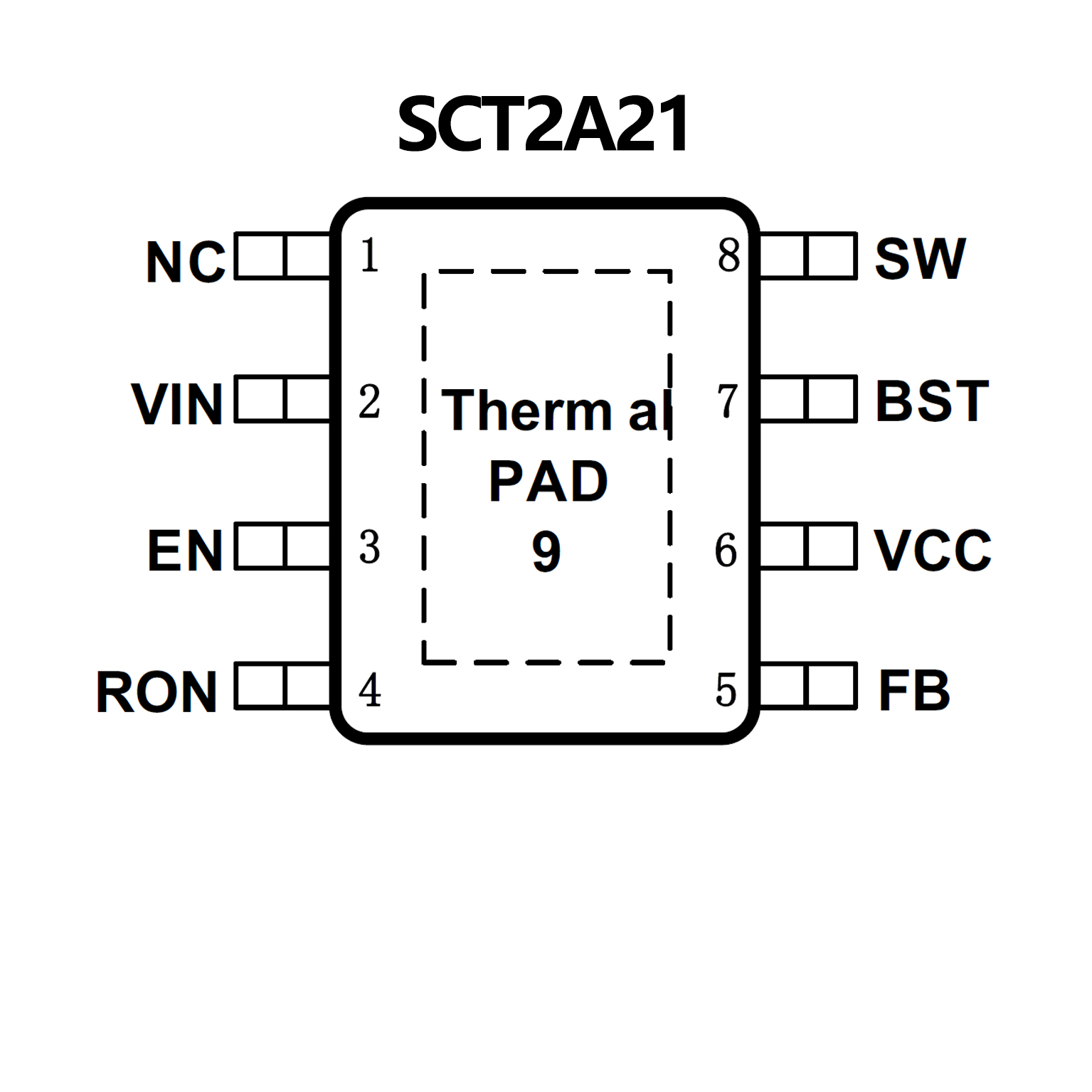

• Available in an ESOP-8 Package
