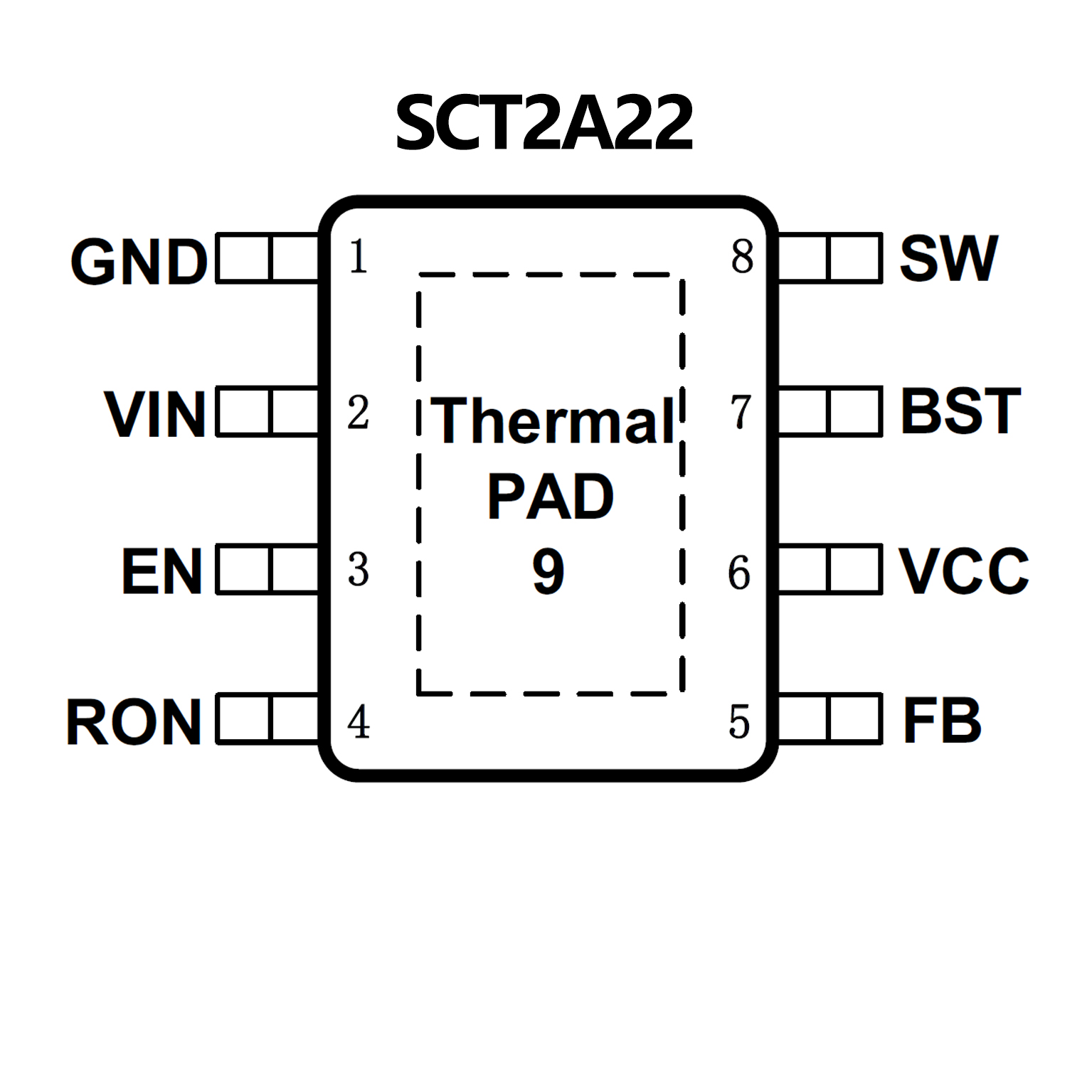

SCT2A22.pdf• Wide Input Range: 4.5V-100V
• 1A Continuous Output Current
• Integrated 530mΩ High-Side and 220mΩ Low-
Side Power MOSFETs
• 1.2V ±1% Feedback Reference Voltage at Room
Temperature
• 4.3ms Internal Soft-start Time
• Programmable Switching Frequency up to
600KHz
• COT Control Mode
• Forced PWM mode support Isolation Buck
Topology
• Precision Enable Threshold for Programmable
Input UVLO Threshold and Hysteresis
• Cycle-by-Cycle Current Limiting
• Over-Voltage Protection
• Over-Temperature Protection
• Available in an ESOP-8 Package

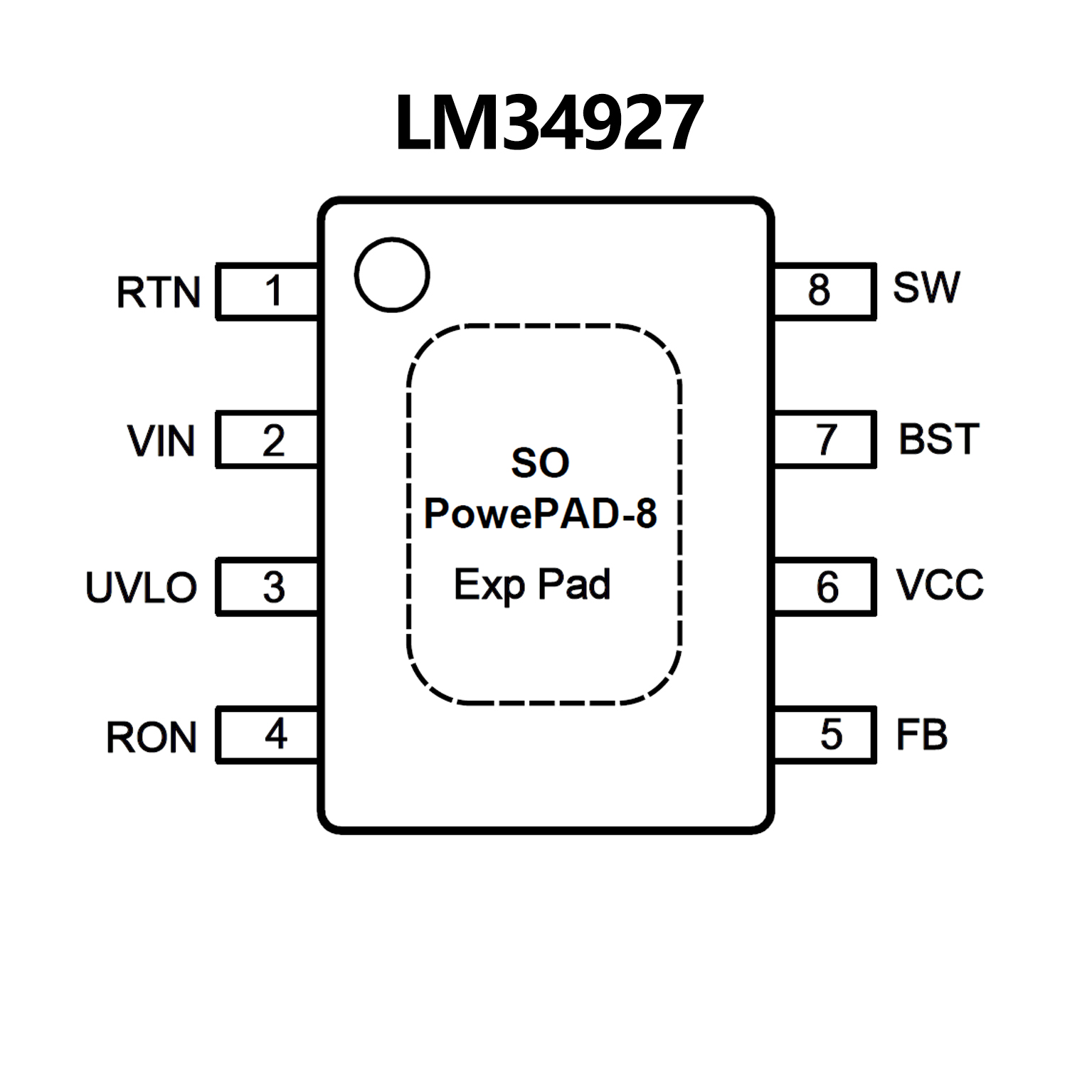

• Wide 7.5-V to 100-V Input Range
• Integrated 600-mA High-Side
and Low-Side Switches
• No Schottky Required
• Constant On-Time Control
• No Loop Compensation Required
• Ultra-Fast Transient Response
• Nearly Constant Operating Frequency
• Intelligent Peak Current Limit
• Adjustable Output Voltage From 1.225 V
• Precision 2% Feedback Reference
• Frequency Adjustable to 1 MHz
• Adjustable Undervoltage Lockout (UVLO)
• Remote Shutdown
• Thermal Shutdown
• Packages:
8-pin WSON
8-pin SO PowerPAD™
