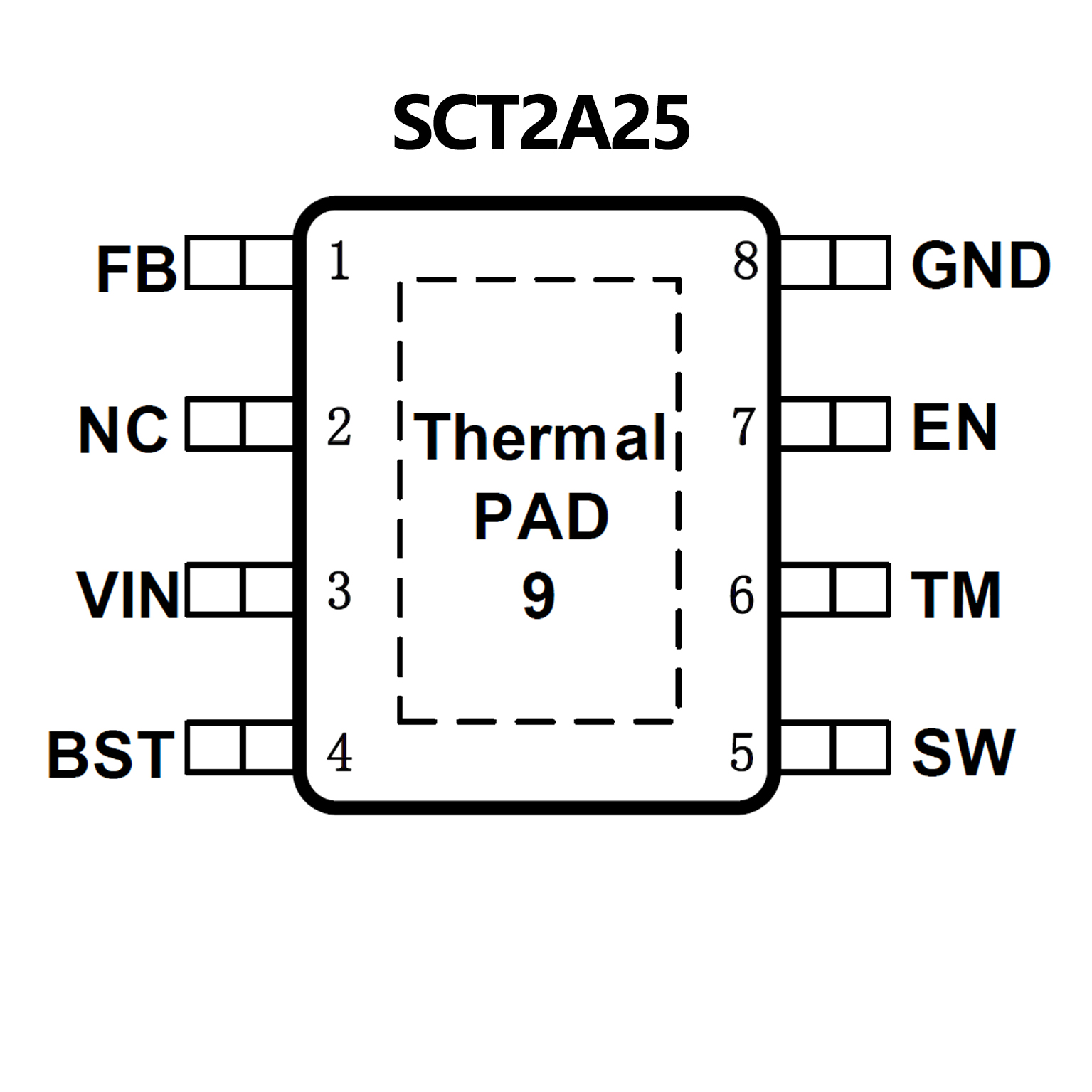

SCT2A25.pdf• Wide Input Range: 5.5V-100V
• Maximum Output Voltage: 30V
• 2A Continuous Output Current
• 4A Peak Current Limit
• Integrated 500mΩ High-Side Power MOSFETs
• 140uA Quiescent Current
• 1.2V ±2% Feedback Reference Voltage
• 4ms Internal Soft-start Time
• Fixed Switching Frequency at 300KHz
• COT Control Mode with Integrated Loop Compensation
• Precision Enable Threshold for Programmable Input
Voltage Under-voltage Lock Out Protection (UVLO)
Threshold and Hysteresis
• Cycle-by-Cycle Current Limiting
• Over-Voltage Protection
• Over-Temperature Protection
• Wide 7.5-V to 100-V Input Range
• Integrated 600-mA High-Side
and Low-Side Switches
• No Schottky Required
• Constant On-Time Control
• No Loop Compensation Required
• Ultra-Fast Transient Response
• Nearly Constant Operating Frequency
• Intelligent Peak Current Limit
• Adjustable Output Voltage From 1.225 V
• Precision 2% Feedback Reference
• Frequency Adjustable to 1 MHz
• Adjustable Undervoltage Lockout (UVLO)
• Remote Shutdown
• Thermal Shutdown

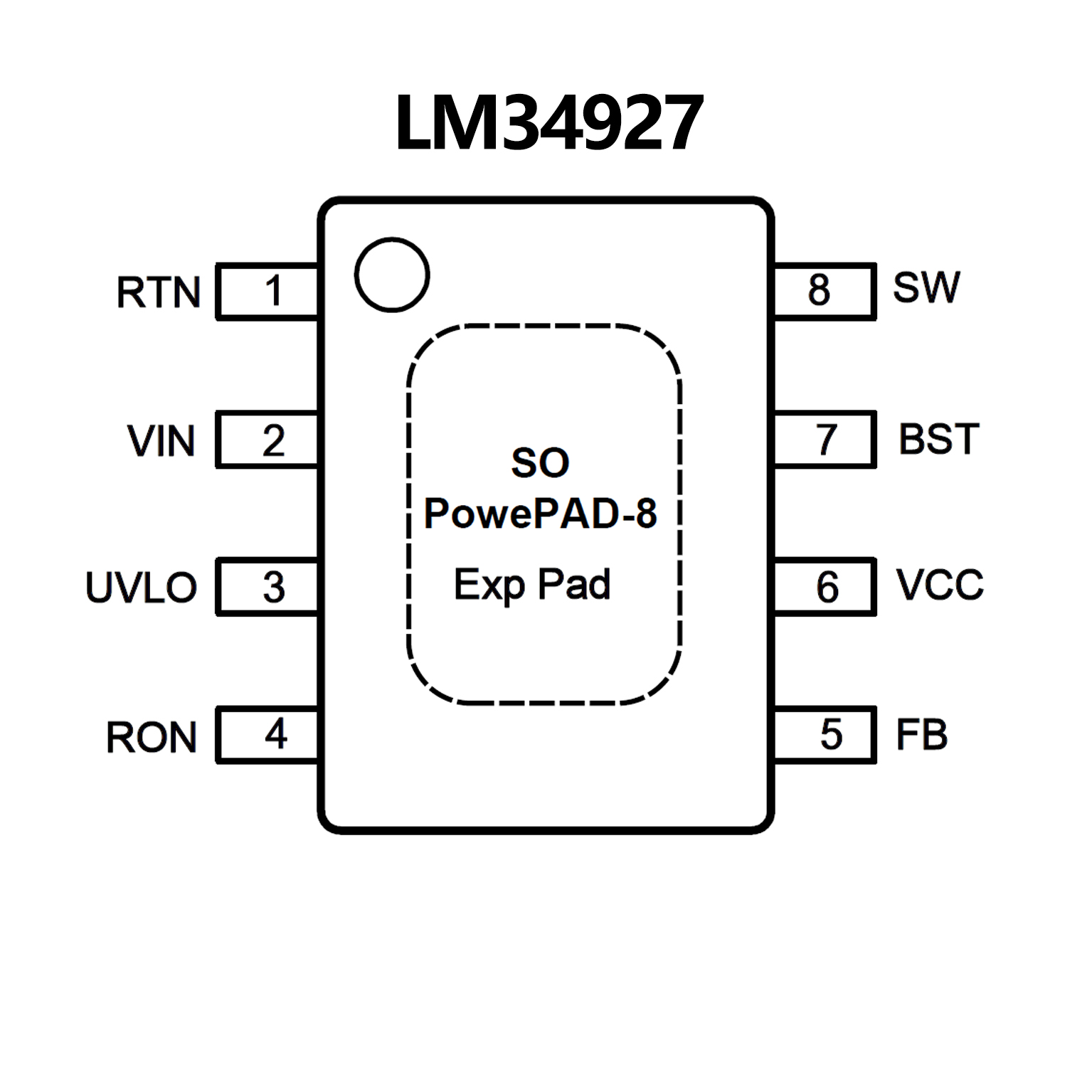

• Packages:
8-pin WSON
8-pin SO PowerPAD™
