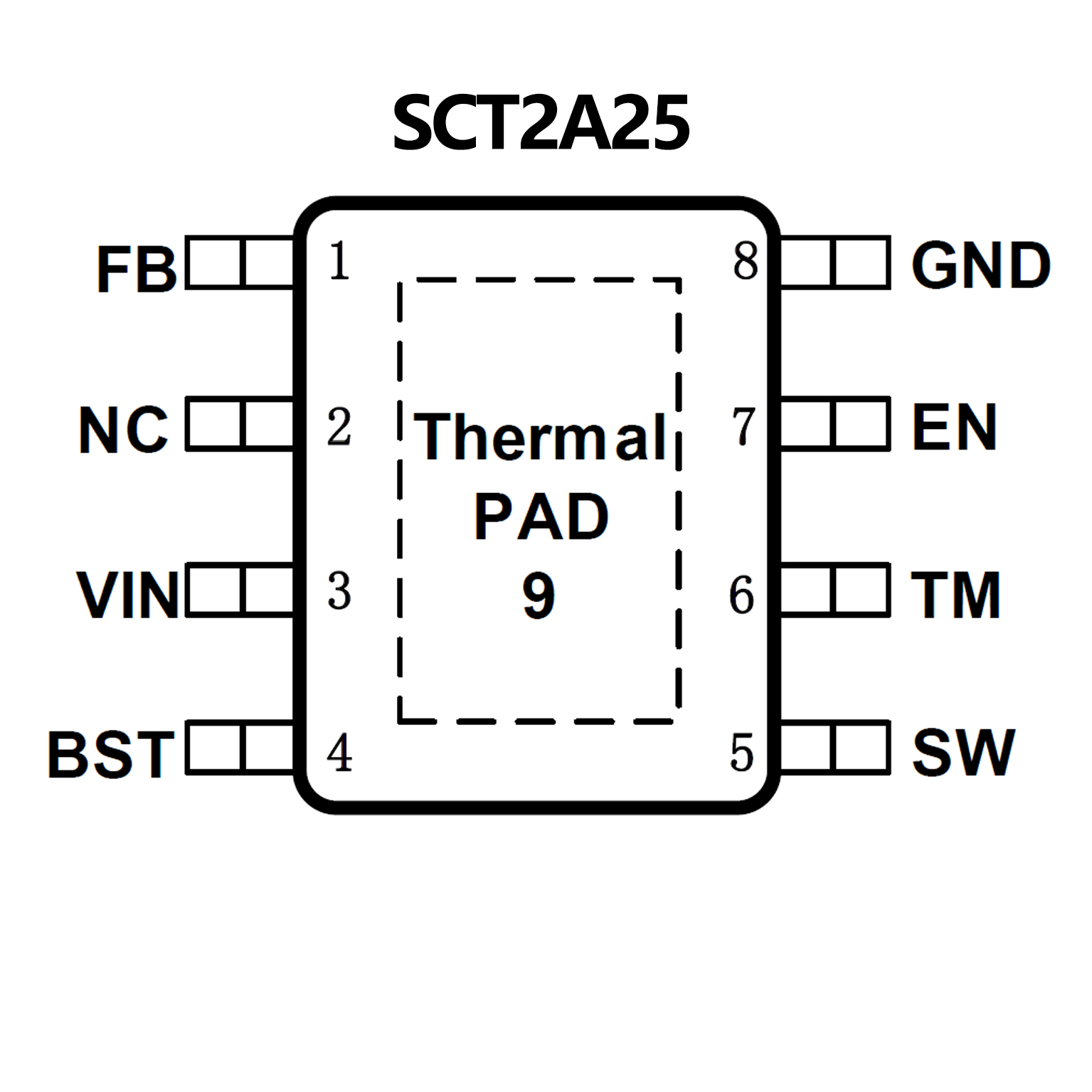

SCT2A25.pdf• Wide Input Range: 5.5V-100V
• Maximum Output Voltage: 30V
• 2A Continuous Output Current
• 4A Peak Current Limit
• Integrated 500mΩ High-Side Power MOSFETs
• 140uA Quiescent Current
• 1.2V ±2% Feedback Reference Voltage
• 4ms Internal Soft-start Time
• Fixed Switching Frequency at 300KHz
• COT Control Mode with Integrated Loop Compensation
• Precision Enable Threshold for Programmable Input
Voltage Under-voltage Lock Out Protection (UVLO)
Threshold and Hysteresis
• Cycle-by-Cycle Current Limiting
• Over-Voltage Protection
• Over-Temperature Protection

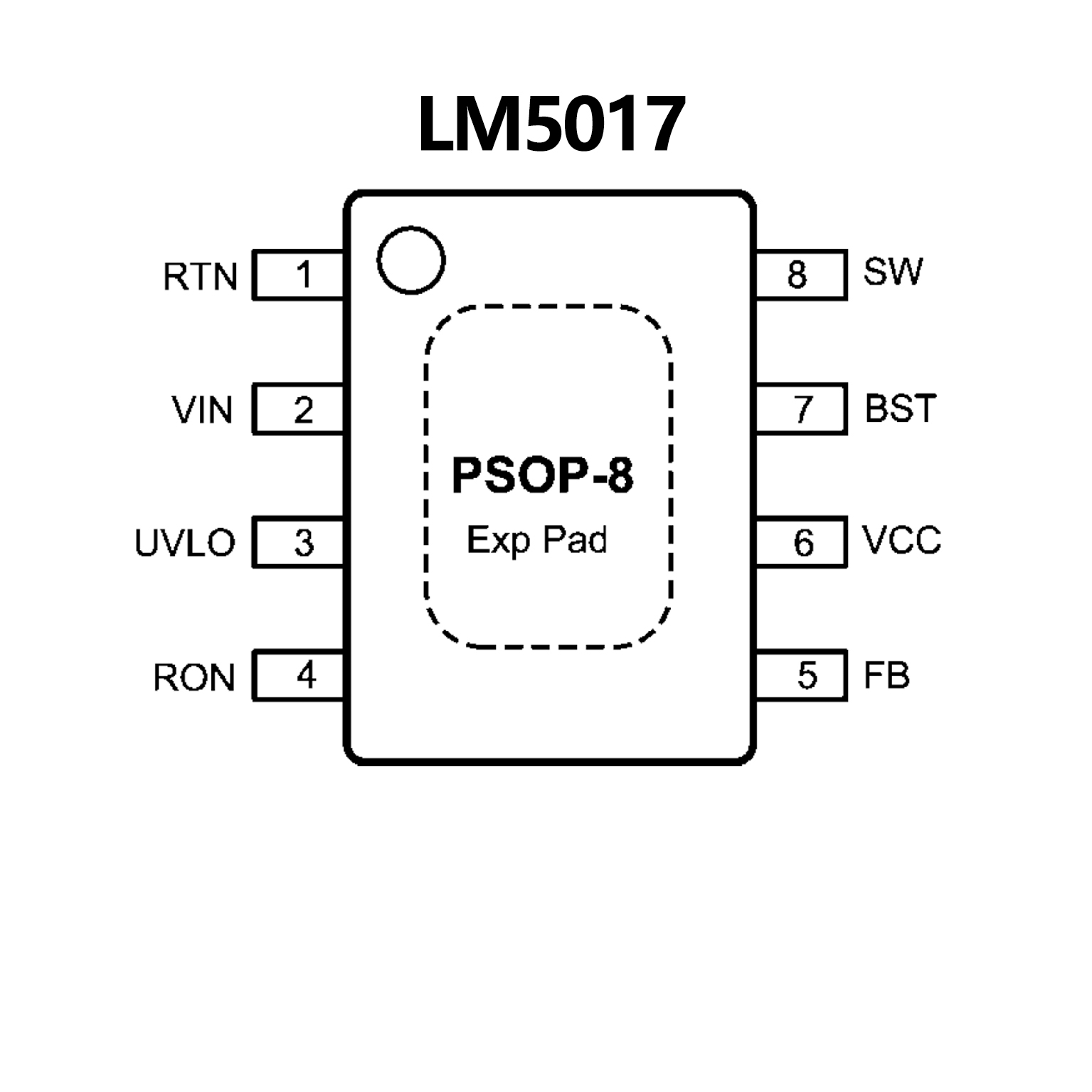

• Wide 9V to 100V Input Range
• Integrated 100V, High and Low Side Switches
• No Schottky Required
• Constant On-time Control
• No Loop Compensation Required
• Ultra-Fast Transient Response
• Nearly Constant Operating Frequency
• Intelligent Peak Current Limit
• Adjustable Output Voltage from 1.225V
• Precision 2% Feedback Reference
• Frequency Adjustable to 1MHz
• Adjustable Undervoltage Lockout (UVLO)
• Remote Shutdown
• Thermal Shutdown
