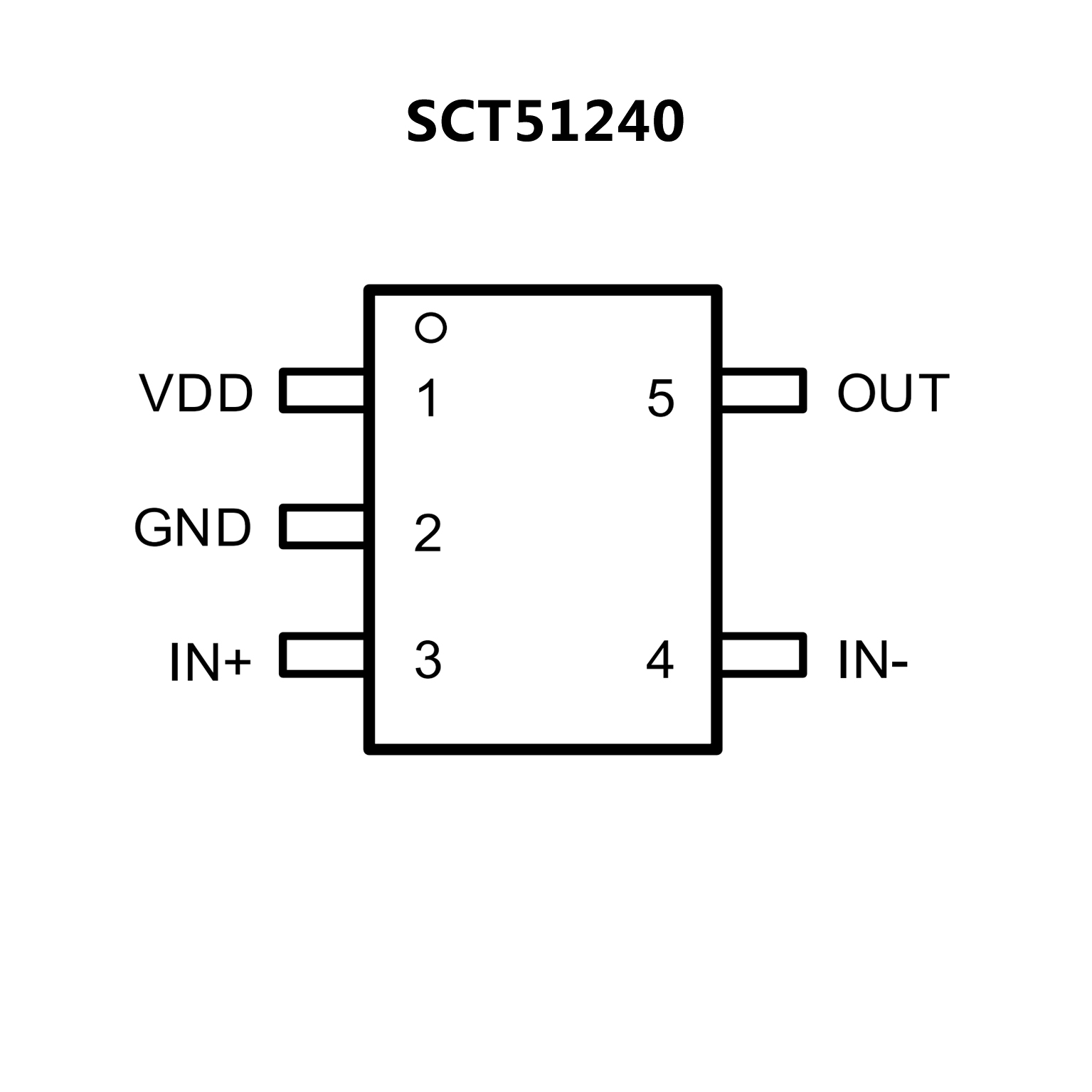

SCT51240.pdf• Wide Supply Voltage Range: 4.5V - 24V
• 4A Peak Source Current and 4A Peak Sink
Current
• Dual Input Configuration: Non-Inverting (IN+)
or Inverting (IN-) Input
• Negative Input Voltage Capability: Down to -5V
• TTL Input-Logic Threshold
• Propagation Delay: 12ns
• Fast Rising and Falling Time: 9ns and 6ns
• Low Quiescent Current: 38uA
• Under Voltage Lock Out Protection of Supply
Voltage
• Output Low When Input Floating
• Thermal Shutdown Protection: 170°C
• Available in TSOT23-5L Package

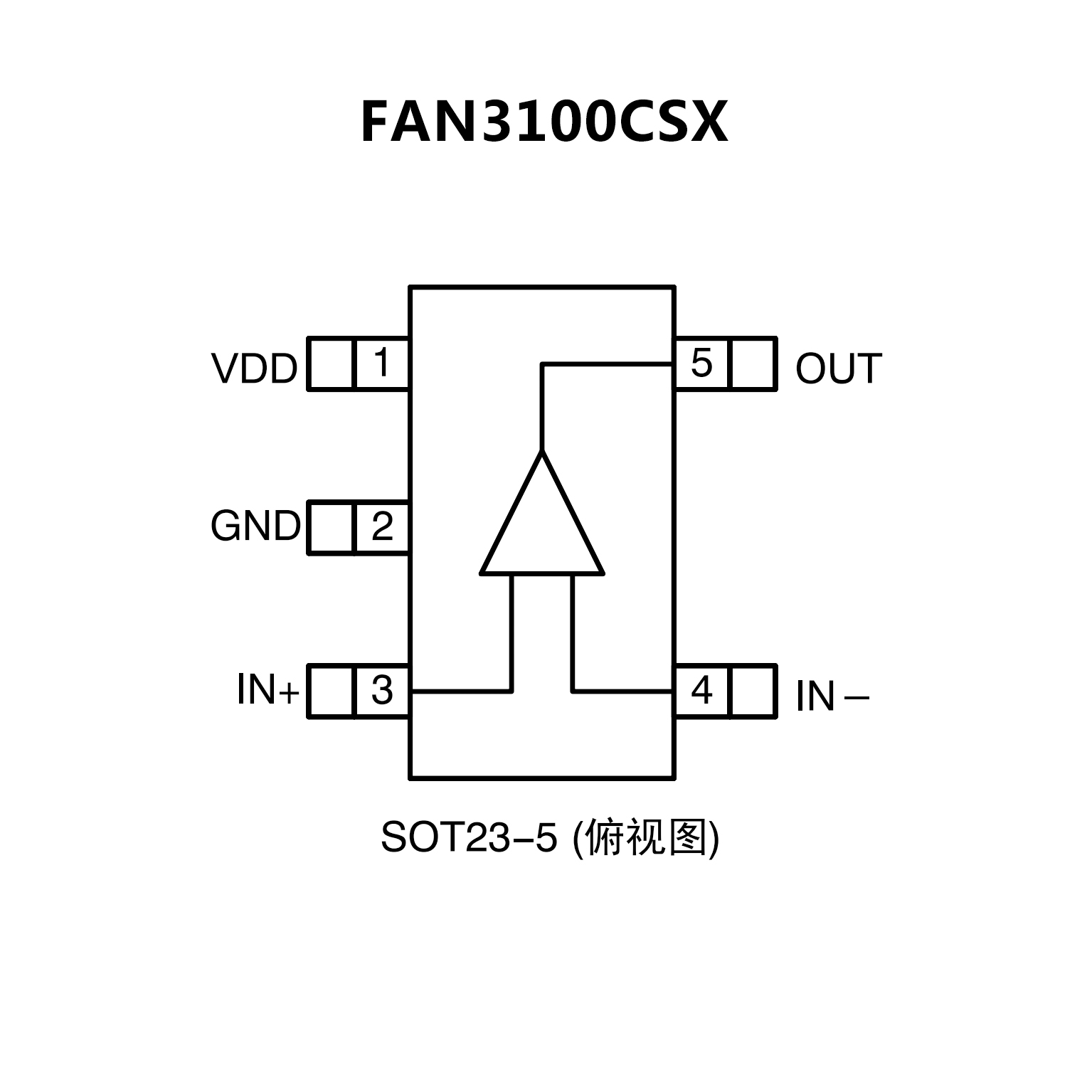

• 3A Peak Sink/Source at VDD = 12V
• 4.5 to 18V Operating Range
• 2.5A Sink / 1.8A Source at VOUT = 6V
• Dual-Logic Inputs Allow Configuration as
Non-Inverting or Inverting with Enable Function
• Internal Resistors Turn Driver Off If No Inputs
• 13ns Typical Rise Time and 9ns Typical Fall-Time
with 1nF Load
• Choice of TTL or CMOS Input Thresholds
• MillerDrive™ Technology
• Typical Propagation Delay Time Under 20ns with
Input Falling or Rising
• 6-Lead 2x2mm MLP or 5-Pin SOT23 Packages
• Rated from –40°C to 125°C Ambient
