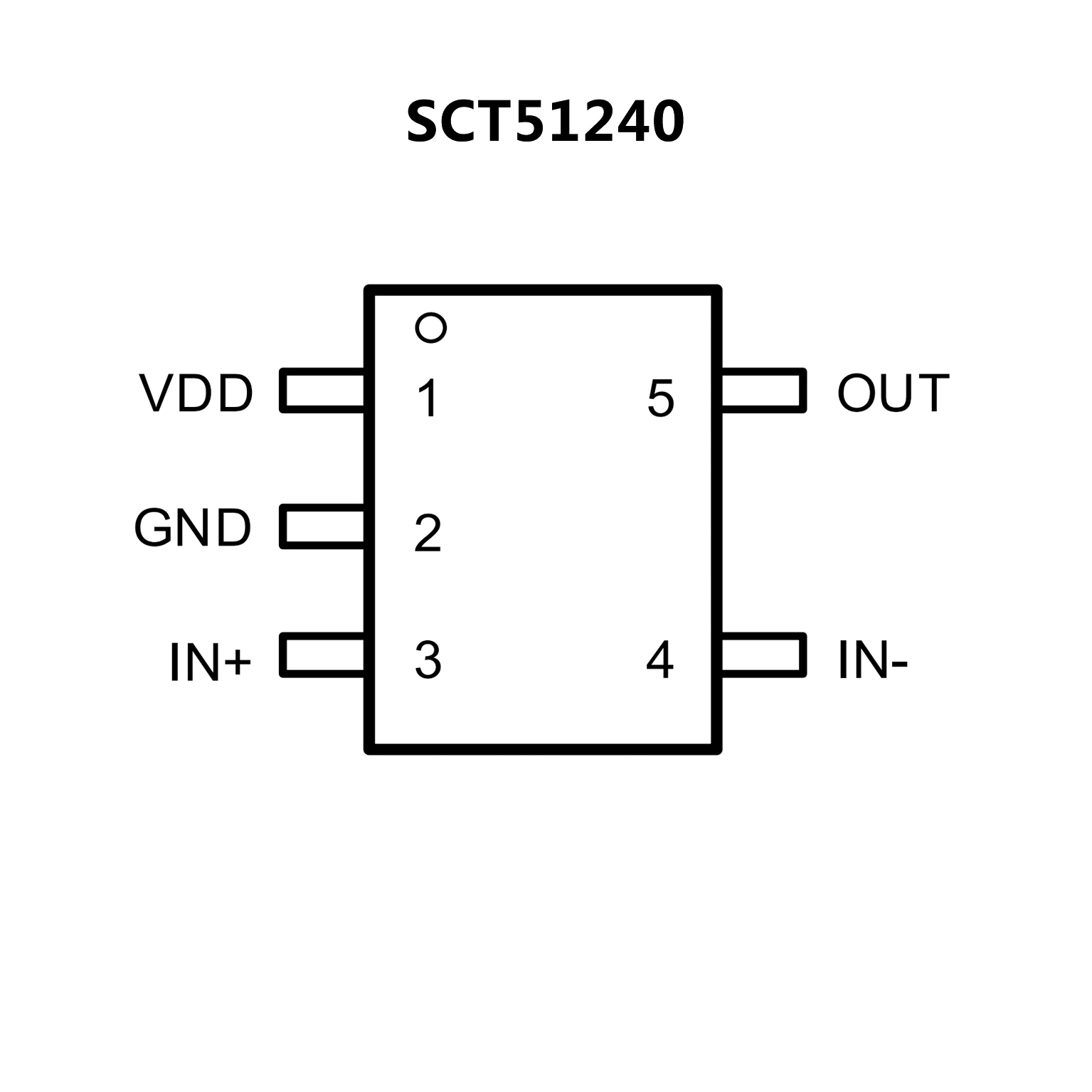

SCT51240.pdf• Wide Supply Voltage Range: 4.5V - 24V
• 4A Peak Source Current and 4A Peak Sink
Current
• Dual Input Configuration: Non-Inverting (IN+)
or Inverting (IN-) Input
• Negative Input Voltage Capability: Down to -5V
• TTL Input-Logic Threshold
• Propagation Delay: 12ns
• Fast Rising and Falling Time: 9ns and 6ns
• Low Quiescent Current: 38uA
• Under Voltage Lock Out Protection of Supply
Voltage
• Output Low When Input Floating
• Thermal Shutdown Protection: 170°C
• Available in TSOT23-5L Package
• 1.4 A Peak Sink / Source at VDD = 12 V
• 1.1 A Sink / 0.9 A Source at VOUT = 6 V
• 4.5 to 18 V Operating Range
• FAN3111C Compatible with FAN3100C Footprint
• Two Input Configurations:
• Dual CMOS Inputs Allow Configuration as
Non-Inverting or Inverting with Enable Function
• Single Non-Inverting, Low-Voltage Input for
Compatibility with Low-Voltage Controllers
• Small Footprint Facilitates Distributed Drivers for
Parallel Power Devices
• 15 ns Typical Delay Times
• 9 ns Typical Rise / 8 ns Typical Fall times with
470 pF Load
• 5-Pin SOT23 Package
• Rated from –40°C to 125°C Ambient
