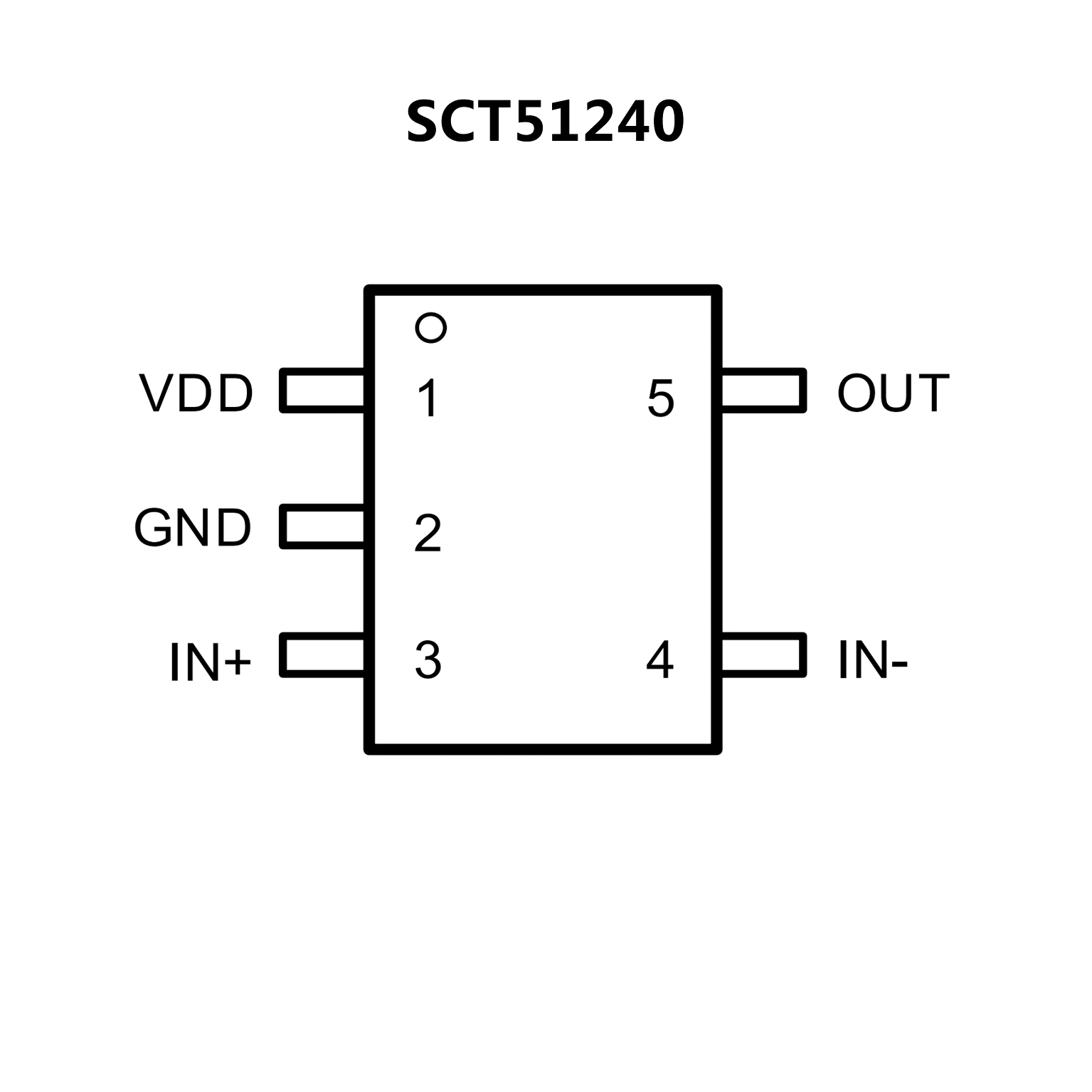

SCT51240.pdf• Wide Supply Voltage Range: 4.5V - 24V
• 4A Peak Source Current and 4A Peak Sink
Current
• Dual Input Configuration: Non-Inverting (IN+)
or Inverting (IN-) Input
• Negative Input Voltage Capability: Down to -5V
• TTL Input-Logic Threshold
• Propagation Delay: 12ns
• Fast Rising and Falling Time: 9ns and 6ns
• Low Quiescent Current: 38uA
• Under Voltage Lock Out Protection of Supply
Voltage
• Output Low When Input Floating
• Thermal Shutdown Protection: 170°C
• Available in TSOT23-5L Package
• Low-side MOSFET driver
• 1 A sink and 0.8 A source capability
• External reference for input threshold
• Wide supply voltage range (10 V ÷ 18 V)
• Input and output pull-down resistors
• Short propagation delays
• Input and output UVLO
• Wide operating temperature range:-40°C to 125°C
• SOT23-5 package
