SCT51240.pdf• Wide Supply Voltage Range: 4.5V - 24V
• 4A Peak Source Current and 4A Peak Sink
Current
• Dual Input Configuration: Non-Inverting (IN+)
or Inverting (IN-) Input
• Negative Input Voltage Capability: Down to -5V
• TTL Input-Logic Threshold
• Propagation Delay: 12ns
• Fast Rising and Falling Time: 9ns and 6ns
• Low Quiescent Current: 38uA
• Under Voltage Lock Out Protection of Supply
Voltage
• Output Low When Input Floating
• Thermal Shutdown Protection: 170°C

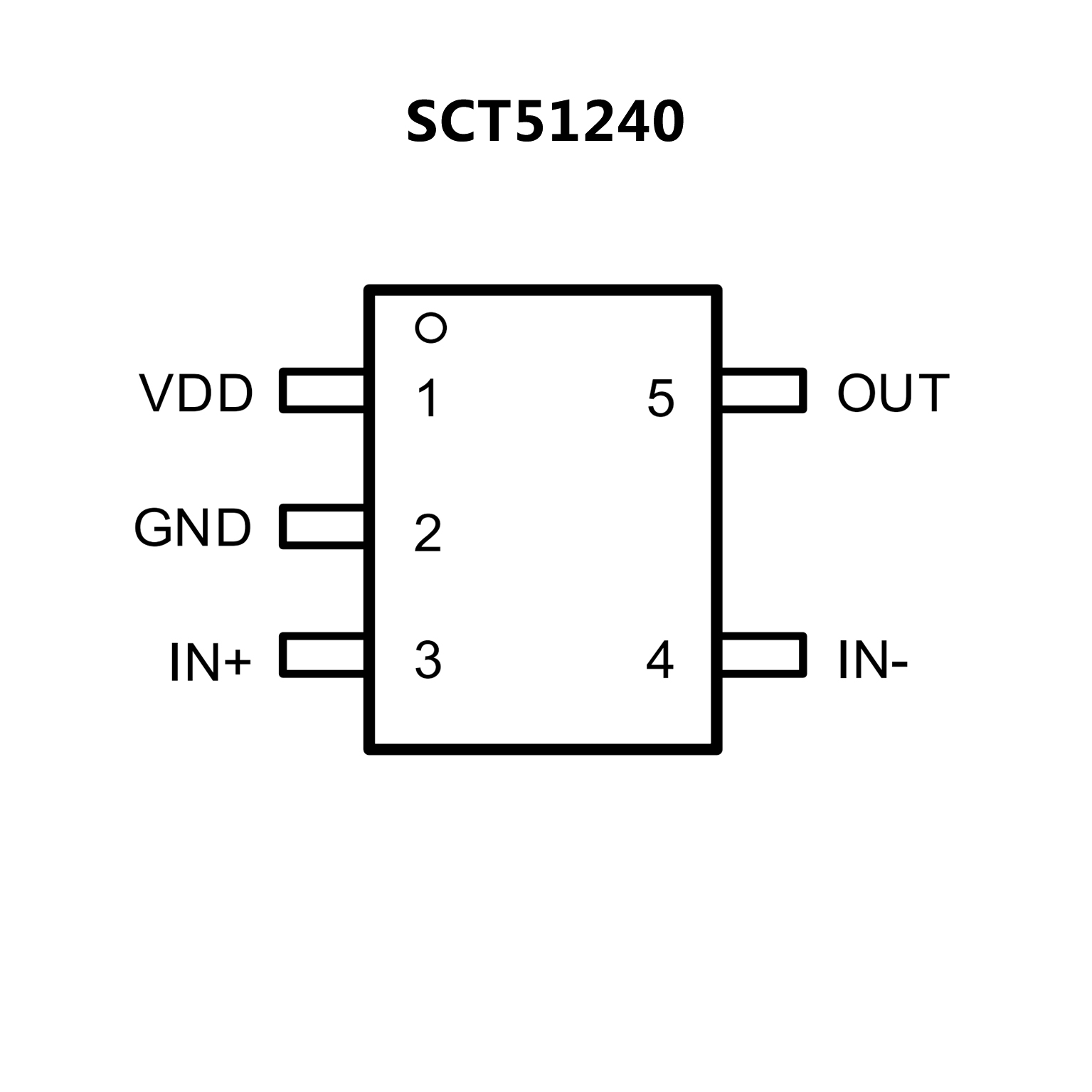

• Available in TSOT23-5L Package
• Qualified for Automotive Applications
• AEC-Q100 Qualified With the Following Results:
- Device Automotive Qualified Grade 1: –40°C to
125°C Ambient Operating Temperature Range
- Device HBM ESD Classification Level 2
- Device CDM ESD Classification Level C6
• Low-Cost Gate-Driver Device Offering Superior
Replacement of NPN and PNP Discrete Solutions
• 4-A Peak-Source and Sink Symmetrical Drive
• Ability to Handle Negative Voltages (–5 V) at Inputs
• Fast Propagation Delays (13-ns typical)
• Fast Rise and Fall Times (9-ns and 7-ns typical)
• 4.5 to 18-V Single-Supply Range
• Outputs Held Low During VDD UVLO (ensures
glitch-free operation at power up and power down)
• TTL and CMOS Compatible Input-Logic Threshold
(independent of supply voltage)
• Hysteretic-Logic Thresholds for High-Noise Immunity
• Dual Input Design (choice of an inverting (IN– pin)
or non-inverting (IN+ pin) driver configuration)
– Unused Input Pin can be Used for Enable or
Disable Function
• Output Held Low when Input Pins are Floating
• Input Pin Absolute Maximum Voltage Levels Not
Restricted by VDD Pin Bias Supply Voltage
• Operating Temperature Range of –40°C to 140°C

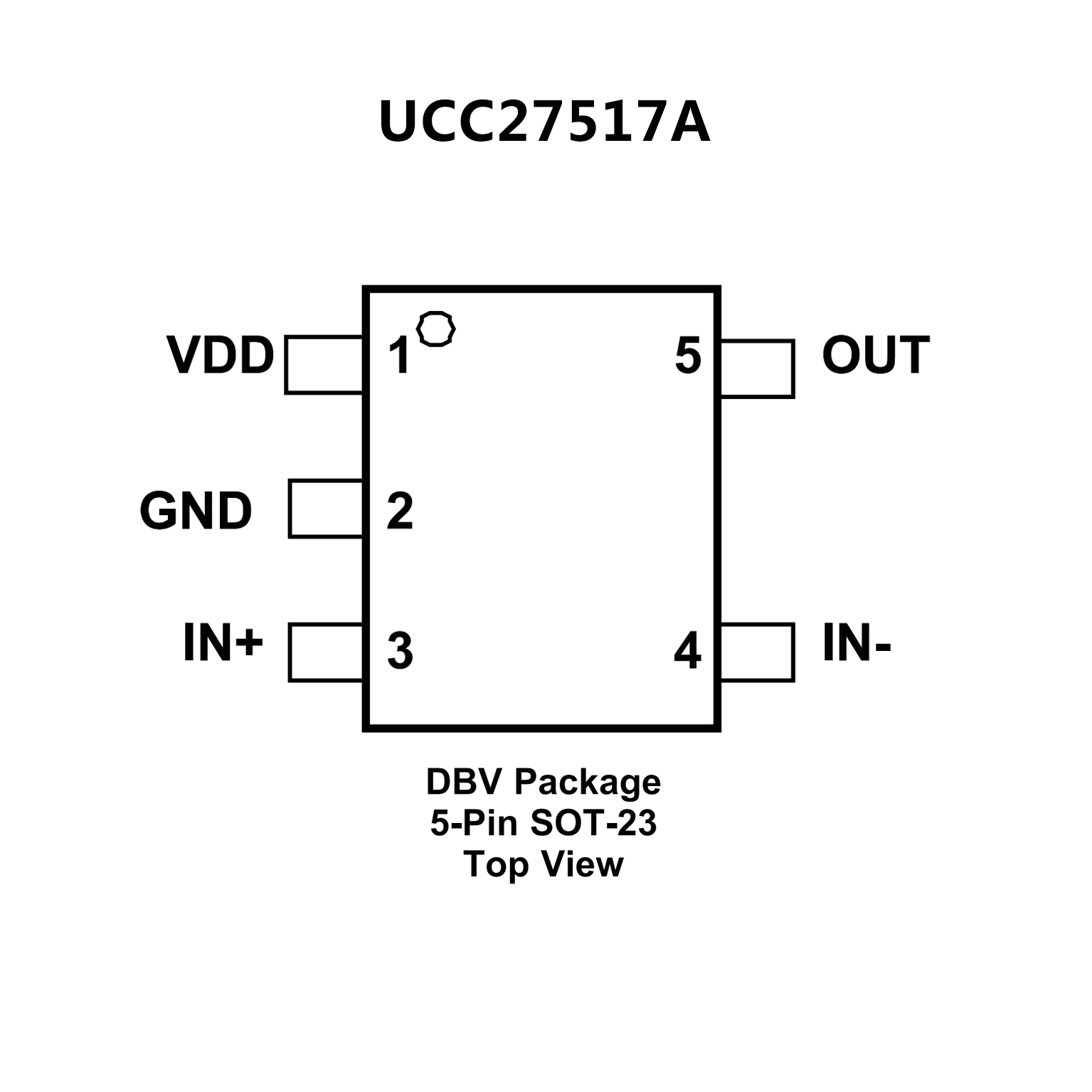

• 5-Pin DBV (SOT-23) Package Option
