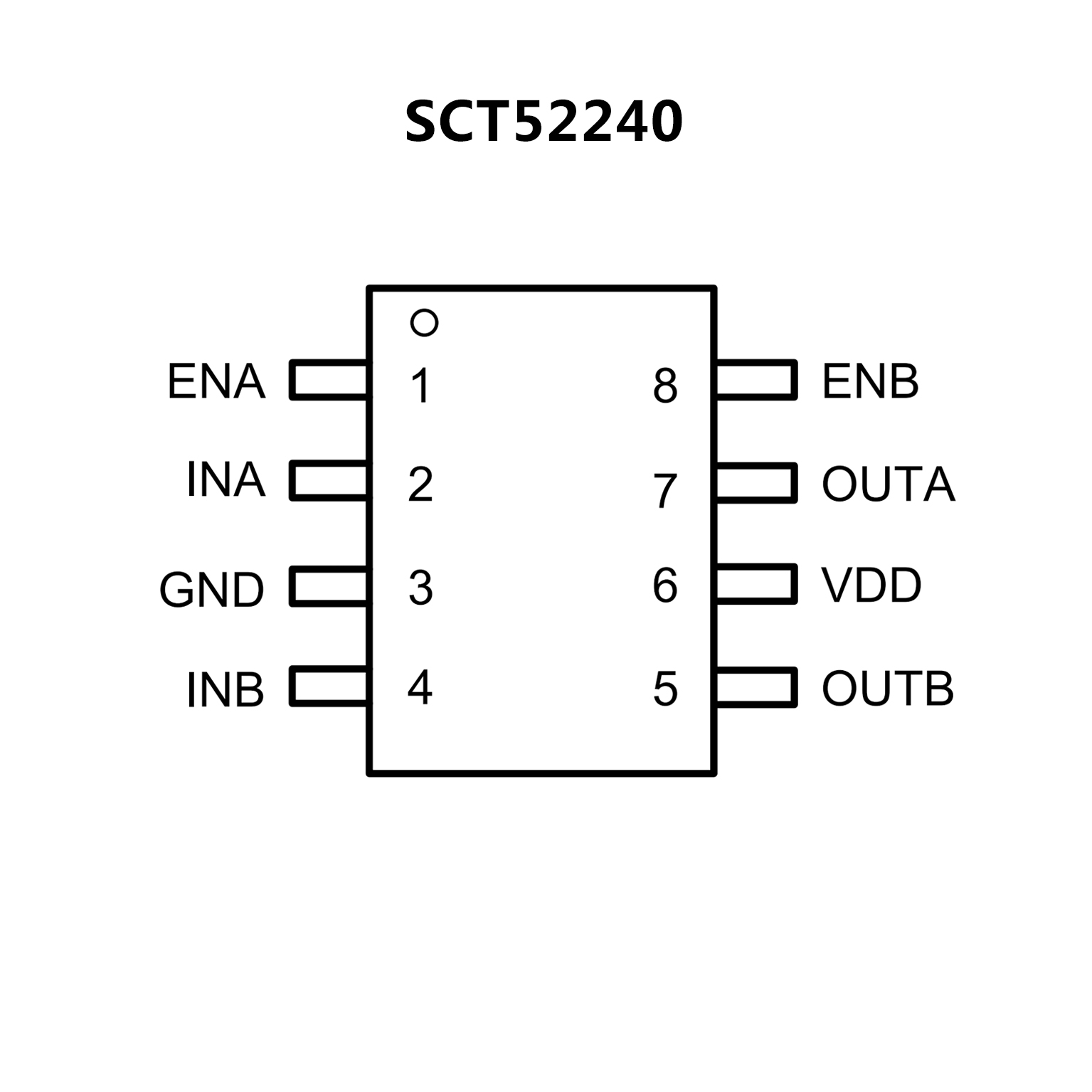

SCT52240.pdf• Wide Supply Voltage Range: 4.5V - 24V
• 4A Peak Source Current and 4A Peak Sink
Current
• Stackable Output for Higher Driving Capability
• Negative Input Voltage Capability: Down to -5V
• TTL Compatible Input Logic Threshold
• Propagation Delay: 13ns
• Typical Rising and Falling Times: 8ns
• Typical Delay Matching: 1ns
• Low Quiescent Current: 55uA
• Output Low When Input Floating
• Independent Enable Logic for Each Channel
• Thermal Shutdown Protection: 170°C
• Available in SOP-8 and eMSOP-8 Package

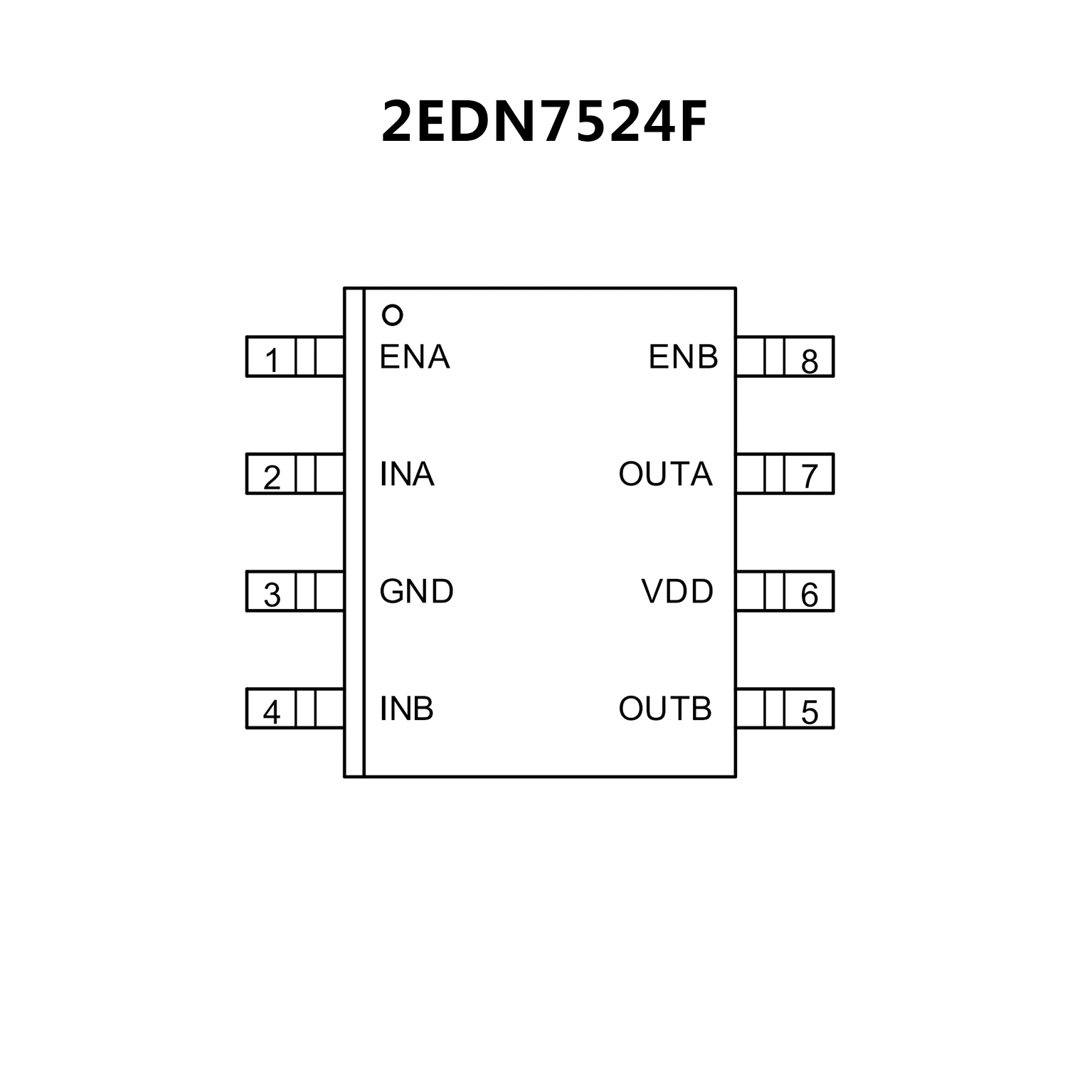

Fast, precise, strong and compatible
• Highly efficient SMPS enabled by 5 ns fast slew rates
and 17 ns propagation delay precision for fast MOSFET
and GaN switching
• 1 ns channel-to-channel propagation delay accuracy
enables safe use of two channels in parallel
• Two independent 5 A channels enable numerous
deployment options
• Industry standard packages and pinout ease system-
design upgrades
The new Reference in Ruggedness
• 4.2 V and 8 V UVLO (Under Voltage Lock Out) options
ensure instant MOSFET protection under abnormal
conditions
• -10 V control and enable input robustness delivers crucial
safety margin when driving pulse-transformers or driving
MOSFETs in through hole packaging
• 5 A reverse current robustness eliminates the need for
output protection circuitry.
