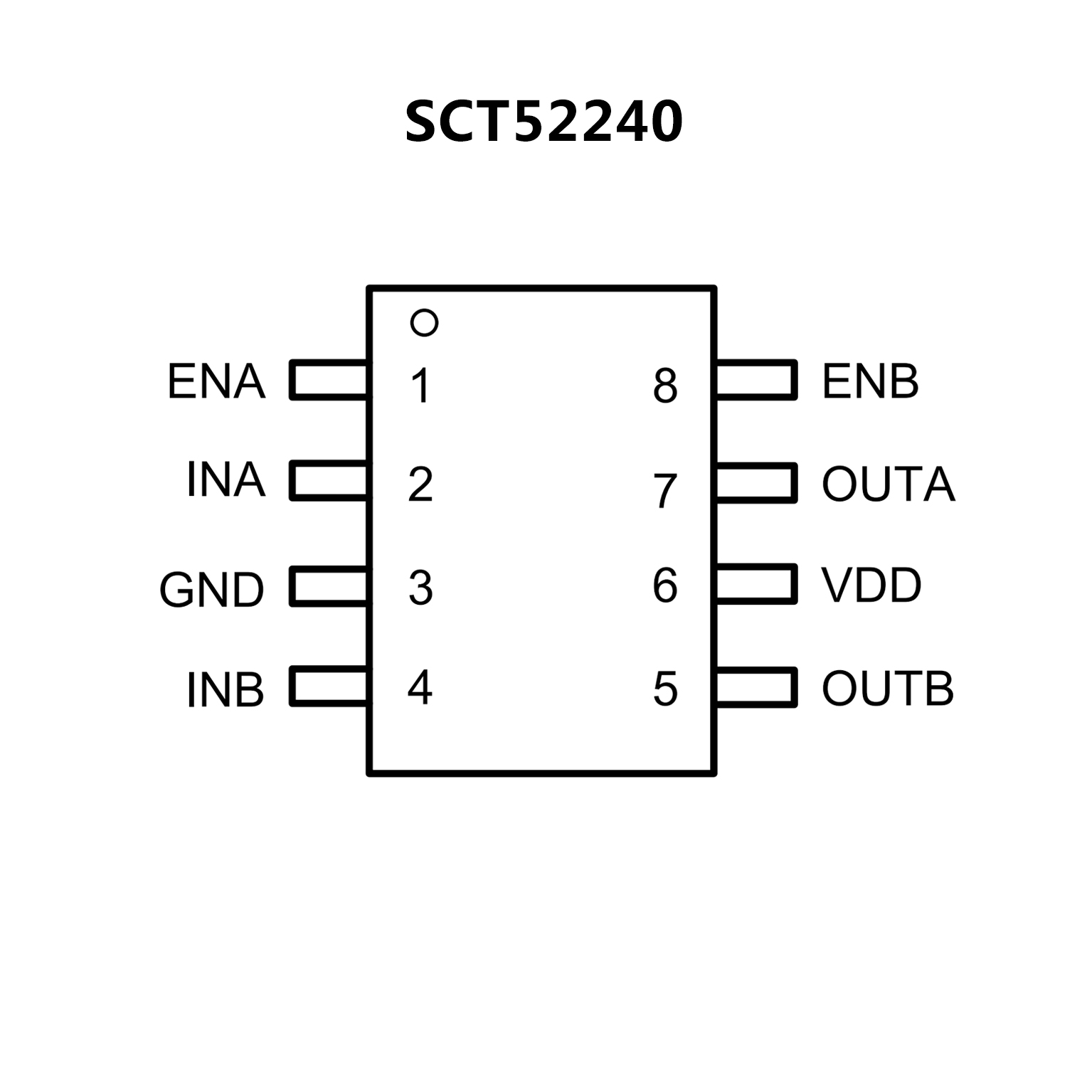

SCT52240.pdf• Wide Supply Voltage Range: 4.5V - 24V
• 4A Peak Source Current and 4A Peak Sink
Current
• Stackable Output for Higher Driving Capability
• Negative Input Voltage Capability: Down to -5V
• TTL Compatible Input Logic Threshold
• Propagation Delay: 13ns
• Typical Rising and Falling Times: 8ns
• Typical Delay Matching: 1ns
• Low Quiescent Current: 55uA
• Output Low When Input Floating
• Independent Enable Logic for Each Channel
• Thermal Shutdown Protection: 170°C
• Available in SOP-8 and eMSOP-8 Package

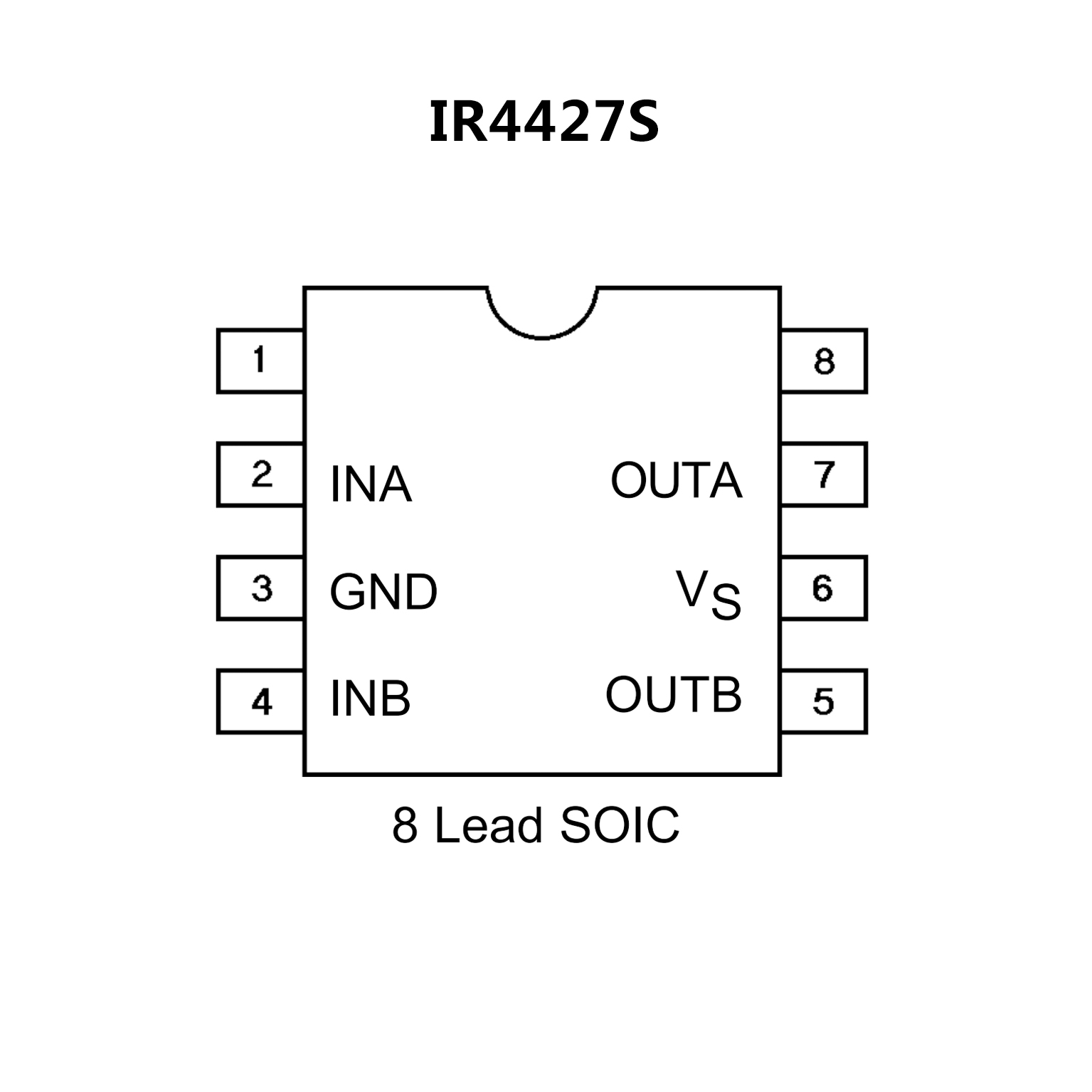

• Gate drive supply range from 6 to 20V
• CMOS Schmitt-triggered inputs
• Matched propagation delay for both channels
• Outputs out of phase with inputs (IR4426)
• Outputs in phase with inputs (IR4427)
• OutputA out of phase with inputA and
OutputB in phase with inputB (IR4428)
• Also available LEAD-FREE
