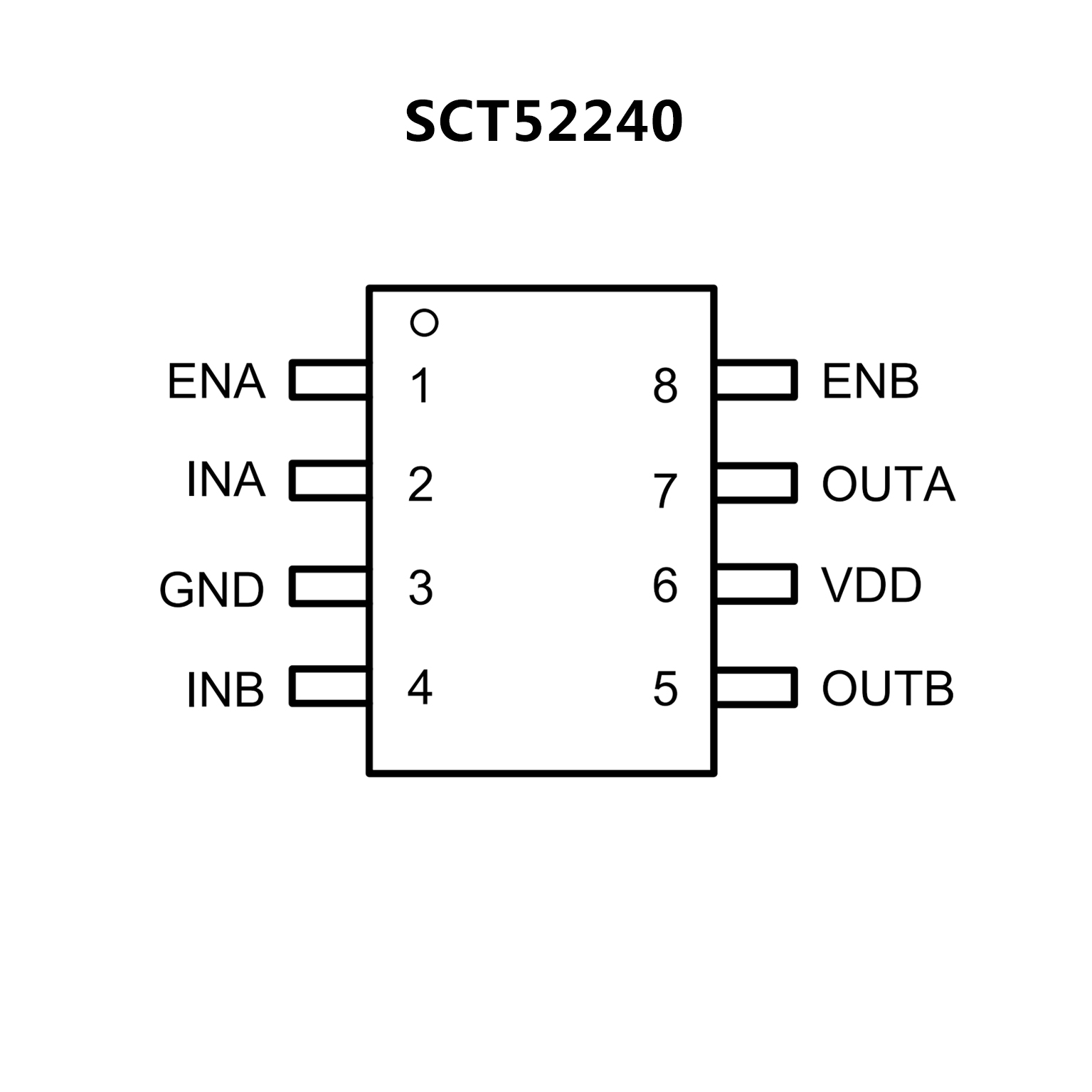

SCT52240.pdf• Wide Supply Voltage Range: 4.5V - 24V
• 4A Peak Source Current and 4A Peak Sink
Current
• Stackable Output for Higher Driving Capability
• Negative Input Voltage Capability: Down to -5V
• TTL Compatible Input Logic Threshold
• Propagation Delay: 13ns
• Typical Rising and Falling Times: 8ns
• Typical Delay Matching: 1ns
• Low Quiescent Current: 55uA
• Output Low When Input Floating
• Independent Enable Logic for Each Channel
• Thermal Shutdown Protection: 170°C
• Available in SOP-8 and eMSOP-8 Package

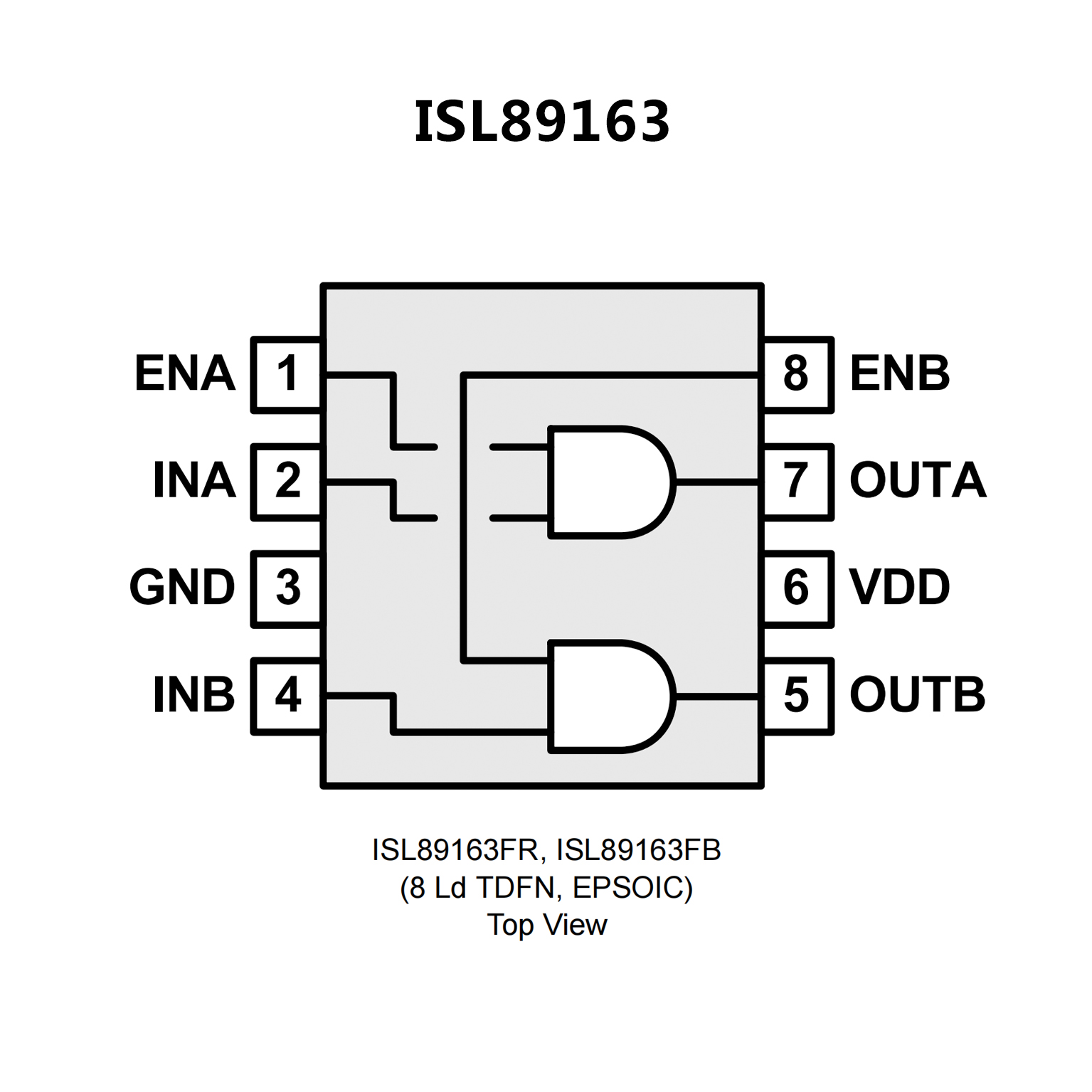

• Dual output, 6A peak currents, can be paralleled
• Dual AND-ed input logic, (input and enable)
• Typical ON-resistance <1Ω
• Specified Miller plateau drive currents
• Very low thermal impedance (θJC = 3°C/W)
• Hysteretic Input logic levels for 3.3V CMOS, 5V
CMOS, TTL, and Logic levels proportional to VDD
• Precision threshold inputs for time delays with
external RC components
• 20ns rise and fall time driving a 10nF load
