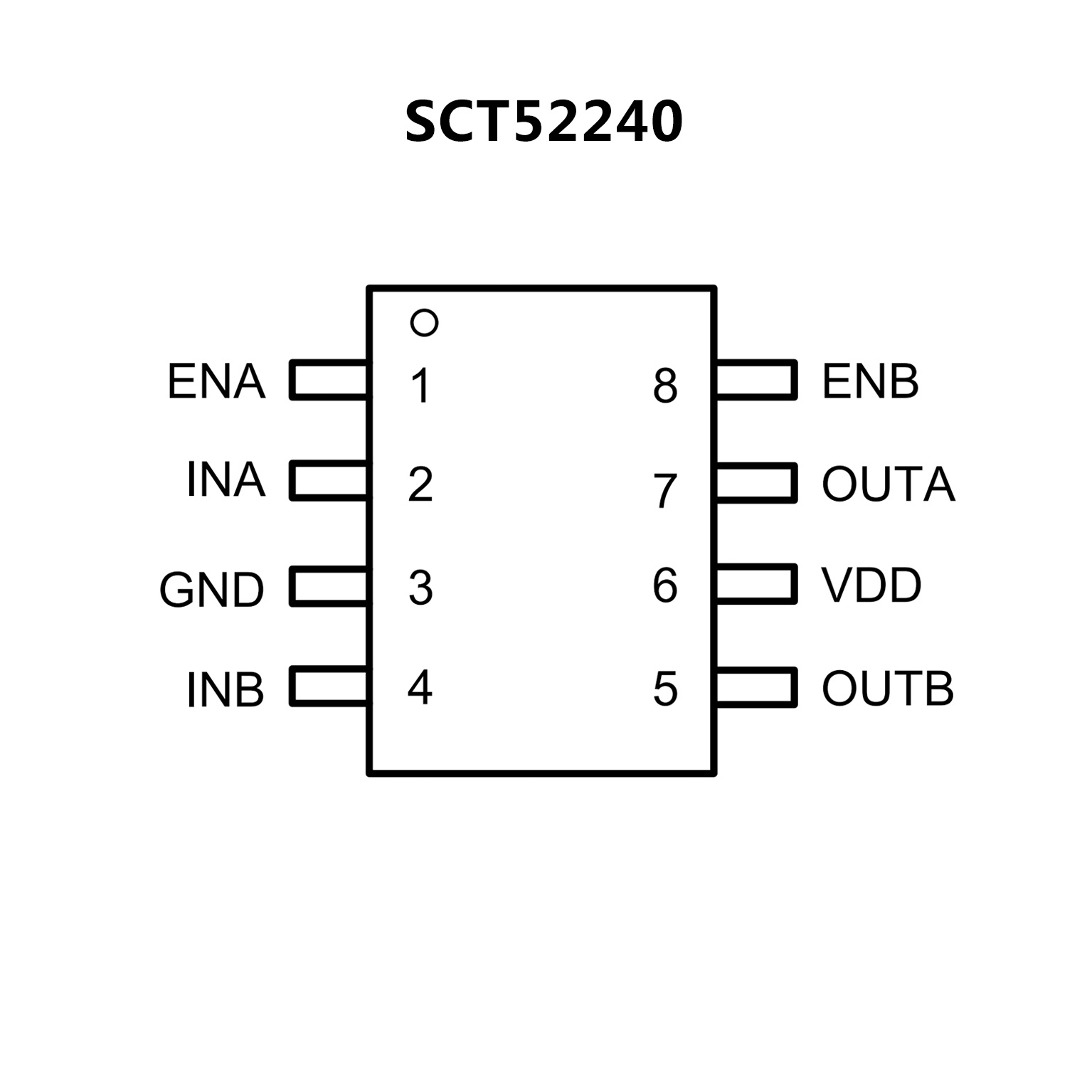

SCT52240.pdf• Wide Supply Voltage Range: 4.5V - 24V
• 4A Peak Source Current and 4A Peak Sink
Current
• Stackable Output for Higher Driving Capability
• Negative Input Voltage Capability: Down to -5V
• TTL Compatible Input Logic Threshold
• Propagation Delay: 13ns
• Typical Rising and Falling Times: 8ns
• Typical Delay Matching: 1ns
• Low Quiescent Current: 55uA
• Output Low When Input Floating
• Independent Enable Logic for Each Channel
• Thermal Shutdown Protection: 170°C
• Available in SOP-8 and eMSOP-8 Package
• lmproved Second Source For TSC426/7/8
• Fast Rise and Fall Times: Typically 20ns with
1000pF Load
• Wide Supply Range: VDD = 4.5 to 18 Volts
• Low Power Consumption:
7mW with Inputs Low
150mW with Inputs High
• TTL/CMOS Input Compatible
• Low Rout: Typically 4Ω

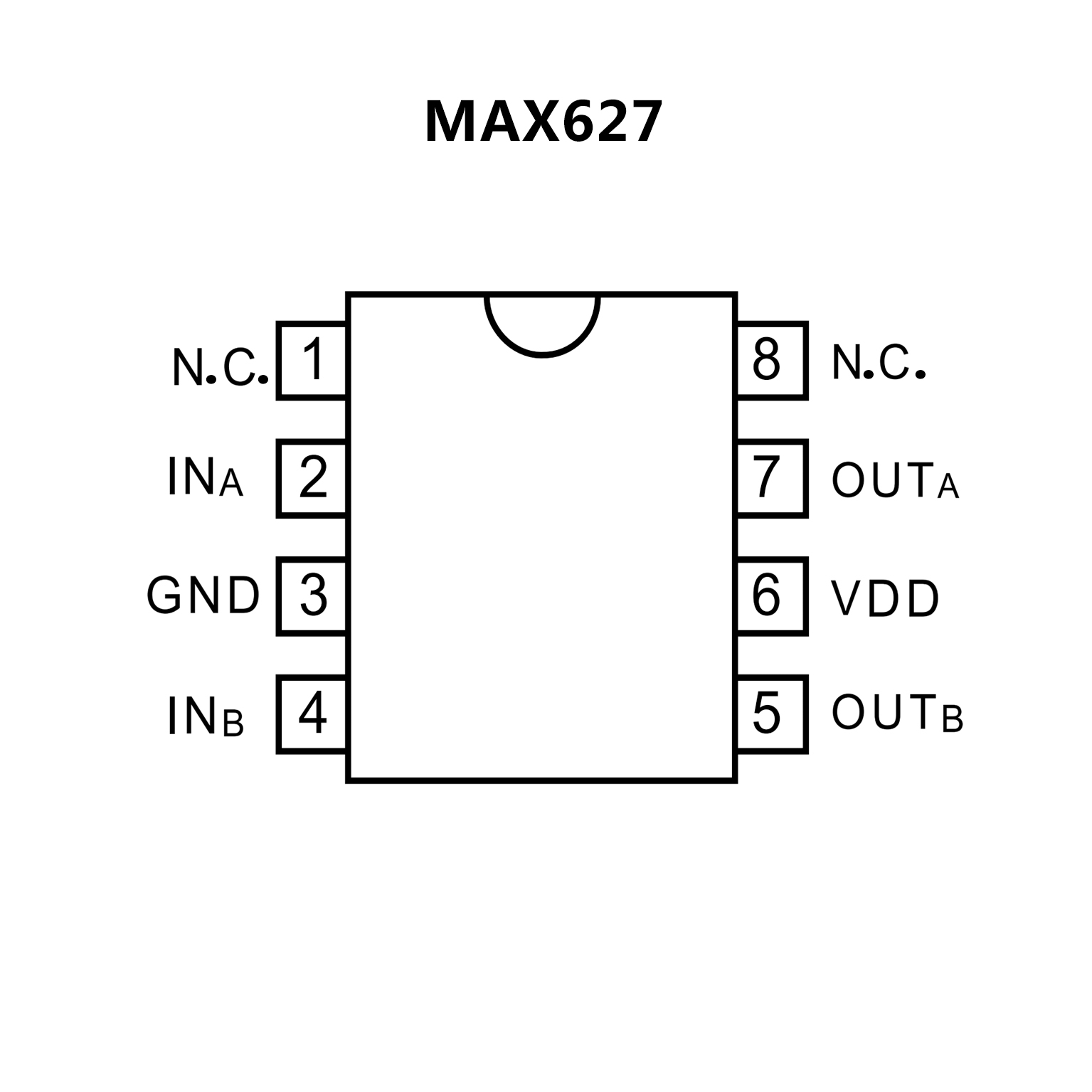

• MAX626 is Pin Equivalent to TSC426,
DS0026/DS0056
