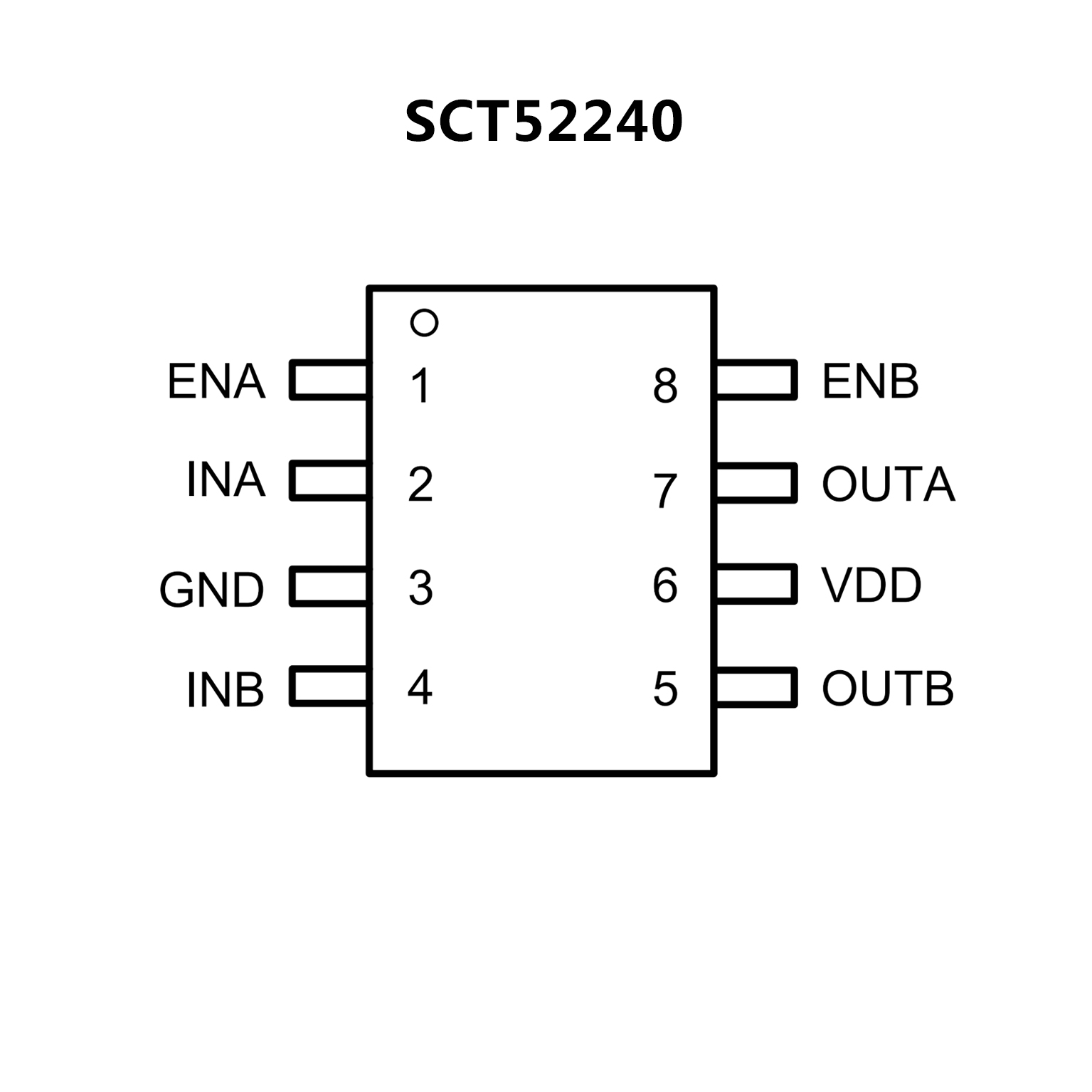

SCT52240.pdf• Wide Supply Voltage Range: 4.5V - 24V
• 4A Peak Source Current and 4A Peak Sink
Current
• Stackable Output for Higher Driving Capability
• Negative Input Voltage Capability: Down to -5V
• TTL Compatible Input Logic Threshold
• Propagation Delay: 13ns
• Typical Rising and Falling Times: 8ns
• Typical Delay Matching: 1ns
• Low Quiescent Current: 55uA
• Output Low When Input Floating
• Independent Enable Logic for Each Channel
• Thermal Shutdown Protection: 170°C
• Available in SOP-8 and eMSOP-8 Package

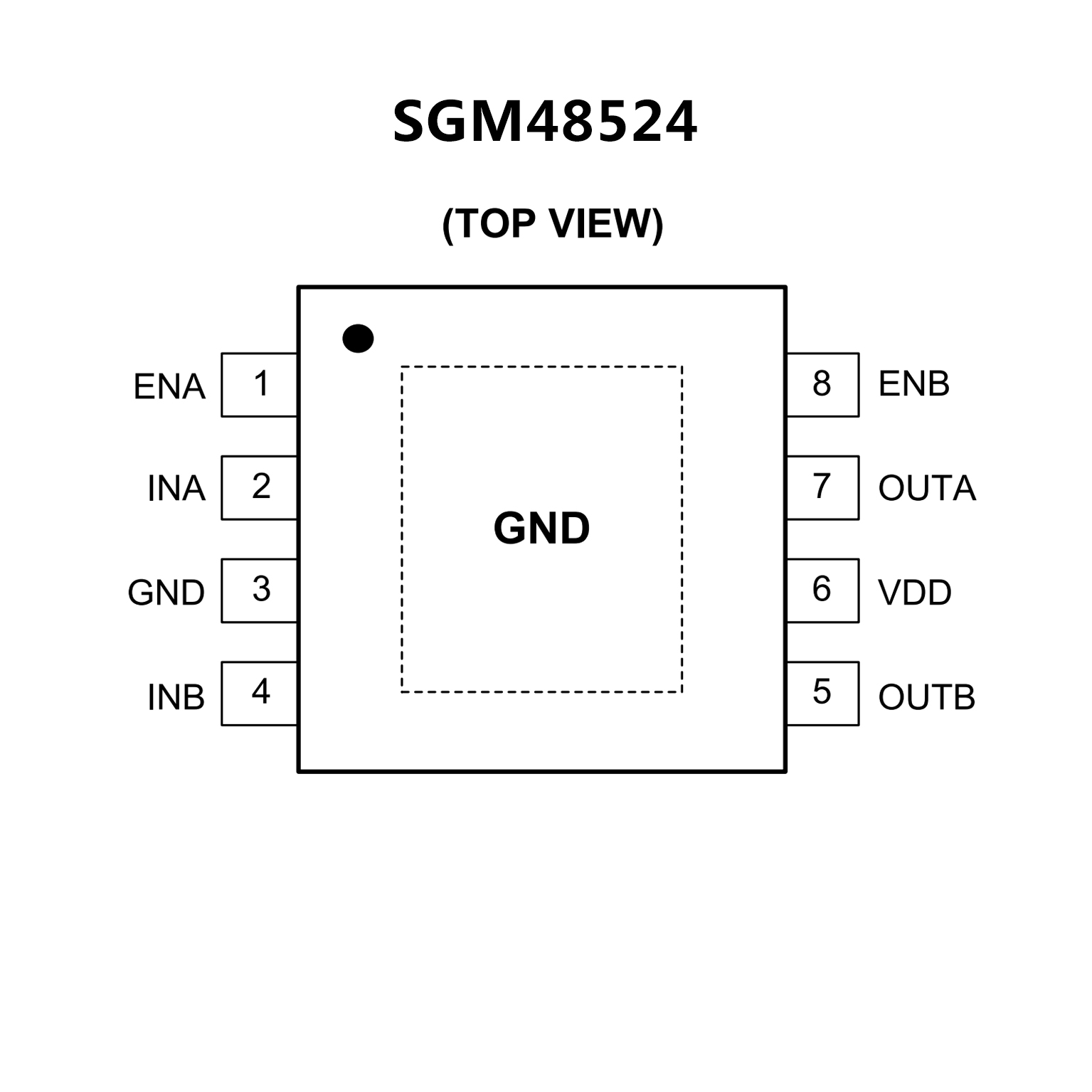

• Two Independent Gate Drive Channels
• 5A Source and 5A Sink Peak Currents
• Wide Supply Voltage Range: 4.5V to 18V
• TTL and CMOS Compatible Logic Threshold
• Logic Levels Independent of Supply Voltage
• Hysteretic Input Logic for High Noise Immunity
• Outputs Held Low When Inputs are Floating
• Fast Propagation Delays: 18ns (TYP)
• Fast Rise Time: 7ns (TYP)
• Fast Fall Time: 7ns (TYP)
• Ringing Suppression
• Negative Voltage Capability on INx Pins:
-10V when (VDD - VINx) ≤ 20V
• Negative Voltage Capability on ENx Pins:
-10V when (VDD - VENx) ≤ 20V
• Negative Voltage Capability on OUTx Pin:
-2V (Pulse < 200ns)
• Comprehensive Protection Features
- Thermal Shutdown Protection
- Under-Voltage Lockout
- Short-Circuit Protection
• -40℃ to +125℃ Operating Temperature Range
• Available in Green SOIC-8, MSOP-8 (Exposed
Pad) and TDFN-3×3-8L Packages
