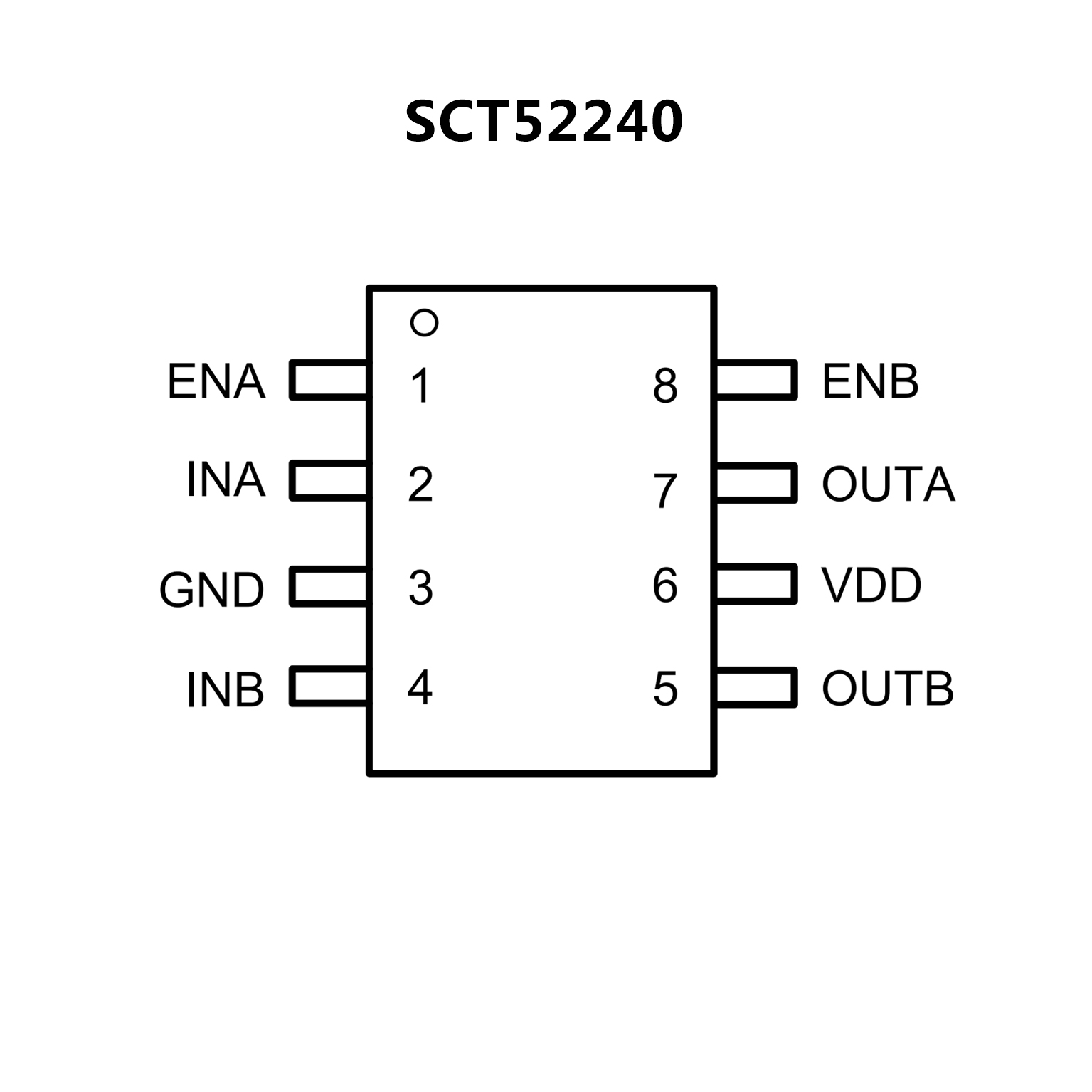

SCT52240.pdf• Wide Supply Voltage Range: 4.5V - 24V
• 4A Peak Source Current and 4A Peak Sink
Current
• Stackable Output for Higher Driving Capability
• Negative Input Voltage Capability: Down to -5V
• TTL Compatible Input Logic Threshold
• Propagation Delay: 13ns
• Typical Rising and Falling Times: 8ns
• Typical Delay Matching: 1ns
• Low Quiescent Current: 55uA
• Output Low When Input Floating
• Independent Enable Logic for Each Channel
• Thermal Shutdown Protection: 170°C
• Available in SOP-8 and eMSOP-8 Package

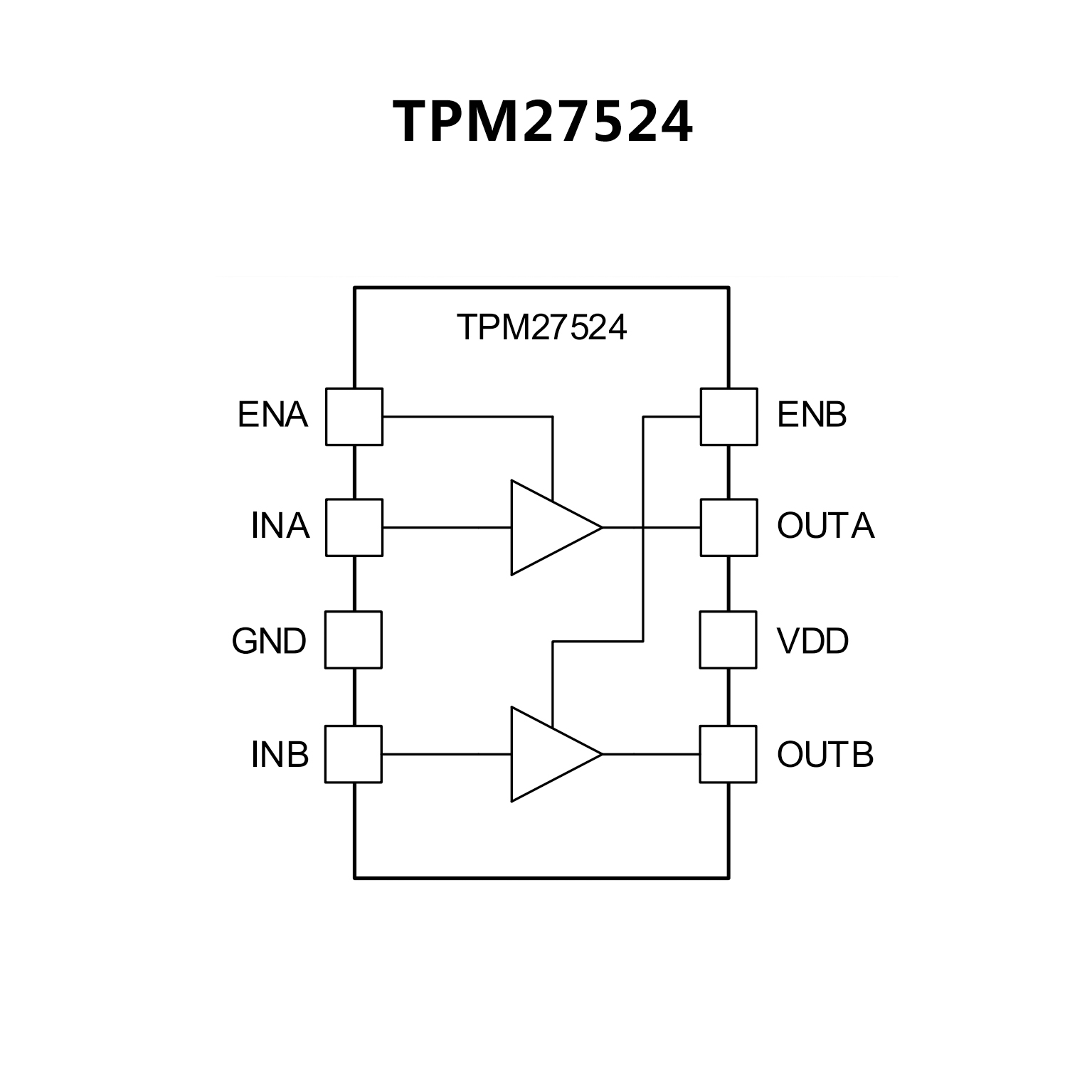

• Industry-Standard Pin-Out
• 4.5-V to 23-V Single-Supply Range
• Dual Independent Channels
• 5-A Peak Source and Sink-Drive Current
• Independent-Enable Function for Each Output
• TTL and CMOS Compatible Threshold
• Outputs Held Low During VDD-UVLO or Input Floating
• Low Propagation Delay (13-ns Typical)
• Fast Rise and Fall Times (7-ns and 6-ns Typical)
• <1-ns Typical Delay Matching Between Two Channels
• Two Outputs can be used in Parallel for Higher Drive
Current
• ESD Protection Exceeds JESD 22 – 6-kV HBM, 1.5-kV
CDM
• Available in SOP-8, EMSOP-8 and DFN3X3-8, DFN2X2-8
Packages
