Up to 24V Supply, 4A Dual Channel High Speed Low Side Driver, SCT52240Q Replace NSD1025-Q1.
SCT52240Q
SCT52240Q.pdf
SCT52240Q.pdfFEATURES
• Qualified for Automotive Applications
• AEC-Q100 Qualified with the Following Results:
- Device Temperature Grade 1: -40°C to 125°C
Ambient Operating Temperature Range
- Device HBM ESD Classification Level H2
- Device CDM ESD Classification Level C3B
• Wide Supply Voltage Range: 4.5V - 24V
• 4A Peak Source Current and 4A Peak Sink
Current
• Stackable Output for Higher Driving Capability
• Negative Input Voltage Capability: Down to -5V
• TTL Compatible Input Logic Threshold
• Propagation Delay: 13ns
• Typical Rising and Falling Times: 8ns
• Typical Delay Matching: 1ns
• Low Quiescent Current: 55uA
• Output Low When Input Floating
• Independent Enable Logic for Each Channel
• Thermal Shutdown Protection: 170°C
• Available in SOP-8 Package

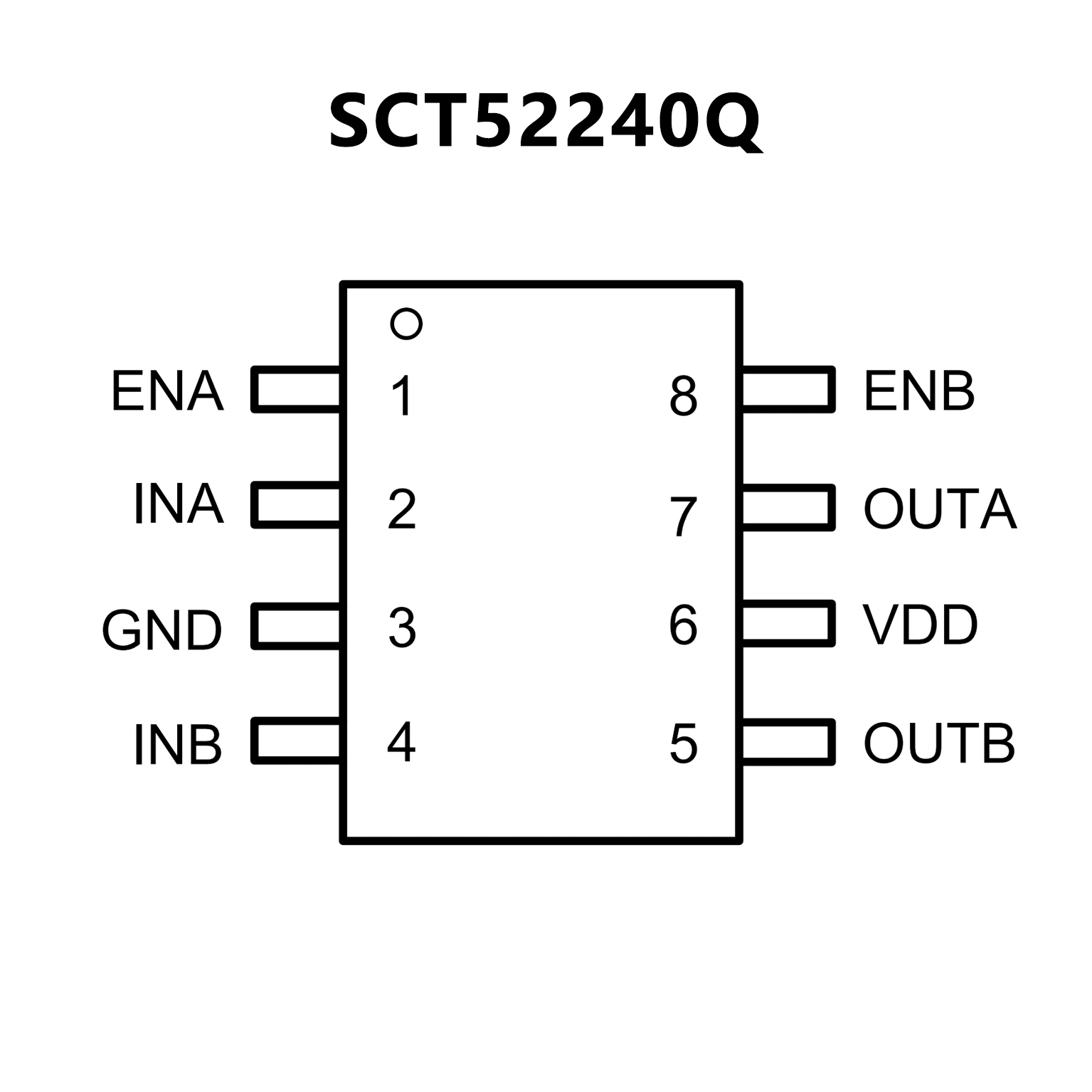

PIN CONFIGUTION
优势替代
FEATURES
• Wide supply voltage range: 4.5 to 24V
• Source/Sink drive current: ±5A (Peak)
• Two independent enable pins to control channel output
• Industry-standard Pin out
• Ability to handle negative swing of (-10V) at each input pin
• Offer High drive current by parallel connection of outputs
• CMOS/TTL compatible logic inputs
• 5A reverse current feature eliminates the need of output
protection circuitry
• Operating temperature range: -40°C to 125°C
• Low supply current
• Short propagation delays: 21ns(typical)
• Automotive qualified to AEC-Q100 Class 1

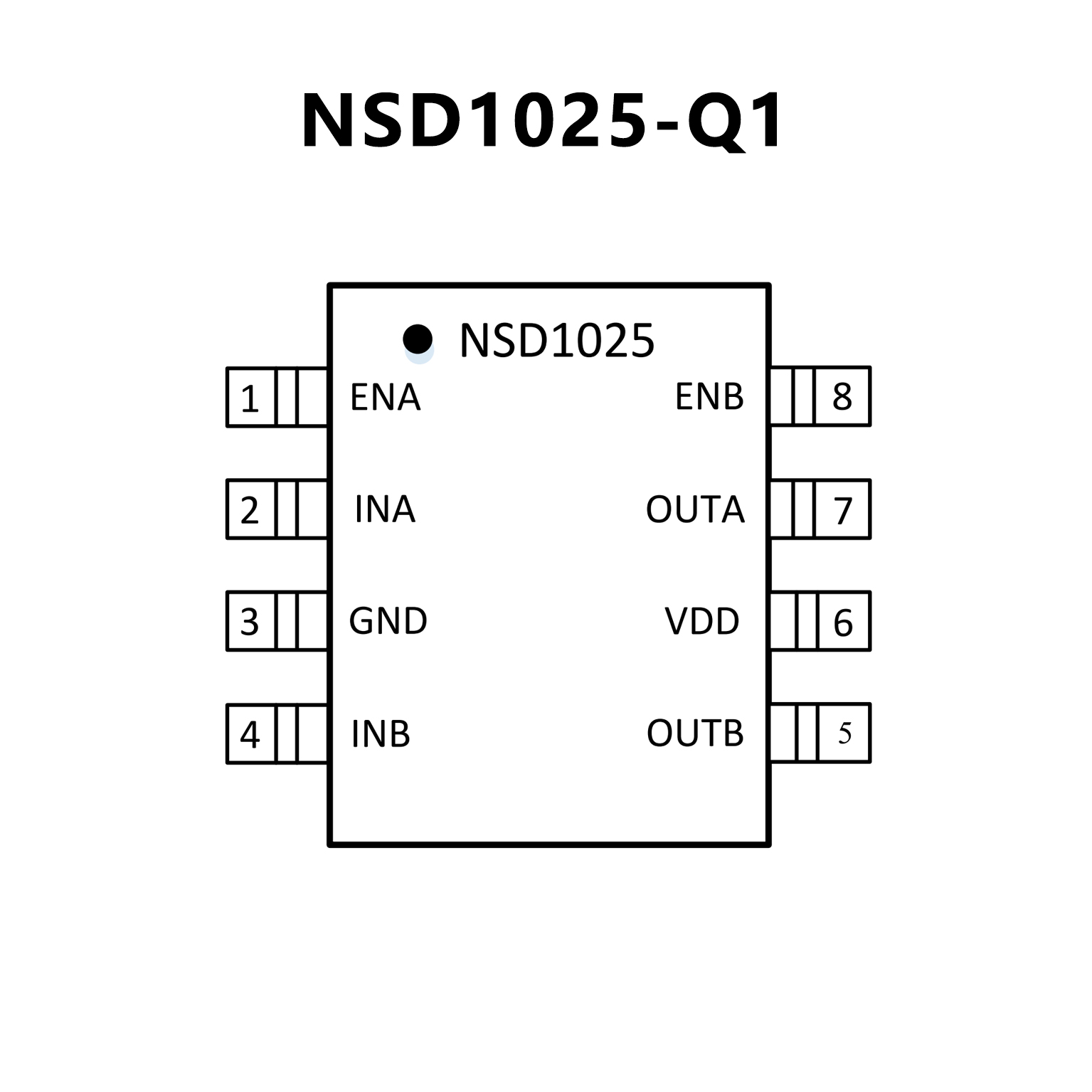

PIN CONFIGUTION
