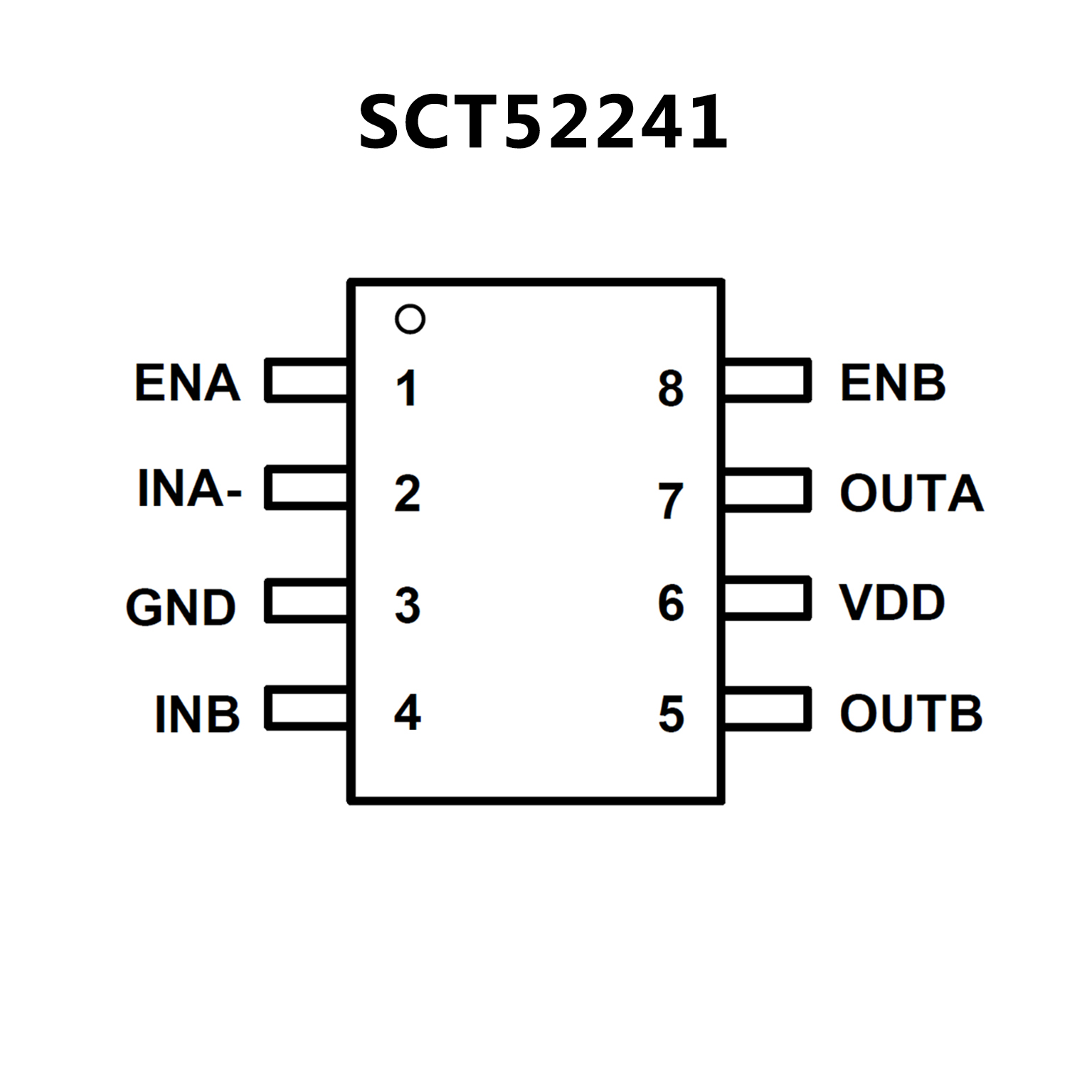

SCT52241.pdf• Wide Supply Voltage Range: 4.5V - 24V
• 4A Peak Source Current and 4A Peak Sink
Current
• Negative Input Voltage Capability: Down to -5V
• TTL Compatible Input Logic Threshold
• Propagation Delay: 13ns
• Typical Rising and Falling Times: 8ns
• Low Quiescent Current: 55uA
• Output Low When Input Floating
• Independent Enable Logic for Each Channel
• Thermal Shutdown Protection: 170°C
• Available in SOP-8 Package
• Industry-standard-compatible pinout
• High current drive capability
• Precise threshold shutdown comparator
• UVLO with hysteresis
• Overtemperature warning signal
• Overtemperature shutdown
• 3.3 V-compatible inputs
• 10 ns typical rise time and fall time
• @ 2.2 nF load Matched propagation
delays between channels Fast propagation delay
9.5 V to 18 V supply voltage (ADP3633/ADP3634/ADP3635)
• 4.5 V to 18 V supply voltage (ADP3623/
ADP3624/ADP3625) Parallelable dual outputs
Rated from −40°C to +85°C ambient temperature
Thermally enhanced packages, 8-lead SOIC_N_EP and
