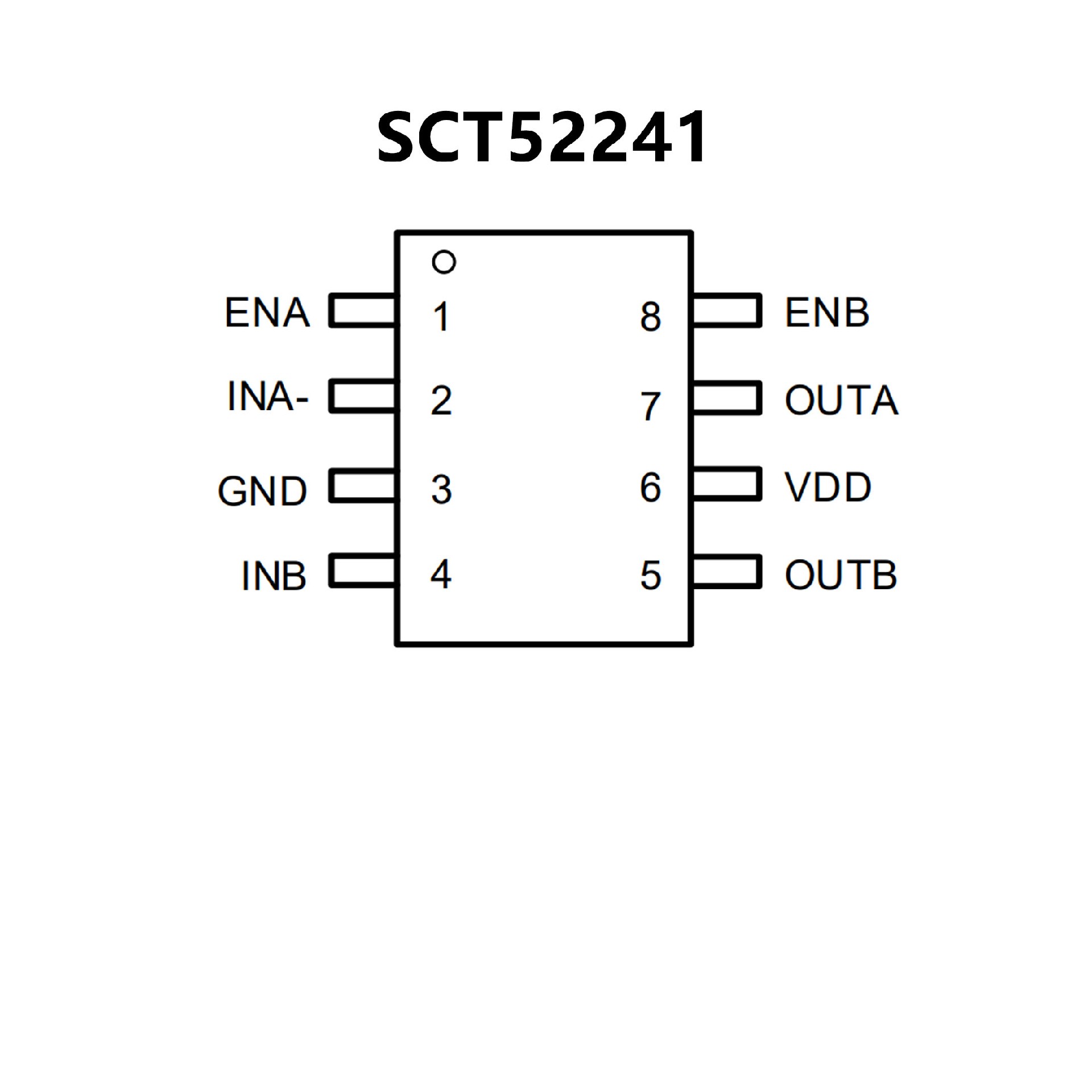

SCT52241.pdf• Wide Supply Voltage Range: 4.5V - 24V
• 4A Peak Source Current and 4A Peak Sink Current
• Negative Input Voltage Capability: Down to -5V
• TTL Compatible Input Logic Threshold
• Propagation Delay: 13ns
• Typical Rising and Falling Times: 8ns
• Low Quiescent Current: 55µA
• Output Low When Input Floating
• Independent Enable Logic for Each Channel
• Thermal Shutdown Protection: 170°C
• Available in SOP-8 Package
• Industry−Standard Pinouts
• 4.5 V to 18 V Operating Range
• 5 A Peak Sink/Source at VDD = 12 V
• 4.3 A Sink / 2.8 A Source at VOUT = 6 V
• Choice of TTL or CMOS Input Thresholds

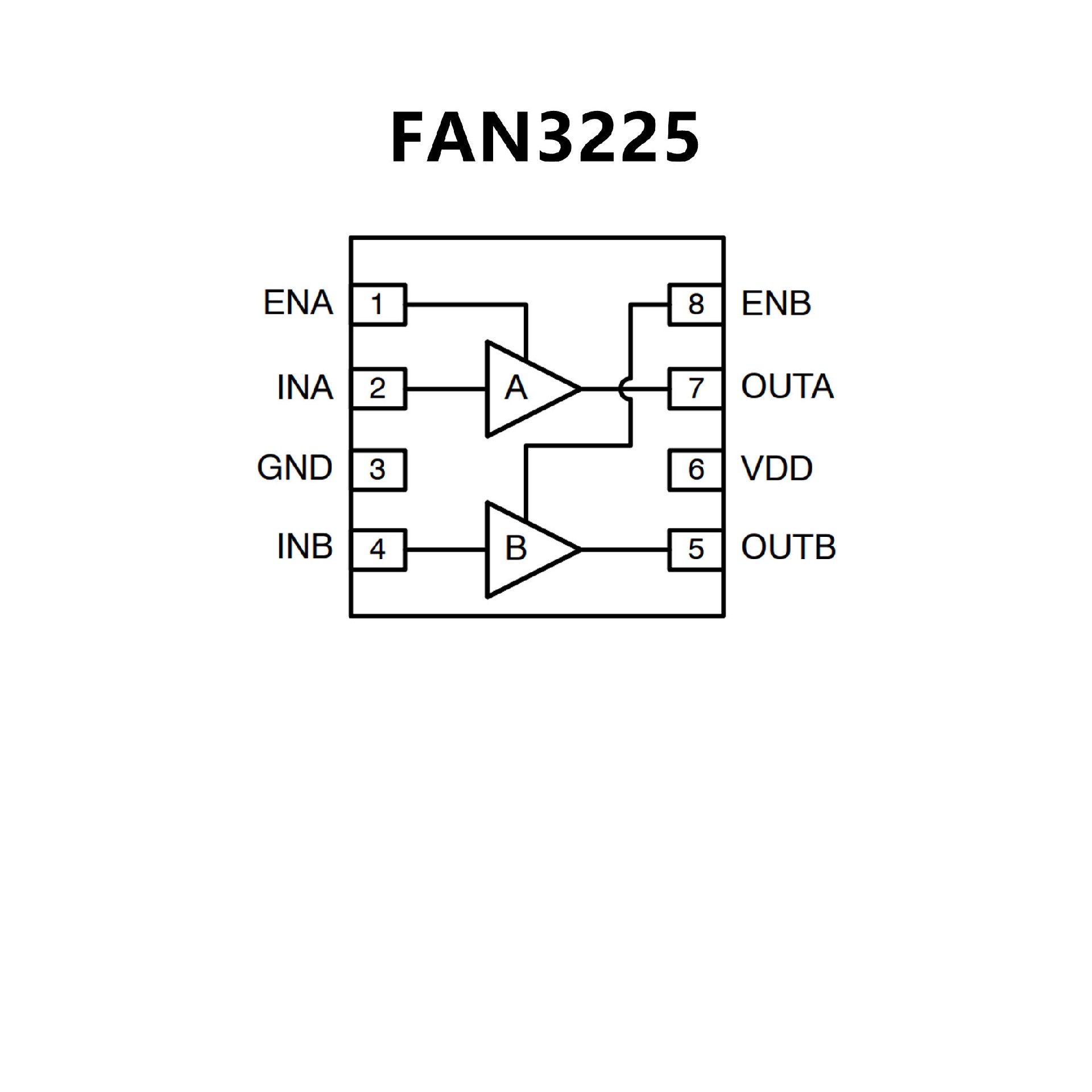

• Three Versions of Dual Independent Drivers:
Dual Inverting + Enable (FAN3223)
Dual Non−Inverting + Enable (FAN3224)
Dual−Inputs (FAN3225)
• Internal Resistors Turn Driver Off If No Inputs
• MillerDrive Technology
• 12 ns / 9 ns Typical Rise/Fall Times (2.2 nF Load)
• Under 20 ns Typical Propagation Delay Matched within
1 ns to theOther Channel
• Double Current Capability by Paralleling Channels
• 8−Lead 3x3 mm MLP, 8−Lead SOIC Package
• Rated from –40°C to +125°C Ambient
• These are Pb−Free Devices
