SCT52241.pdf• Wide Supply Voltage Range: 4.5V - 24V
• 4A Peak Source Current and 4A Peak Sink Current
• Negative Input Voltage Capability: Down to -5V
• TTL Compatible Input Logic Threshold
• Propagation Delay: 13ns
• Typical Rising and Falling Times: 8ns
• Low Quiescent Current: 55µA
• Output Low When Input Floating
• Independent Enable Logic for Each Channel
• Thermal Shutdown Protection: 170°C
• Available in SOP-8 Package
• 4V to 15V Single Power Supply
• 4A Peak Source/Sink Drive Current
• 20ns (typ) Propagation Delay
• Matching Delay Between Inverting
andNoninverting Inputs
• Matching Propagation Delay
Between TwoChannels
• VDD / 2 CMOS Logic Inputs (MAX5054AATA)
• TTL Logic Inputs

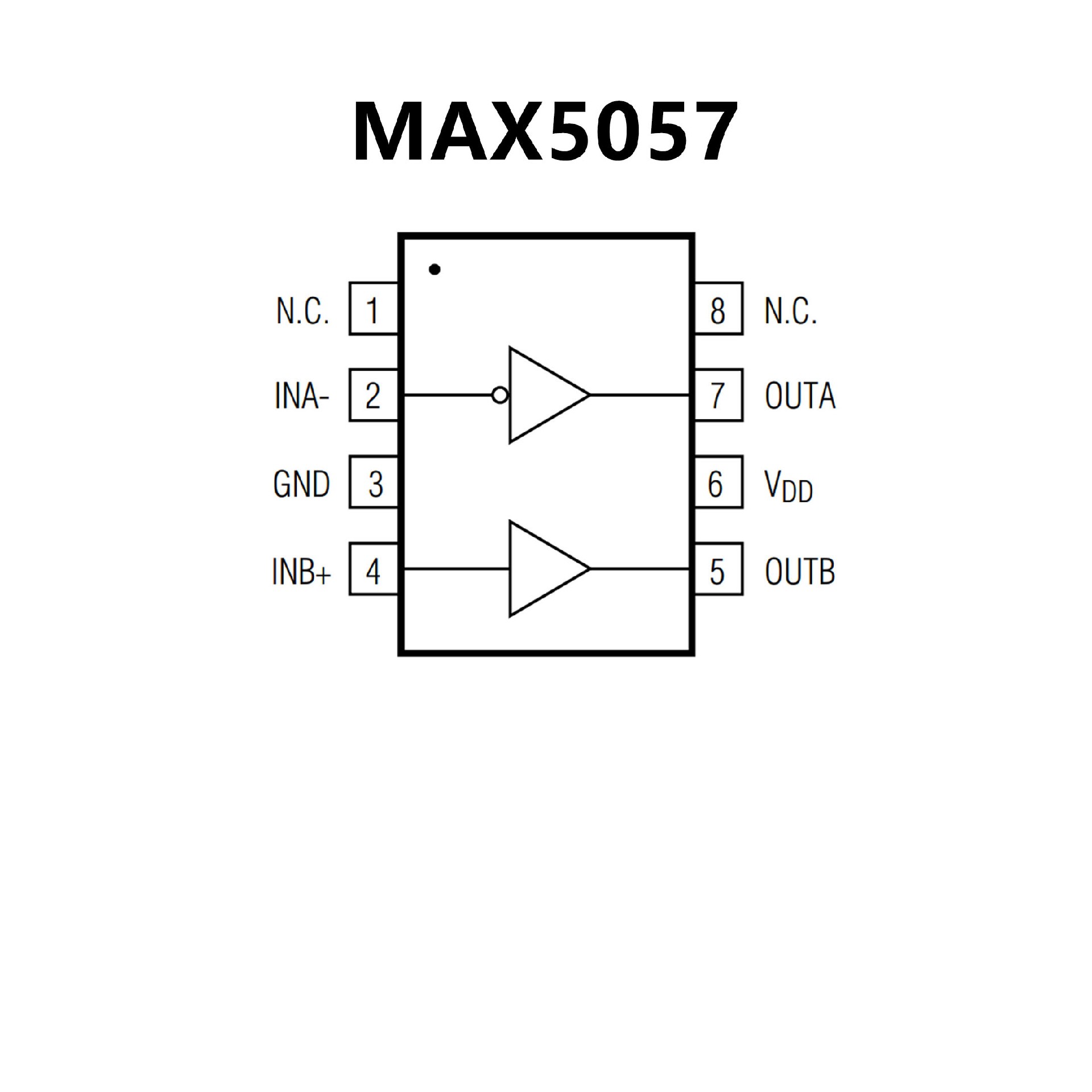

(MAX5054B/MAX5055/MAX5056/MAX5057)
• 0.1 x VDD (CMOS) and 0.3V (TTL)
Logic-InputHysteresis
• Up to +18V Logic Inputs
(Regardless of VDDVoltage)
• Low Input Capacitance: 2.5pF (typ)
• 40µA (typ) Quiescent Current
• -40°C to +125°C Operating Temperature Range
• 8-Pin TDFN and SO Packages
