Up to 24V Supply, 4-A Dual Channel High Speed Low Side Driver,SCT52241 Replace MAX628.
SCT52241
SCT52241.pdf
SCT52241.pdfFEATURES
• Wide Supply Voltage Range: 4.5V - 24V
• 4A Peak Source Current and 4A Peak Sink Current
• Negative Input Voltage Capability: Down to -5V
• TTL Compatible Input Logic Threshold
• Propagation Delay: 13ns
• Typical Rising and Falling Times: 8ns
• Low Quiescent Current: 55µA
• Output Low When Input Floating
• Independent Enable Logic for Each Channel
• Thermal Shutdown Protection: 170°C
• Available in SOP-8 Package

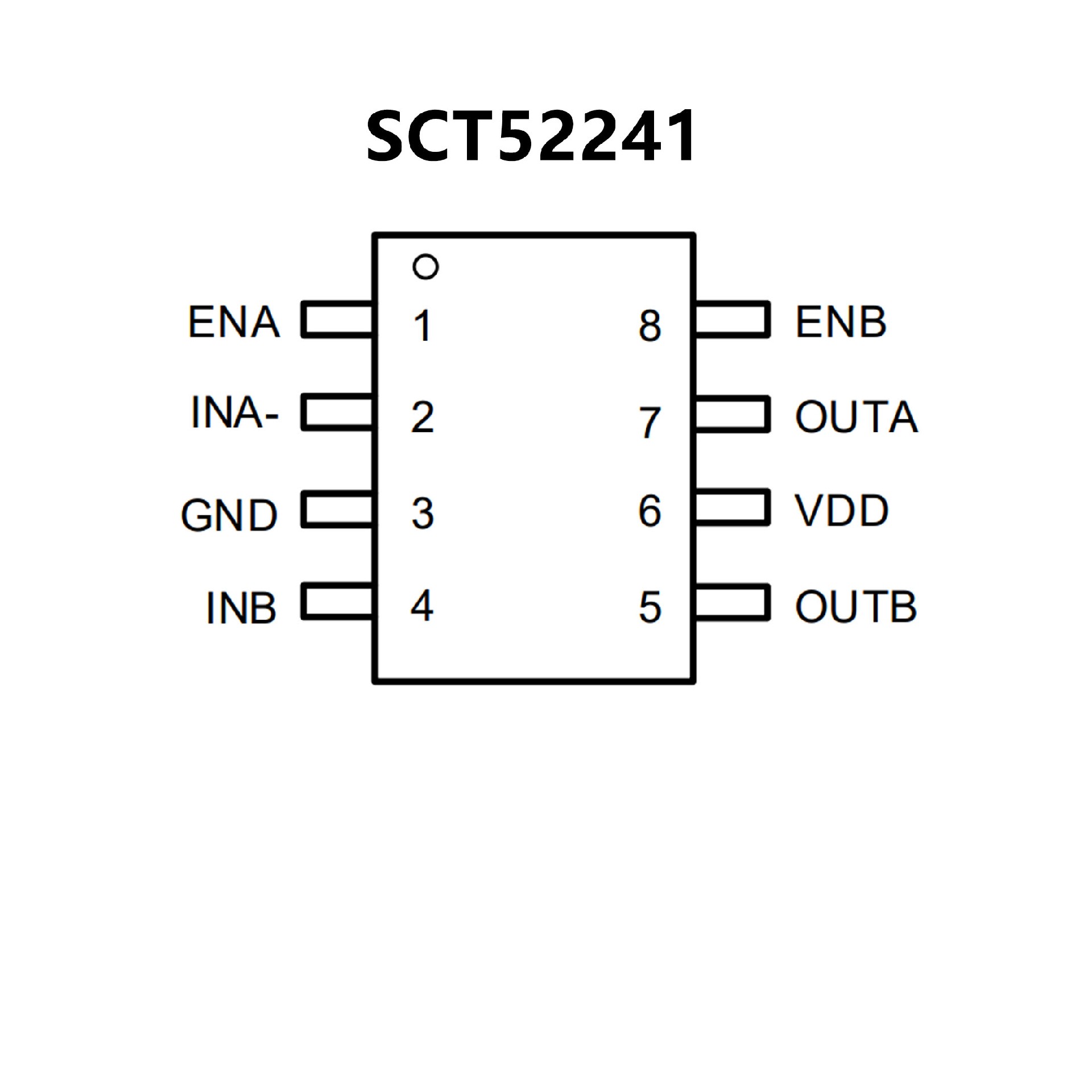

PIN CONFIGUTION
优势替代
FEATURES
• lmproved Second Source For TSC426/7/8
• Fast Rise and Fall Times: Typically 20ns with1000pF Load
• Wide Supply Range: VoD = 4.5 to 18 Volts
• Low Power Consumption:
• 7mW with Inputs Low150mW with Inputs High
• TTL/CMOS Input Compatible
• Low Rou: Typically 4Ω
• MAX626 is Pin Equlvalent to TSC426,DS0026/DS0056

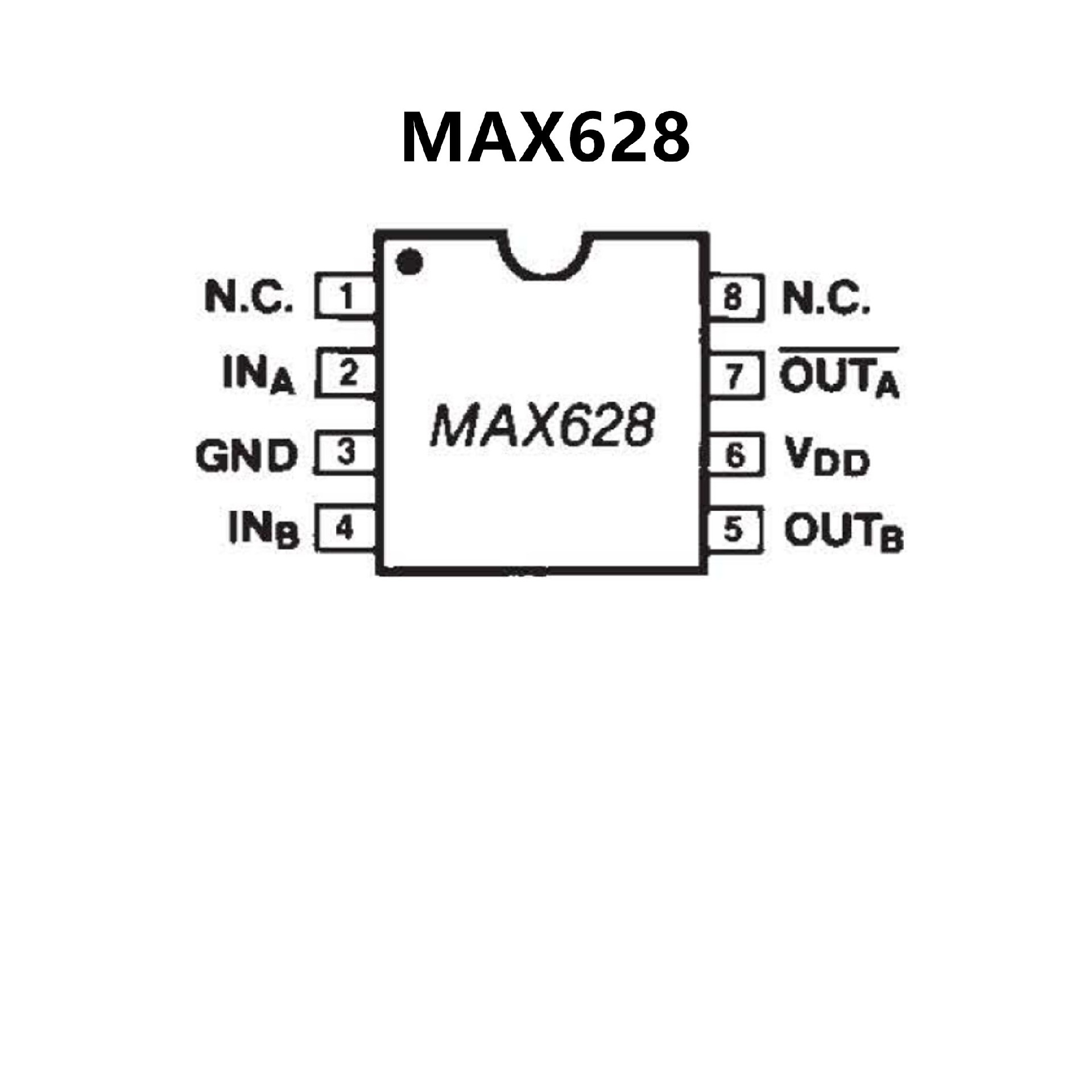

PIN CONFIGUTION
