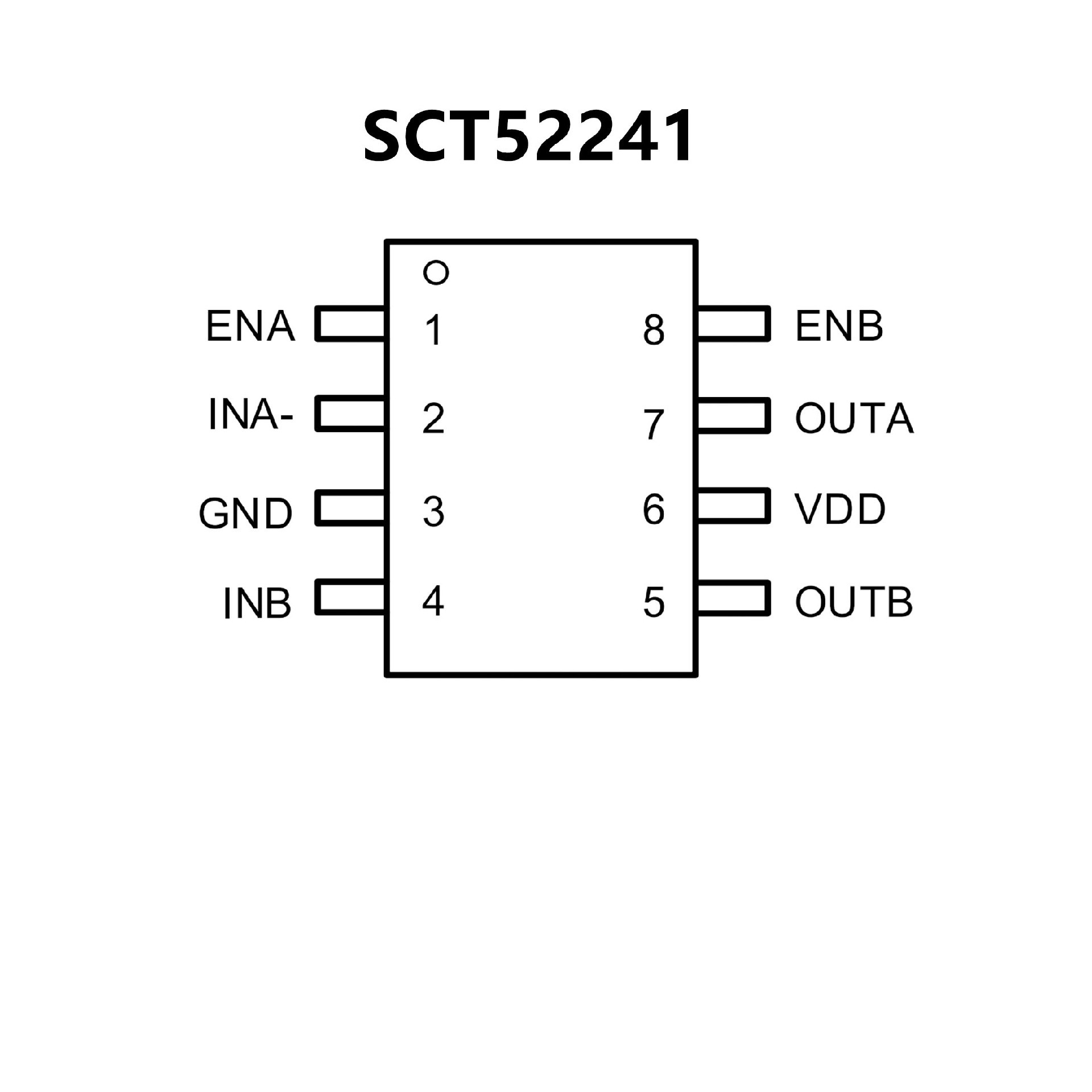

SCT52241.pdf• Wide Supply Voltage Range: 4.5V - 24V
• 4A Peak Source Current and 4A Peak Sink Current
• Negative Input Voltage Capability: Down to -5V
• TTL Compatible Input Logic Threshold
• Propagation Delay: 13ns
• Typical Rising and Falling Times: 8ns
• Low Quiescent Current: 55µA
• Output Low When Input Floating
• Independent Enable Logic for Each Channel
• Thermal Shutdown Protection: 170°C
• Available in SOP-8 Package

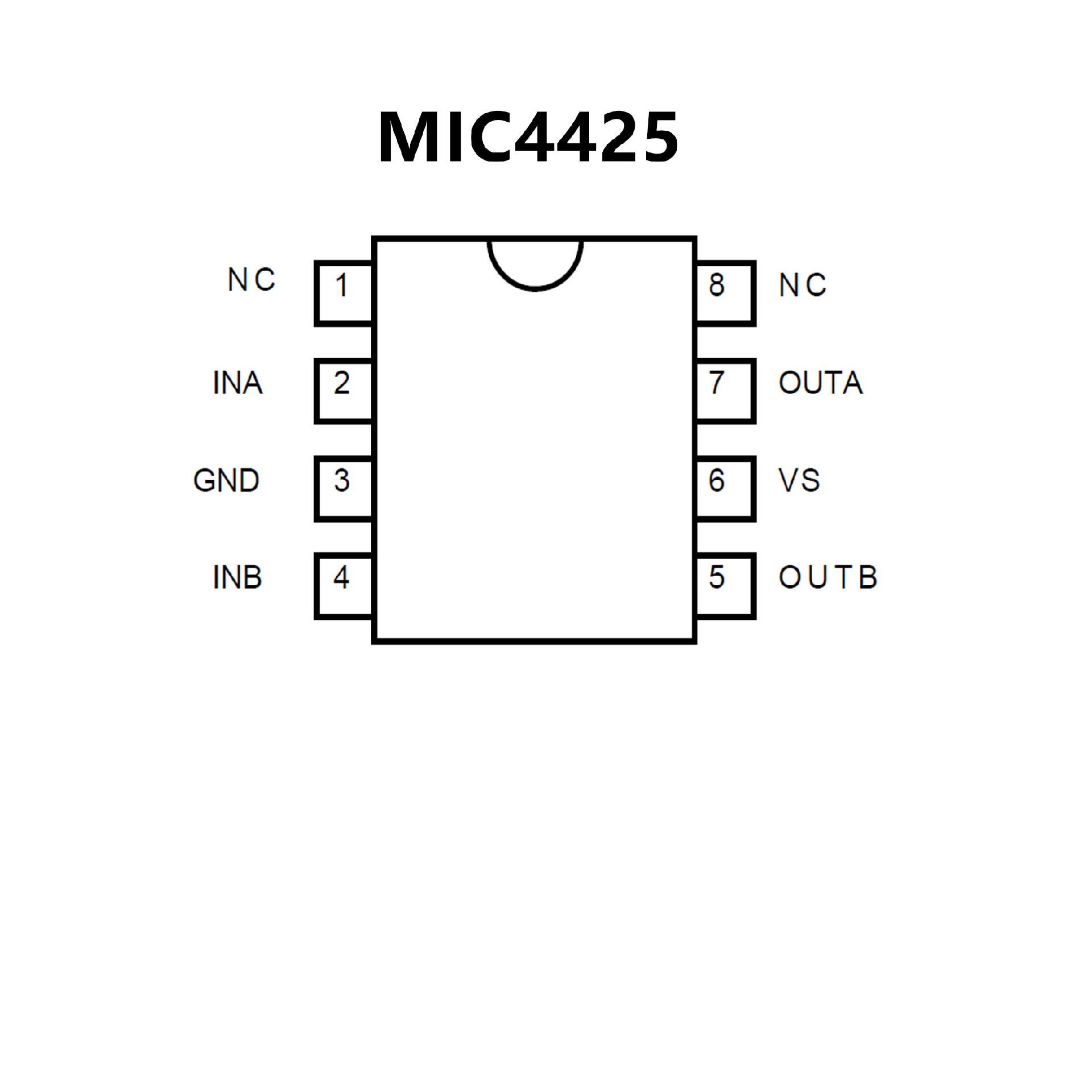

• Reliable, low-power bipolar
/CMOS/DMOS construction
• Latch-up protected to >500mA
reverse current
• Logic input withstands swing to –5V
• High 3A-peak output current
• Wide 4.5V to 18V operating range
• Drives 1800pF capacitance in 25ns
• Short <40ns typical delay time
• Delay times consistent with in
supply voltage change
• Matched rise and fall times
• TTL logic input independent
of supply voltage
• Low equivalent 6pF input capacitance
• Low supply current
3.5mA with
logic-1 input
350µA with logic-0 input
• Low 3.5Ω typical output impedance
• Output voltage swings within
25mV of ground or VS.
• 426/7/8-, ‘1426/7/8-, ‘4426/7/8
-compatible pinout
• Inverting, noninverting,
and differential configurations
