• Wide Supply Voltage Range: 4.5V - 24V
• 4A Peak Source Current and 4A Peak Sink Current
• Negative Input Voltage Capability: Down to -5V
• TTL Compatible Input Logic Threshold
• Propagation Delay: 13ns
• Typical Rising and Falling Times: 8ns
• Low Quiescent Current: 55uA
• Output Low When Input Floating
• Independent Enable Logic for Each Channel
• Thermal Shutdown Protection: 170°C

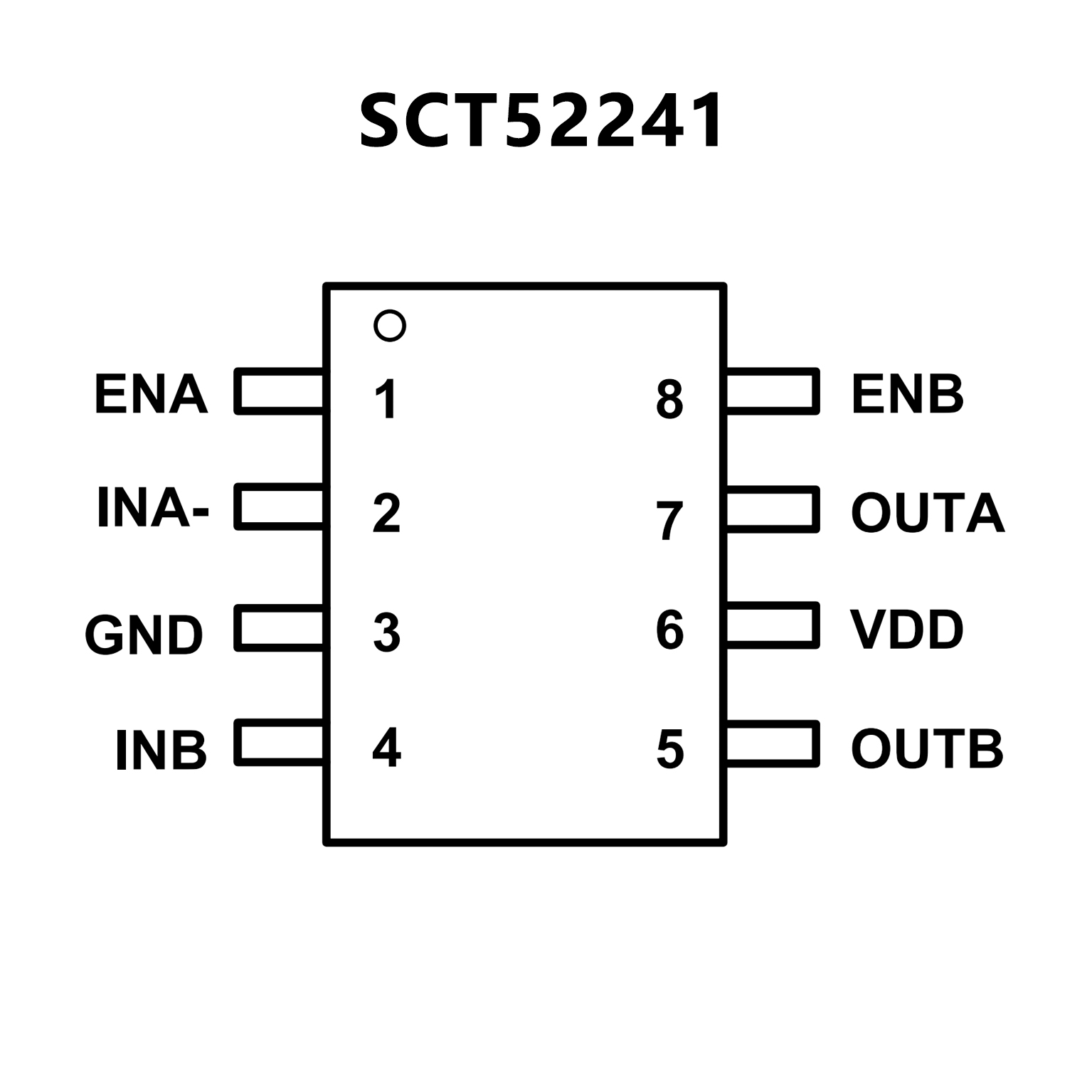

• Available in SOP-8 Package

• High Peak Output Current:1.5A
• Wide Operating Range: 4.5V to 18V
• High Capacitive Load
Drive Capability: 1000 pF in 25 nsec
• Short Delay Time: <40nsec Typ
• Consistent Delay Times With Changes in
Supply Voltage
• Low Supply Current
With Logic “1” Input : 4mA
With Logic “0” Input : 400µA
• Low Output Impedance: 7Ω
• Latch-Up Protected: Will Withstand >0.5A
Reverse Current: Down to – 5V
• Input Will Withstand Negative Inputs
• ESD Protected: 4kV
• Pinout Same as TC426/TC427/TC428
