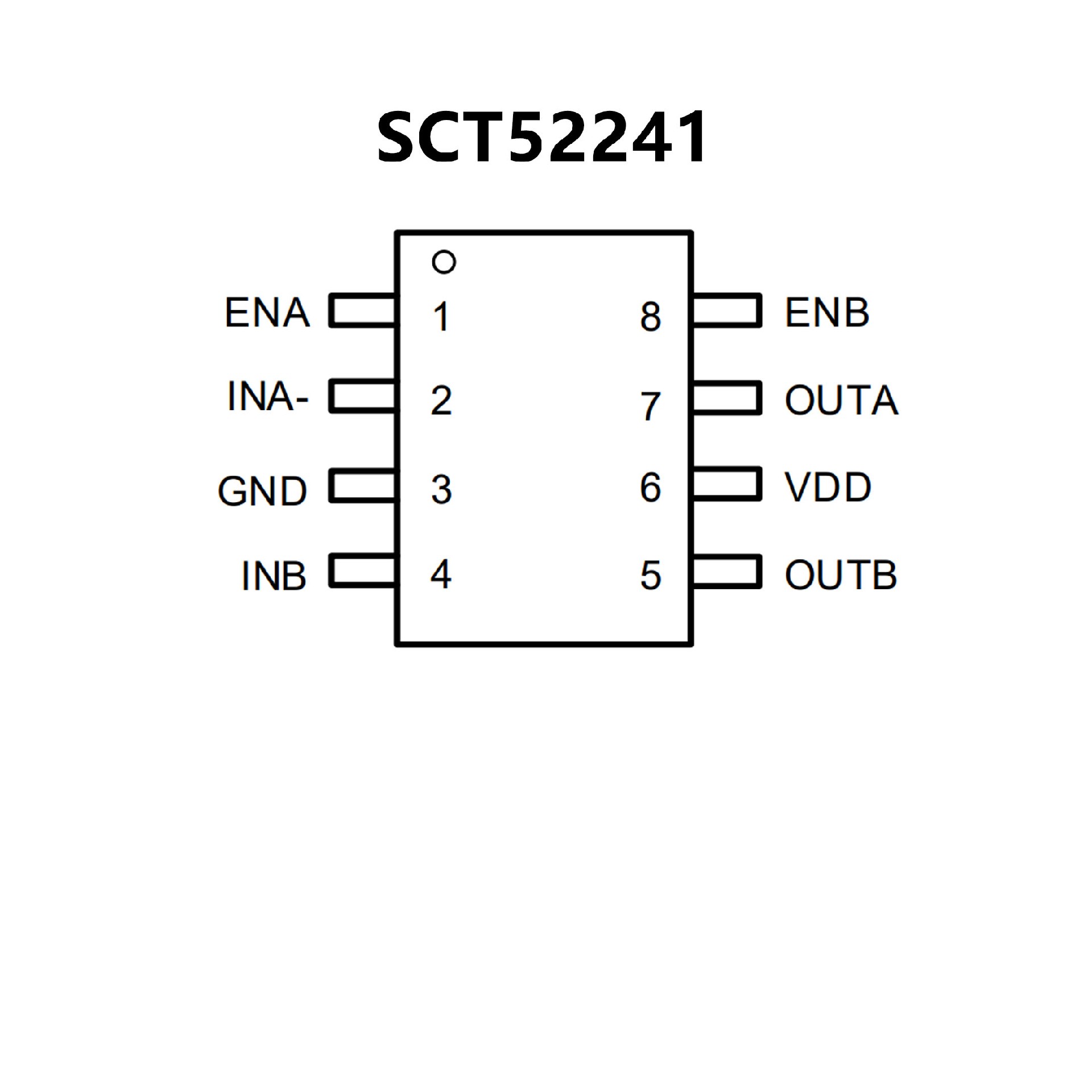

SCT52241.pdf• Wide Supply Voltage Range: 4.5V - 24V
• 4A Peak Source Current and 4A Peak Sink Current
• Negative Input Voltage Capability: Down to -5V
• TTL Compatible Input Logic Threshold
• Propagation Delay: 13ns
• Typical Rising and Falling Times: 8ns
• Low Quiescent Current: 55uA
• Output Low When Input Floating
• Independent Enable Logic for Each Channel
• Thermal Shutdown Protection: 170°C
• Available in SOP-8 Package
• Industry-Standard Pinout

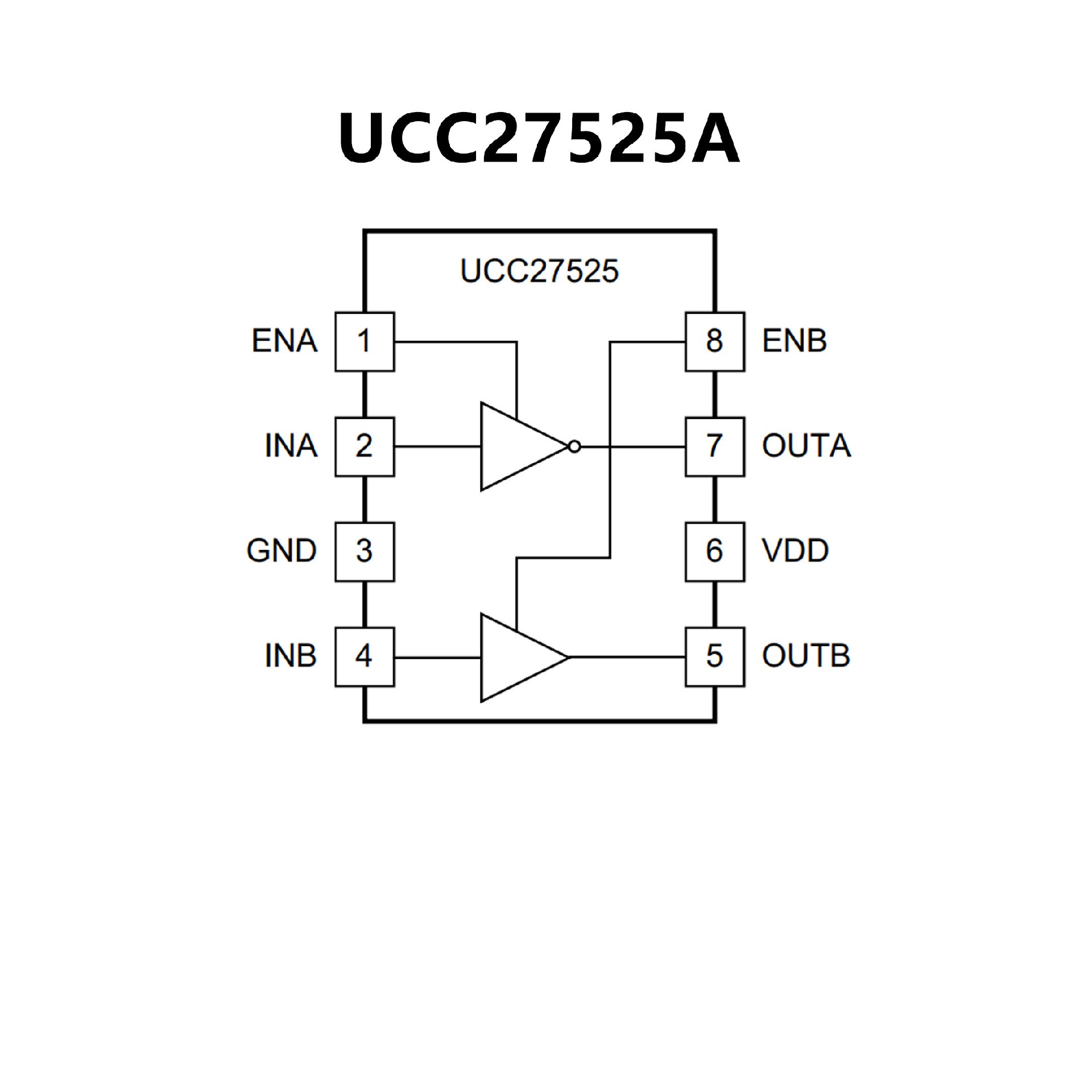

• Two Independent Gate-Drive Channels
• 5-A Peak Source and Sink-Drive Current
• Independent-Enable Function for Each Output
TTL and CMOS Compatible Logic Threshold
Independent of Supply Voltage
• Hysteretic-Logic Thresholds for High Noise Immunity
• Inputs and Enable Pin-Voltage Levels
Not Restricted by VDD Pin Bias Supply Voltage
• 4.5-V to 18-V Single-Supply Range
• Outputs Held Low During VDD-UVLO,
(Ensures Glitch-Free Operation at Power up and Power
Down)
• Fast Propagation Delays (13-ns Typical)
• Fast Rise and Fall Times (7-ns and 6-ns Typical)
• 1-ns Typical Delay Matching Between Two Channels
• Two Outputs are in Parallel for Higher Drive Current
• Outputs Held Low When Inputs Floating
• PDIP (8), SOIC (8), MSOP (8) PowerPAD™ and
• mm × 3-mm WSON-8 Package Options
• Operating Temperature Range of –40°C to 140°C
