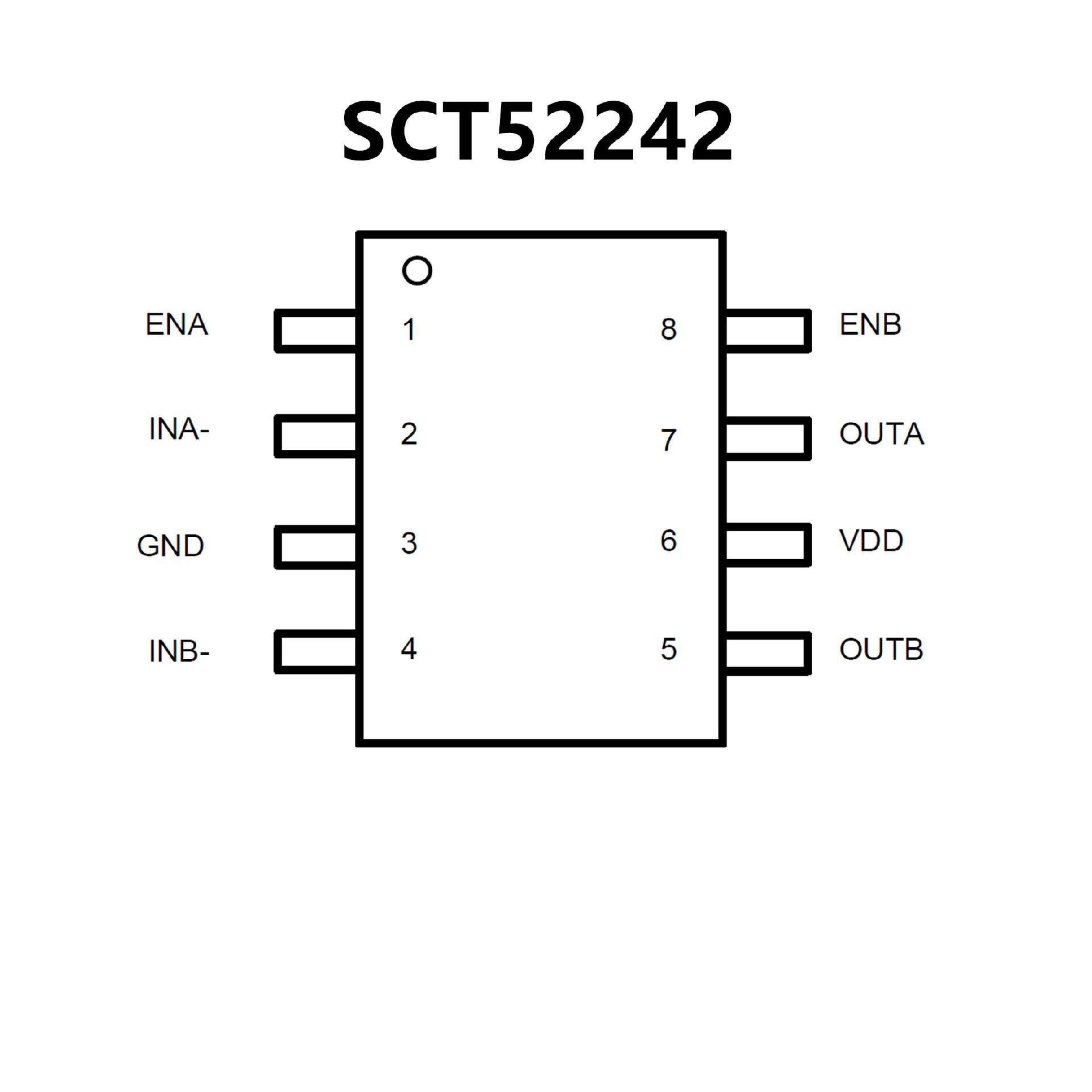

SCT52242.pdf• Wide Supply Voltage Range: 4.5V - 24V
• 4A Peak Source Current and 4A Peak SinkCurrent
• Stackable Output for Higher Driving Capability
• Negative Input Voltage Capability: Down to -5V
• TTL Compatible Input Logic Threshold
• Propagation Delay: 13ns
• Typical Rising and Falling Times: 8ns
• Typical Delay Matching: 1ns
• Low Quiescent Current: 55µA
• Output Low When Input Floating
• Independent Enable Logic for Each Channel
• Thermal Shutdown Protection: 170°C
• Available in SOP-8 Package

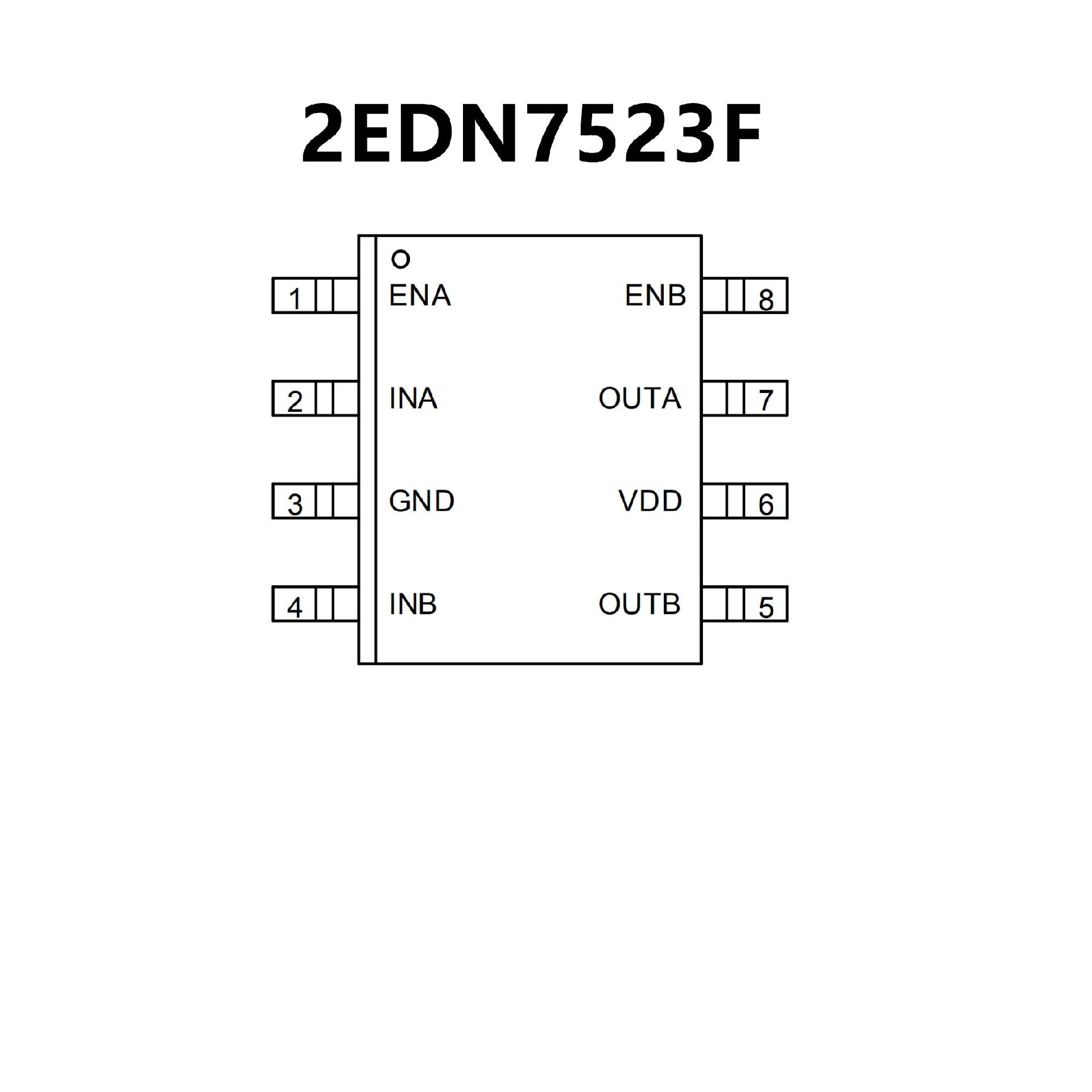

• Highly efficient SMPS enabled by 5 ns fast
slew rates and 17 ns propagation delay
precision for fast MOSFETand GaN switching
• 1 ns channel-to-channel propagation
delay accuracy enables safe use of
two channels in parallel
• Two independent 5 A channels
enable numerous deployment options
• Industry standard packages and
pinout ease system-design upgrades
