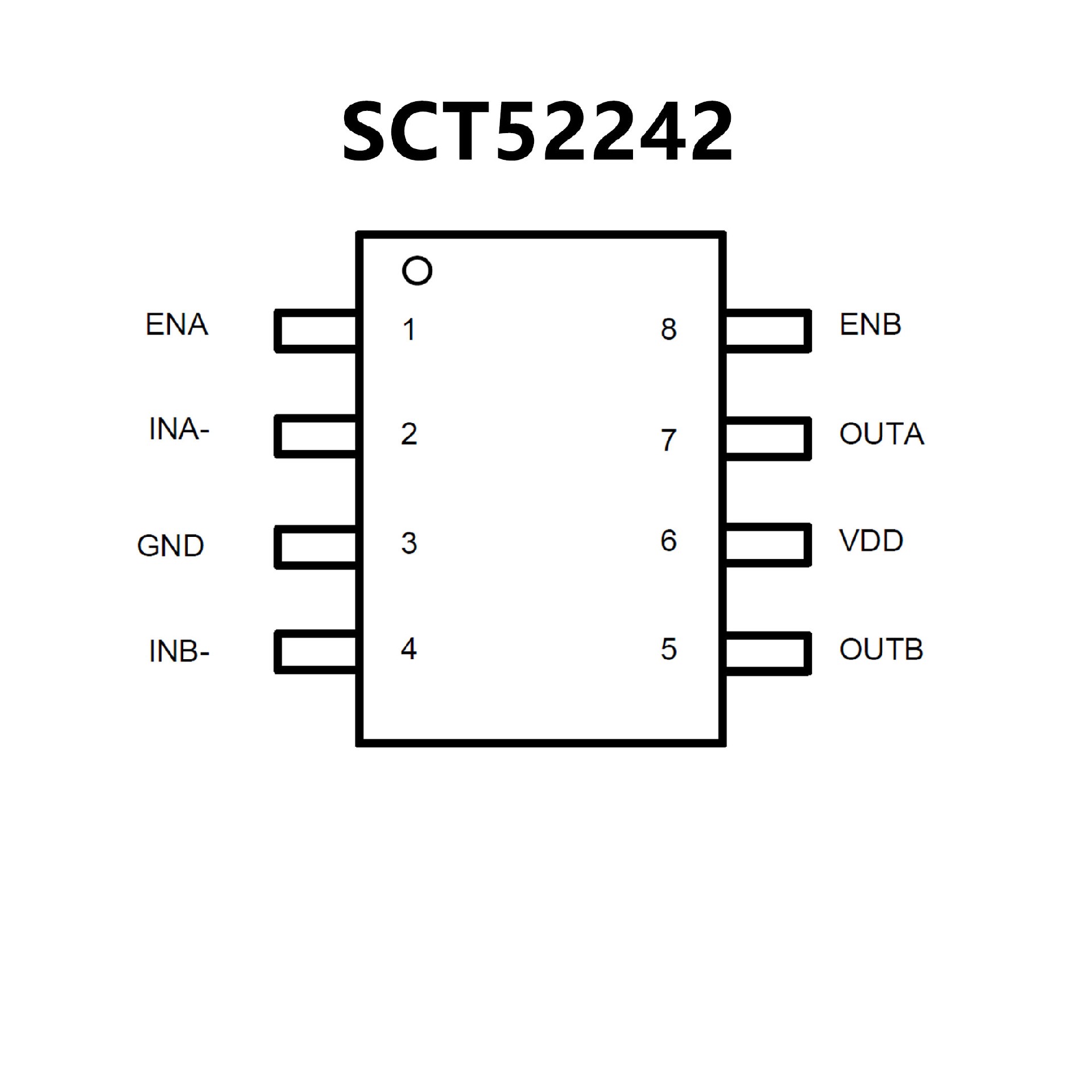

SCT52242.pdf• Wide Supply Voltage Range: 4.5V - 24V
• 4A Peak Source Current and 4A Peak SinkCurrent
• Stackable Output for Higher Driving Capability
• Negative Input Voltage Capability: Down to -5V
• TTL Compatible Input Logic Threshold
• Propagation Delay: 13ns
• Typical Rising and Falling Times: 8ns
• Typical Delay Matching: 1ns
• Low Quiescent Current: 55µA
• Output Low When Input Floating
• Independent Enable Logic for Each Channel
• Thermal Shutdown Protection: 170°C
• Available in SOP-8 Package

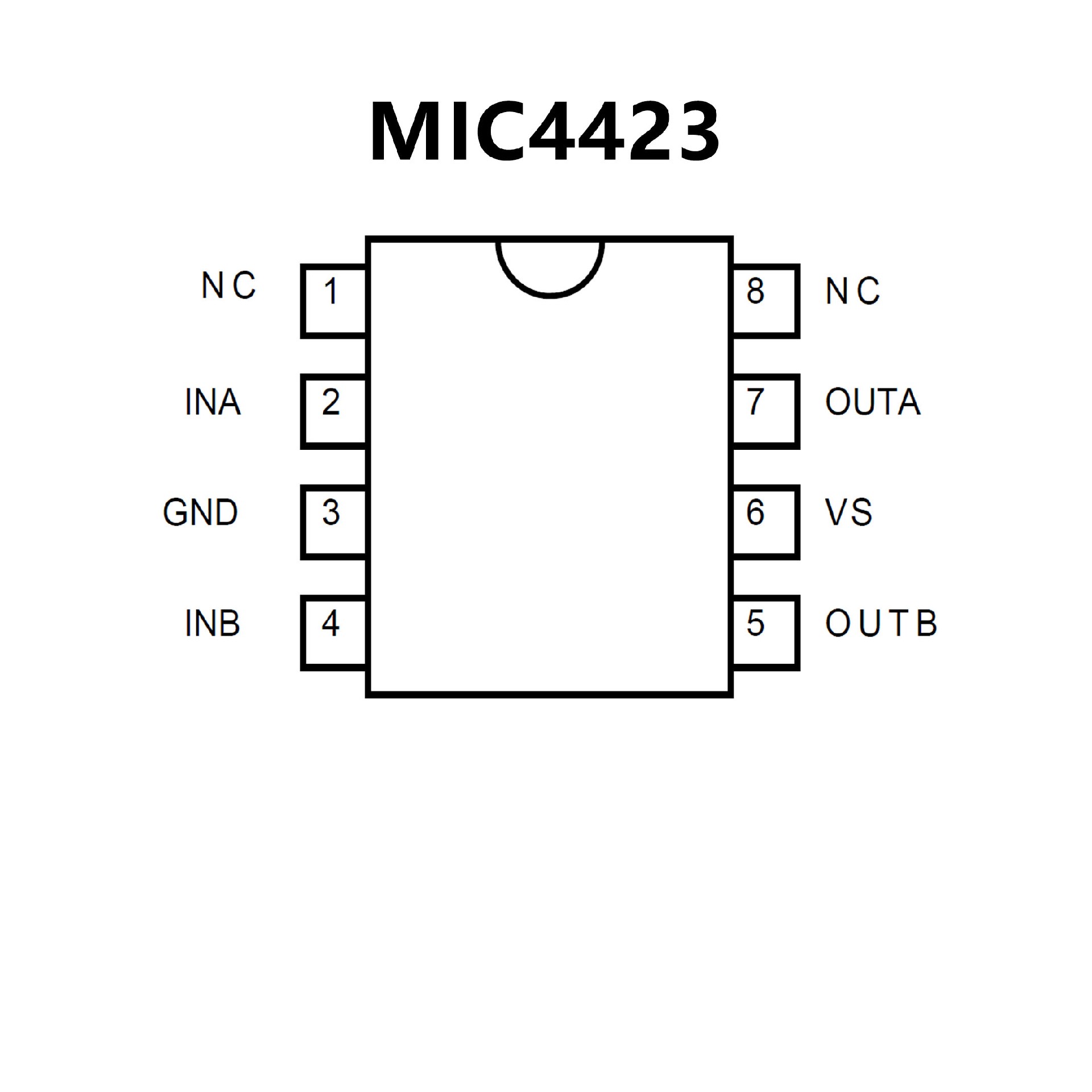

• Reliable, low-power bipolar/CMOS/DMOS construction
• Latch-up protected to >500mA reverse current
• Logic input withstands swing to –5V
• High 3A-peak output current
• Wide 4.5V to 18V operating range
• Drives 1800pF capacitance in 25ns
• Short <40ns typical delay time
• Delay times consistent with
in supply voltage change
• Matched rise and fall times
• TTL logic input independent of supply voltage
• Low equivalent 6pF input capacitance
• Low supply current
3.5mA with logic-1
input
350µA with logic-0 input
• Low 3.5Ω typical output impedance
• Output voltage swings within
25mV of ground or VS.
•‘426/7/8-, ‘1426/7/8-, ‘
4426/7/8-compatible pinout
• Inverting, noninverting, and
differential configurations
