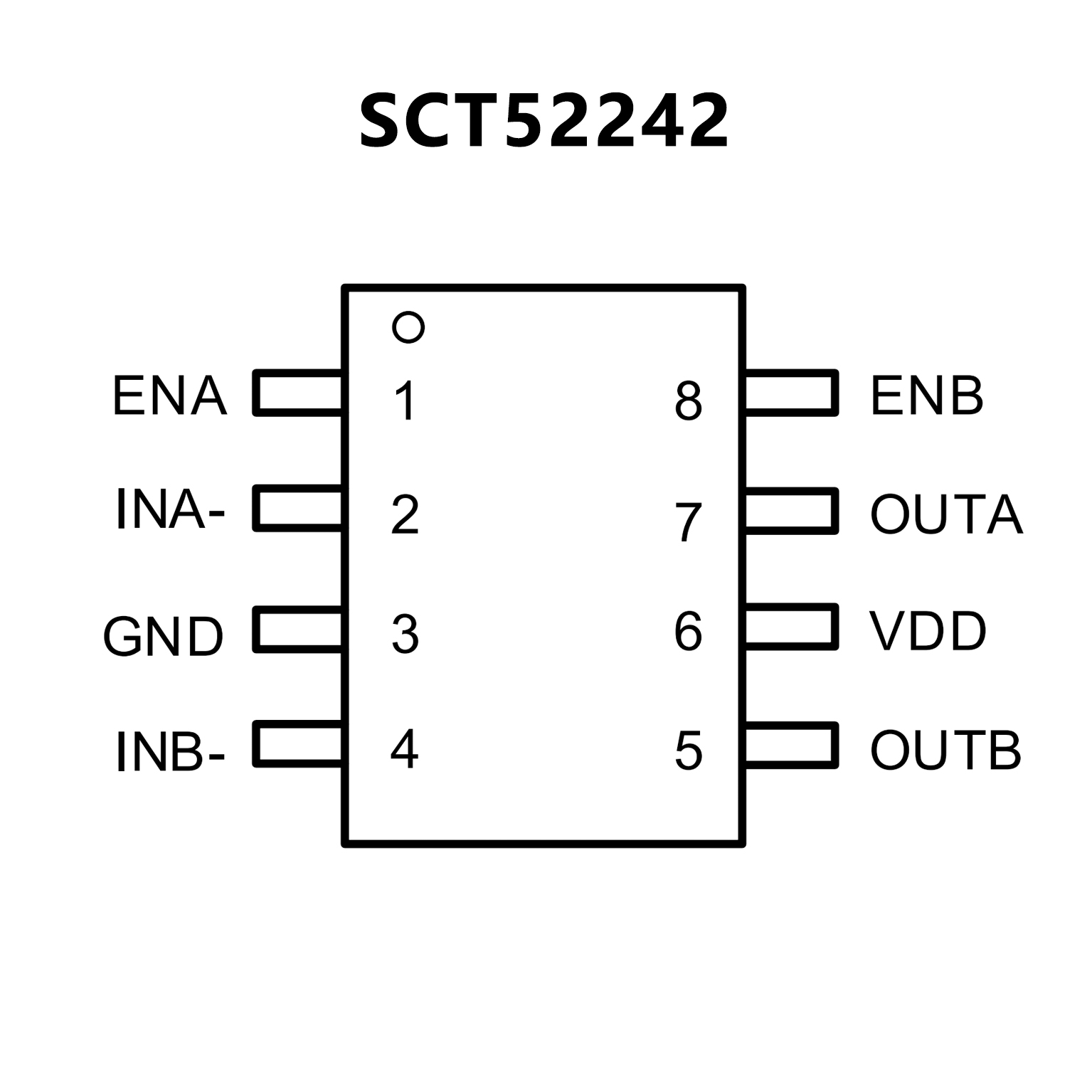

SCT52242.pdf• Wide Supply Voltage Range: 4.5V - 24V
• 4A Peak Source Current and 4A Peak SinkCurrent
• Stackable Output for Higher Driving Capability
• Negative Input Voltage Capability: Down to -5V
• TTL Compatible Input Logic Threshold
• Propagation Delay: 13ns
• Typical Rising and Falling Times: 8ns
• Typical Delay Matching: 1ns
• Low Quiescent Current: 55µA
• Output Low When Input Floating
• Independent Enable Logic for Each Channel
• Thermal Shutdown Protection: 170°C
• Available in SOP-8 Package

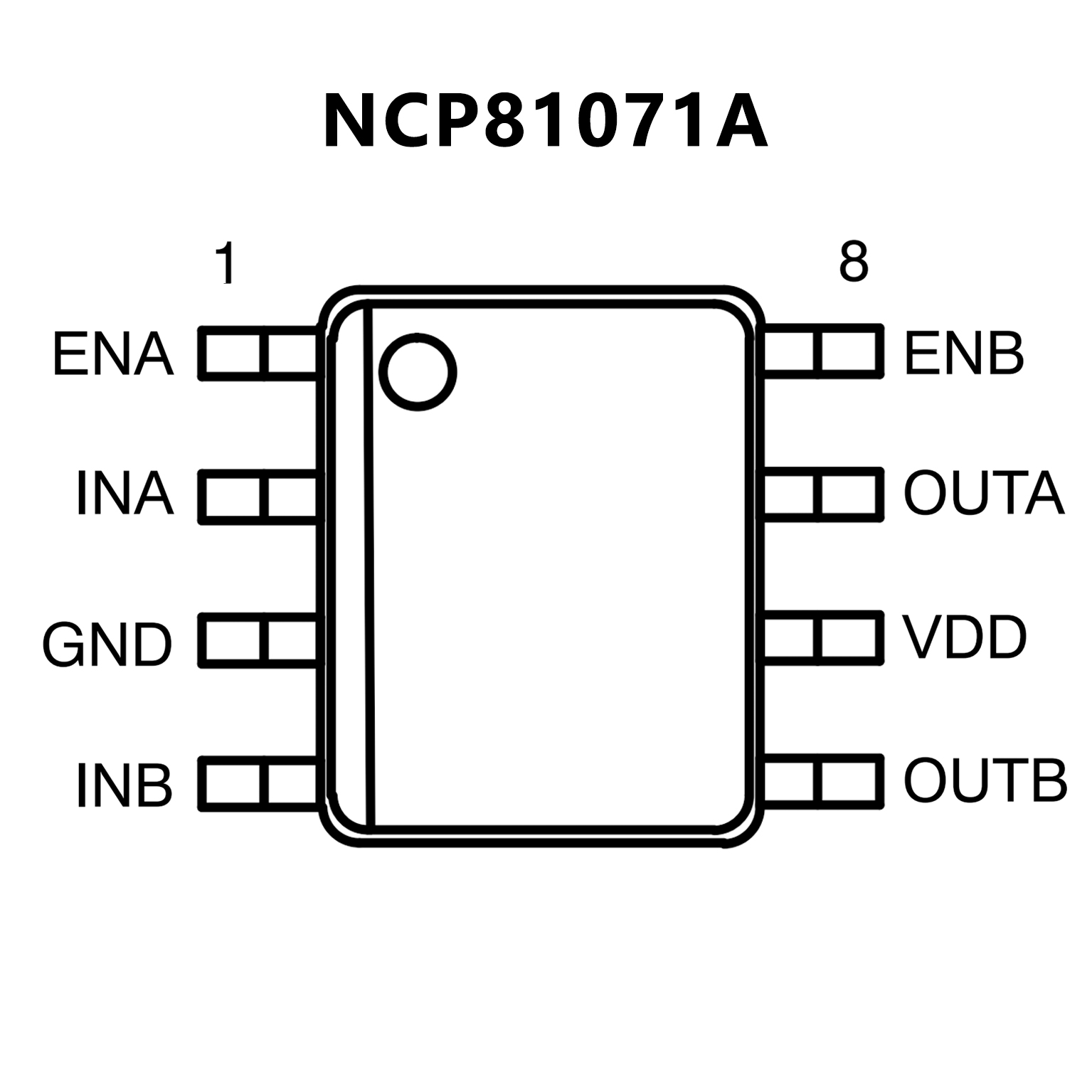

• High Current Drive Capability ±5 A
• TTL/CMOS Compatible Inputs
Independent of Supply Voltage
• Industry Standard Pin−out
• High Reverse Current Capability (6 A) Peak
• Enable Functions for Each Driver
• 8 ns Typical Rise and 8 ns Typical
Fall Times with 1.8 nF Load
• Typical Propagation Delay Times of
20 ns with Input Falling and 20
ns with Input Rising
• Input Voltage from 4.5 V to 20 V
• Dual Outputs can be Paralleled
for Higher Drive Current
• These Devices are Pb−Free, Halogen
Free/BFR Free and are RoHS Compliant
