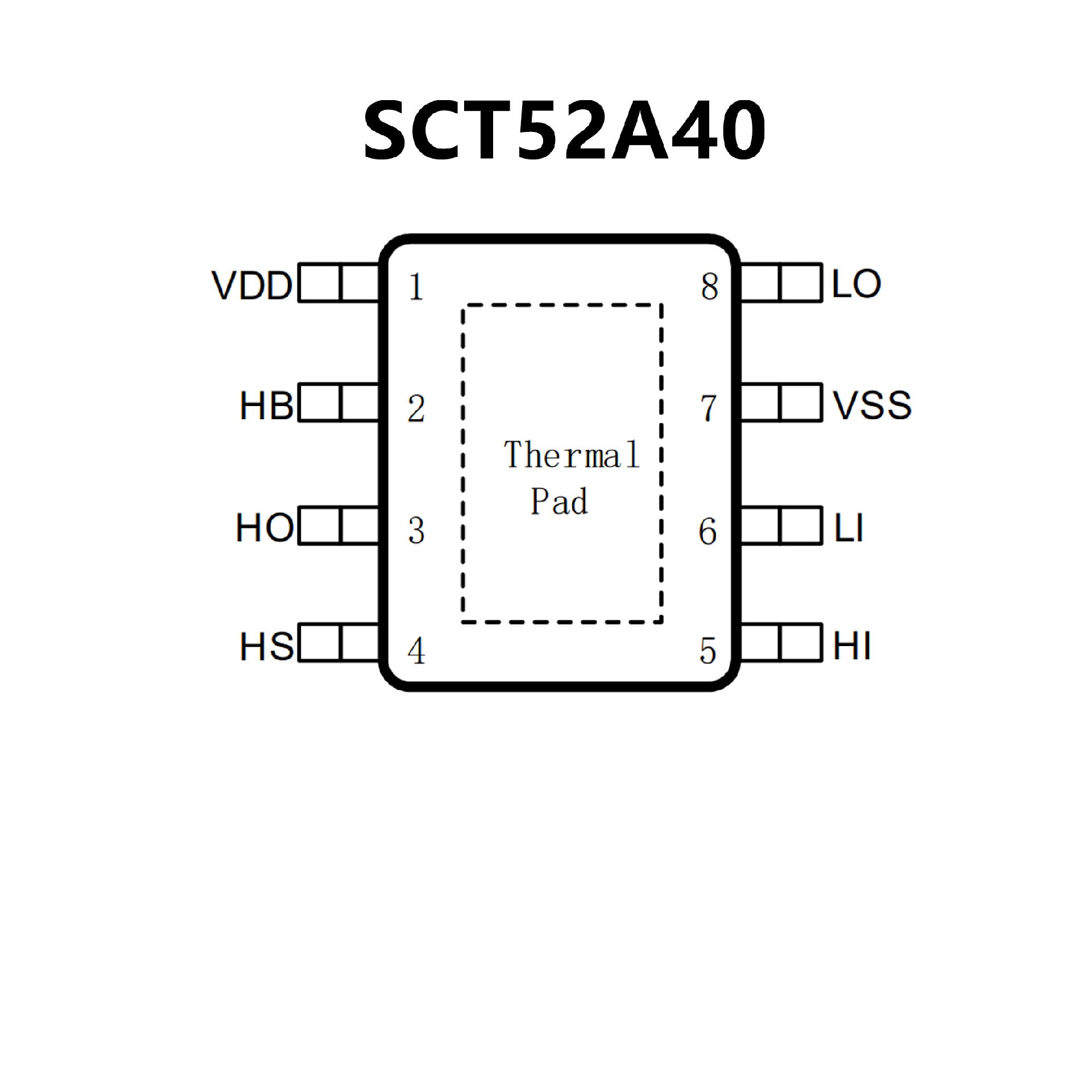

SCT52A40.pdf• Wide supply rail from 8V-24V
• Drives Both High-side and Low-side N-ChannelMOSFET
• 4A Peak Output Source and Sink Current
• Bootstrap Supply Voltage Range up to 120V
• Integrated Bootstrap Diode
• TTL Compatible Input, -10V Input Capability
• Quiescent Current 252uA
• 45ns Propagation Delay Times
• 2ns Delay Matching
• 7ns Rise and 4.5ns Fall Time with 1000pF Load
• 15ns Input Deglitching Time
• 40ns Minimum Pulse Width
• Supply Rail Under-Voltage Lockout (UVLO)
• Operation from -40°C~150ºC
• Available in SOP-8L, ESOP-8L, DFN-9L 3mm x3mm,
DFN-10L 3mm x 3mm and DFN-8L 4mm x4mm Package
• Industry-standard-compatible pinout
• High current drive capability
• Precise threshold shutdown comparator
• UVLO with hysteresis
• Overtemperature warning signal
• Overtemperature shutdown
• 3.3 V-compatible inputs
• 10 ns typical rise time and fall time @ 2.2 nF load
• Matched propagation delays between channels
• Fast propagation delay
• 9.5 V to 18 V supply voltage

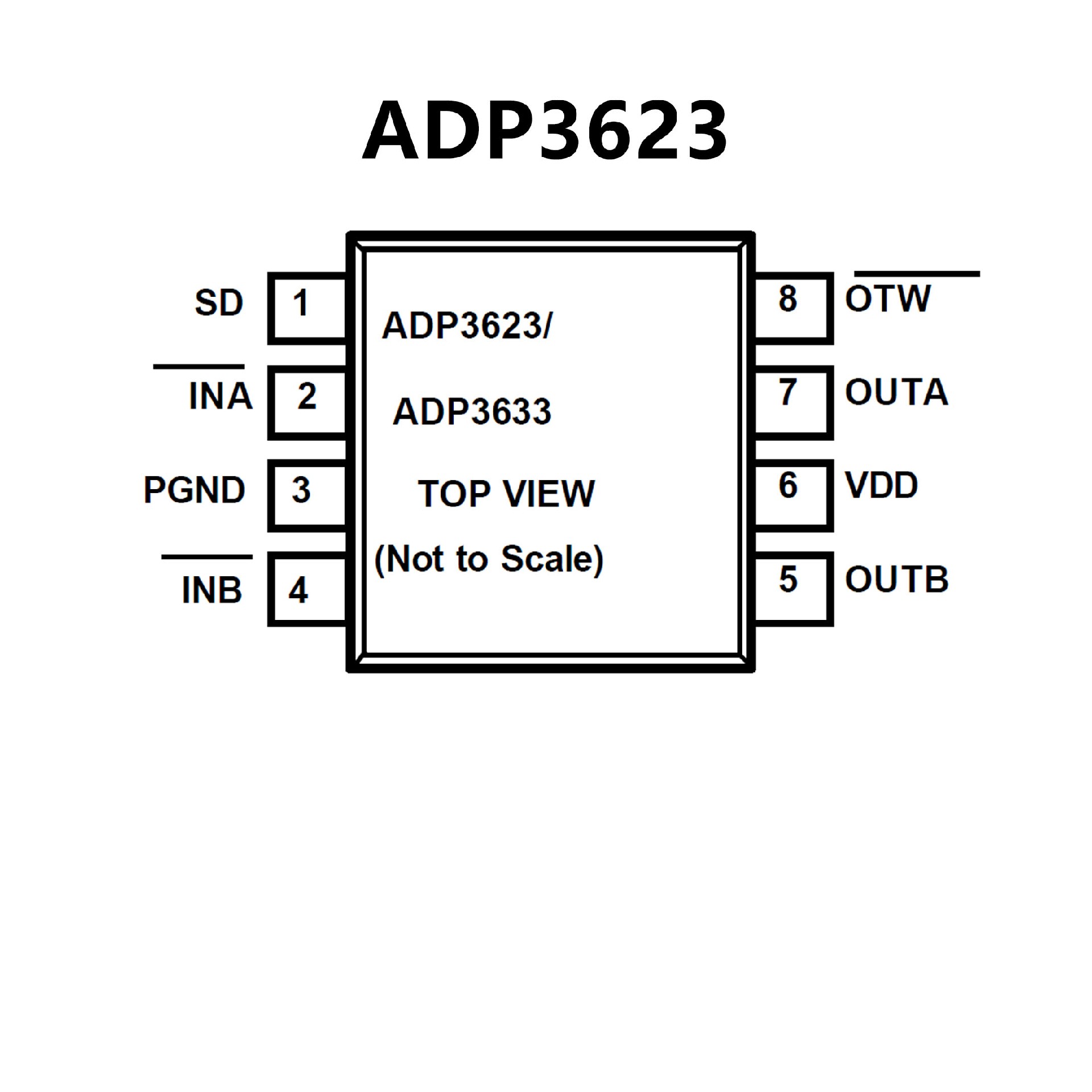

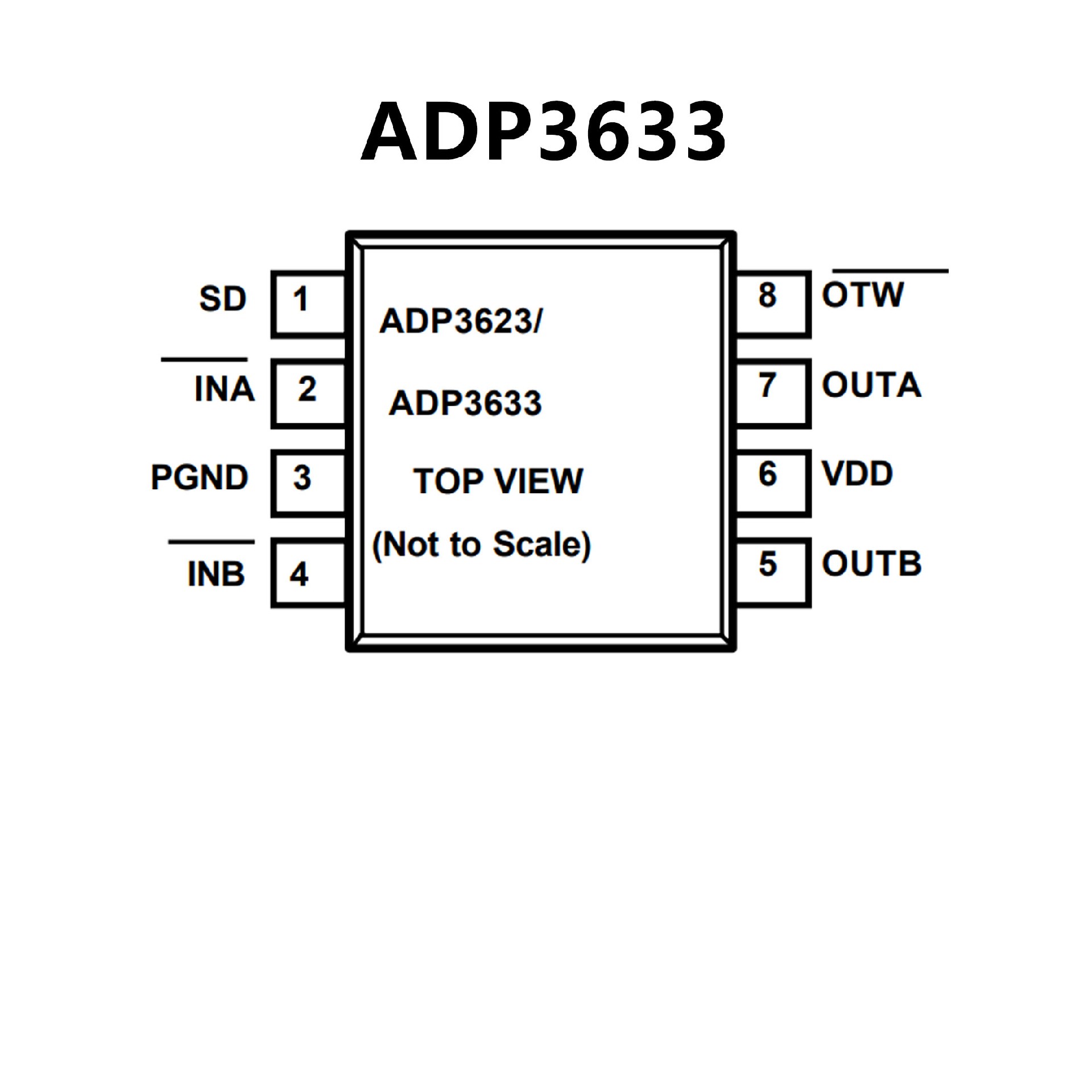

(ADP3633/ADP3634/ADP3635)
• 4.5 V to 18 V supply voltage
(ADP3623/ADP3624/ADP3625)
• Parallelable dual outputs
• Rated from −40°C to +85°C ambient temperature
• Thermally enhanced packages,
• 8-lead SOIC_N_EP and 8-lead MINI_SO_EP
