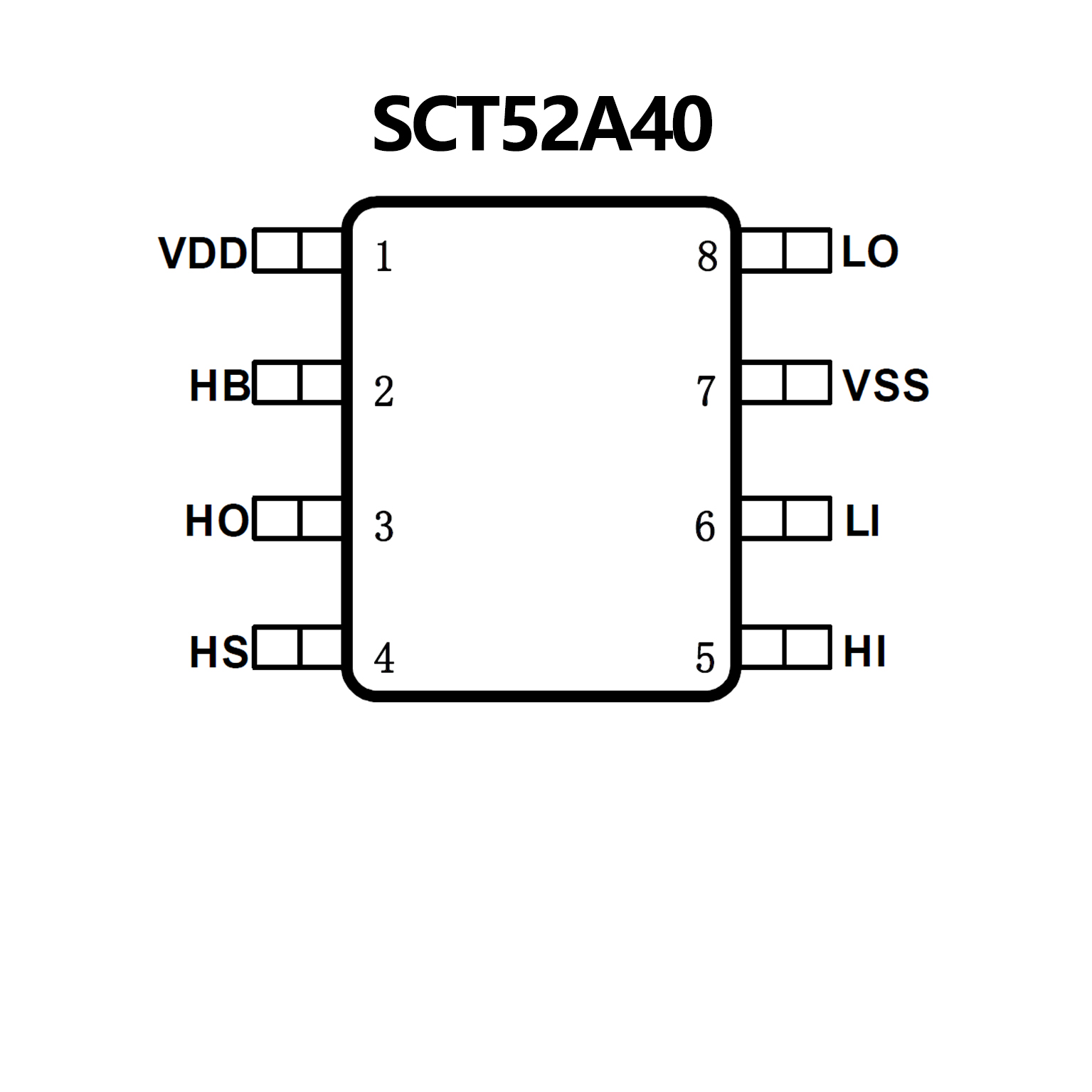

SCT52A40.pdf• Wide supply rail from 8V-24V
• Drives Both High-side and Low-side N-Channel MOSFET
• 4A Peak Output Source and Sink Current
• Bootstrap Supply Voltage Range up to 120V
• Integrated Bootstrap Diode
• TTL Compatible Input, -10V Input Capability
• Quiescent Current 252uA
• 45ns Propagation Delay Times
• 2ns Delay Matching
• 7ns Rise and 4.5ns Fall Time with 1000pF Load
• 15ns Input Deglitching Time
• 40ns Minimum Pulse Width
• Supply Rail Under-Voltage Lockout (UVLO)
• Operation from -40°C~150ºC
• Available in SOP-8L, ESOP-8L, DFN-9L 3mm x 3mm,
DFN-10L 3mm x 3mm and DFN-8L 4mm x 4mm Package

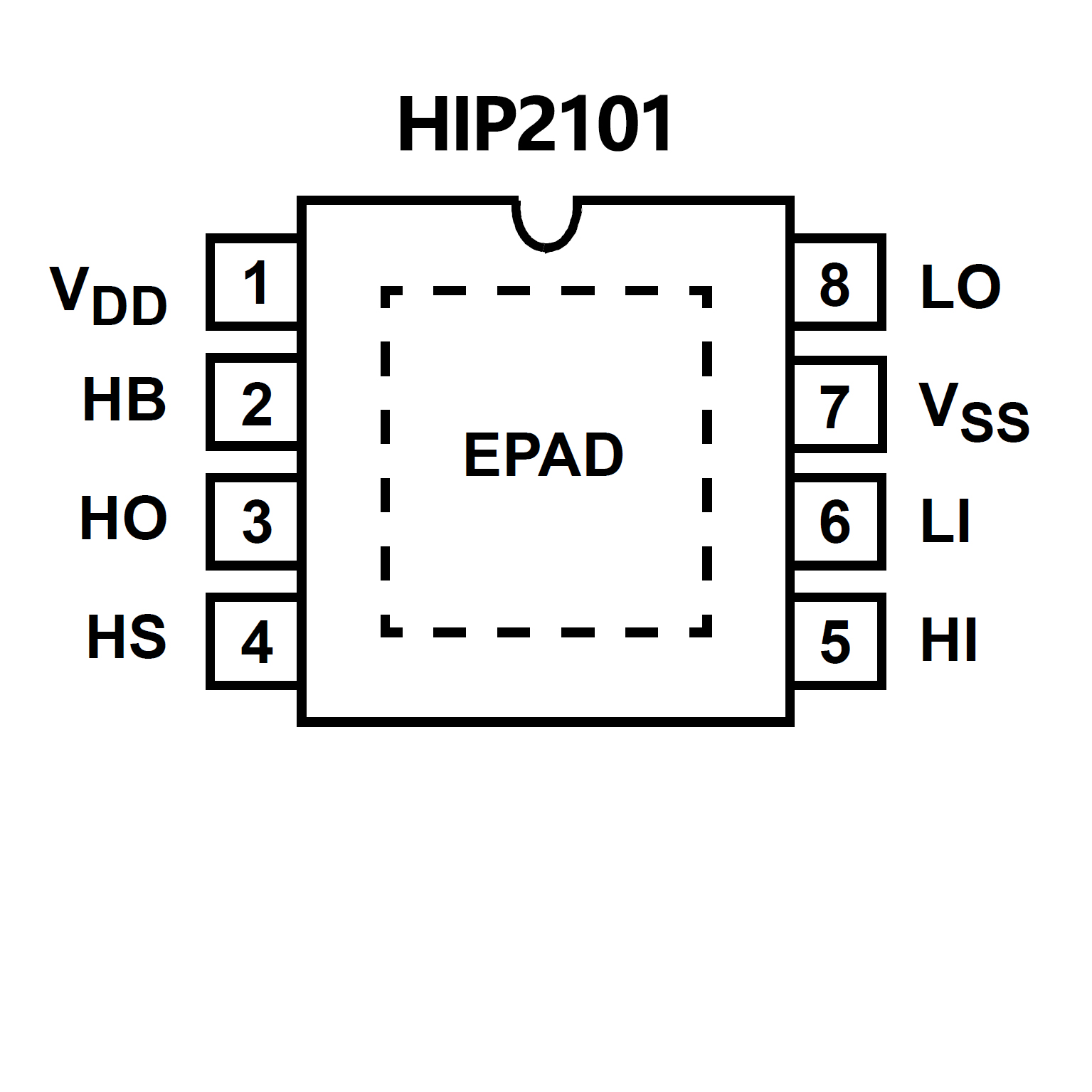

• Drives N-Channel MOSFET Half Bridge
• SOIC, EPSOIC, QFN and DFN Package Options
• SOIC, EPSOIC and DFN Packages Compliant with 100V
Conductor Spacing Guidelines of IPC-2221
• Pb-free Product Available (RoHS Compliant)
• Bootstrap Supply Max Voltage to 114VDC
• On-Chip 1Ω Bootstrap Diode
• Fast Propagation Times for Multi-MHz Circuits
• Drives 1000pF Load with Rise and Fall Times Typ. 10ns
• TTL/CMOS Input Thresholds Increase Flexibility
• Independent Inputs for Non-Half Bridge Topologies
• No Start-Up Problems
• Outputs Unaffected by Supply Glitches, HS Ringing Below
Ground, or HS Slewing at High dv/dt
• Low Power Consumption
• Wide Supply Range
• Supply Undervoltage Protection
• 3Ω Output Driver Resistance
• QFN/DFN Package:
Compliant to JEDEC PUB95 MO-220
QFN - Quad Flat No Leads - Package Outline
Near Chip Scale Package footprint, which improves
PCB efficiency and has a thinner profile
