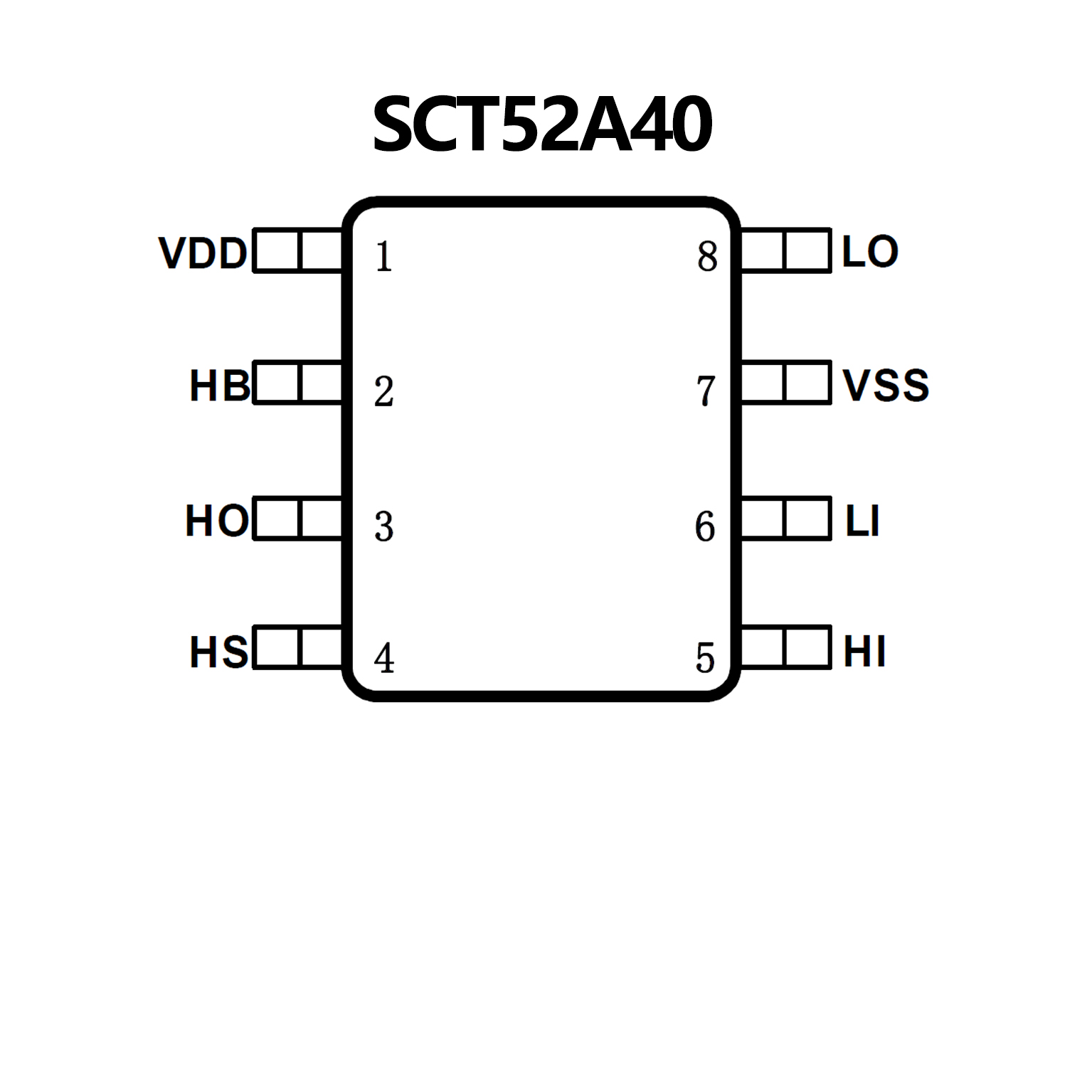

SCT52A40.pdf• Wide supply rail from 8V-24V
• Drives Both High-side and Low-side N-Channel MOSFET
• 4A Peak Output Source and Sink Current
• Bootstrap Supply Voltage Range up to 120V
• Integrated Bootstrap Diode
• TTL Compatible Input, -10V Input Capability
• Quiescent Current 252uA
• 45ns Propagation Delay Times
• 2ns Delay Matching
• 7ns Rise and 4.5ns Fall Time with 1000pF Load
• 15ns Input Deglitching Time
• 40ns Minimum Pulse Width
• Supply Rail Under-Voltage Lockout (UVLO)
• Operation from -40°C~150ºC
• Available in SOP-8L, ESOP-8L, DFN-9L 3mm x 3mm,
DFN-10L 3mm x 3mm and DFN-8L 4mm x 4mm Package

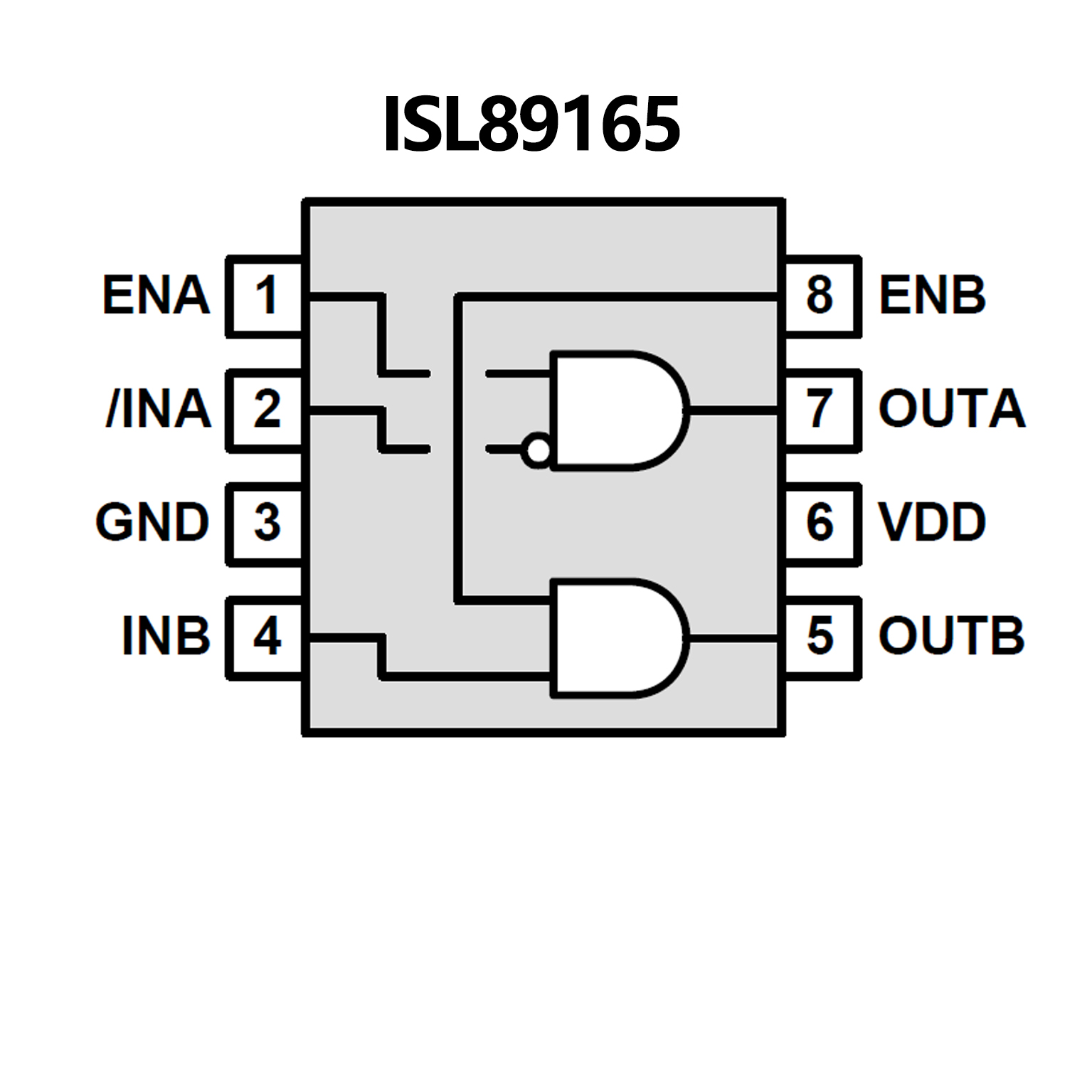

• Dual output, 6A peak currents, can be paralleled
• Dual AND-ed input logic, (input and enable)
• Typical ON-resistance <1Ω
• Specified Miller plateau drive currents
• Very low thermal impedance (θJC = 3°C/W)
• Hysteretic Input logic levels for 3.3V CMOS,
5V CMOS, TTL, and Logic levels proportional to VDD
• Precision threshold inputs for time delays
with external RC components
• 20ns rise and fall time driving a 10nF load.
