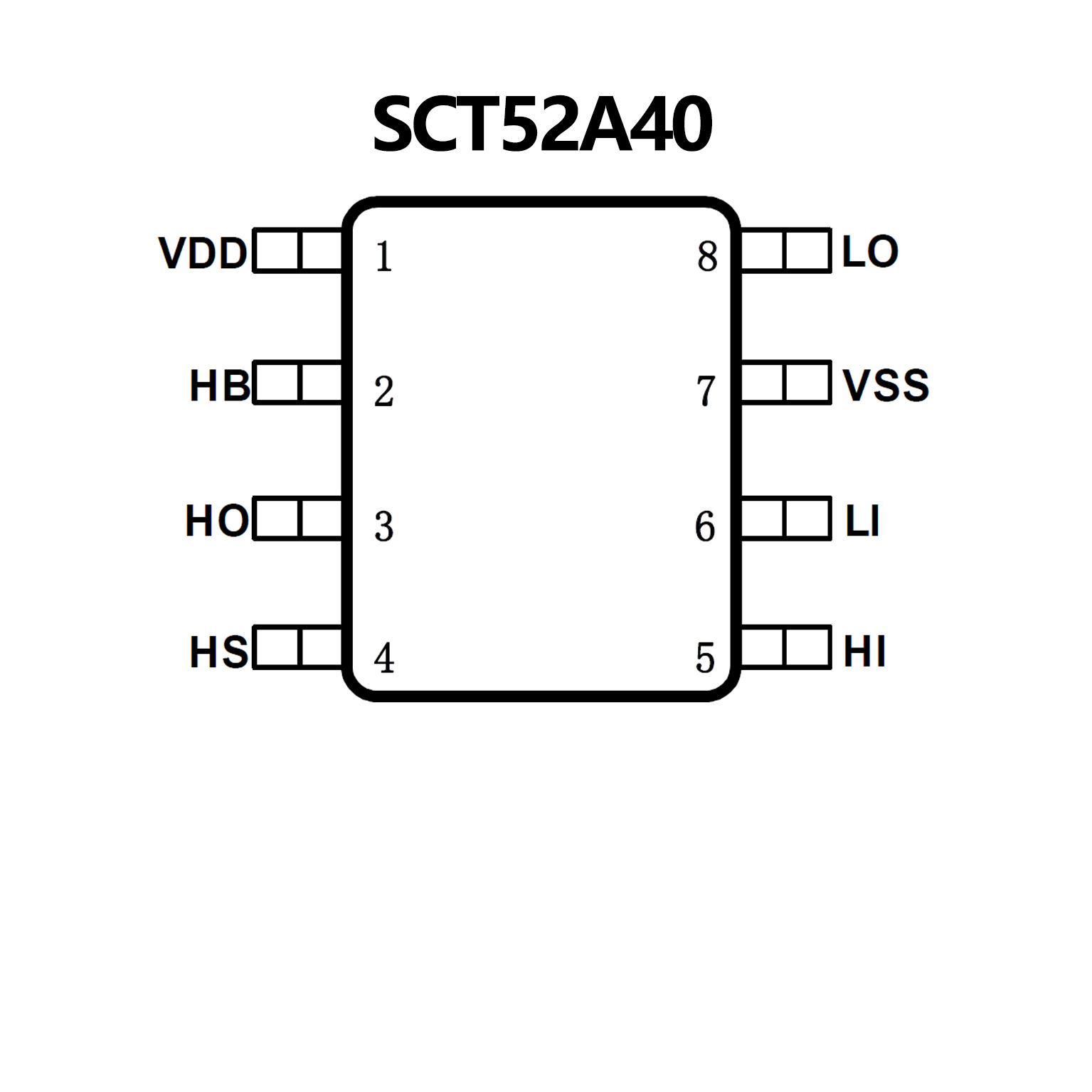

SCT52A40.pdf• Wide supply rail from 8V-24V
• Drives Both High-side and Low-side N-Channel MOSFET
• 4A Peak Output Source and Sink Current
• Bootstrap Supply Voltage Range up to 120V
• Integrated Bootstrap Diode
• TTL Compatible Input, -10V Input Capability
• Quiescent Current 252uA
• 45ns Propagation Delay Times
• 2ns Delay Matching
• 7ns Rise and 4.5ns Fall Time with 1000pF Load
• 15ns Input Deglitching Time
• 40ns Minimum Pulse Width
• Supply Rail Under-Voltage Lockout (UVLO)
• Operation from -40°C~150ºC
• Available in SOP-8L, ESOP-8L, DFN-9L 3mm x 3mm,
DFN-10L 3mm x 3mm and DFN-8L 4mm x 4mm Package
• Drives N-channel MOSFET half-bridge
• Space saving DFN package
• DFN package compliant with 100V conductor spacing
guidelines per IPC-2221
• Pb-free (RoHS compliant)
• Bootstrap supply maximum voltage to 114VDC
• On-chip 1Ω bootstrap diode
• Fast propagation times for multi-MHz circuits
• Drives 1nF load with typical rise/fall times of 16ns

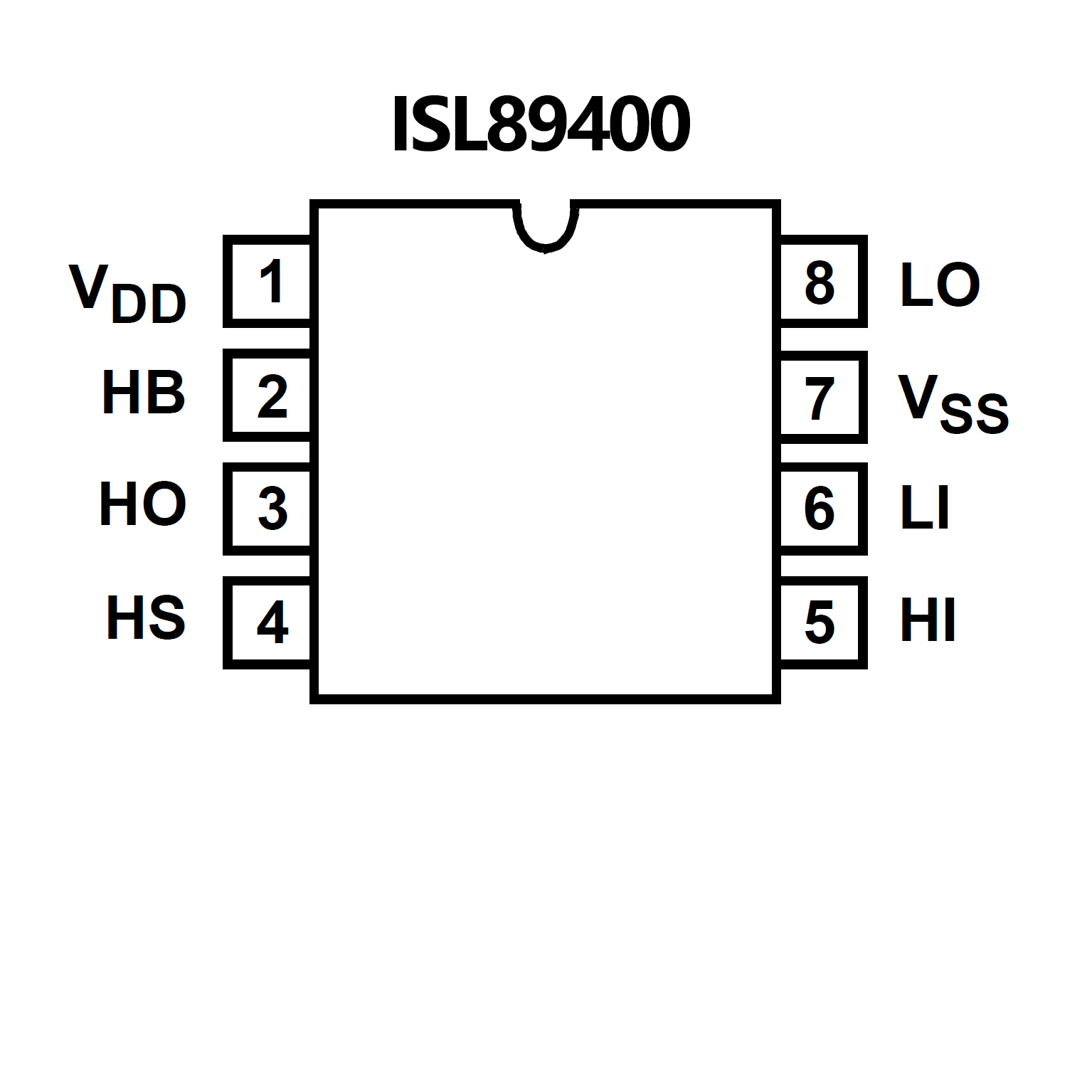

• CMOS compatible input thresholds (ISL89400)

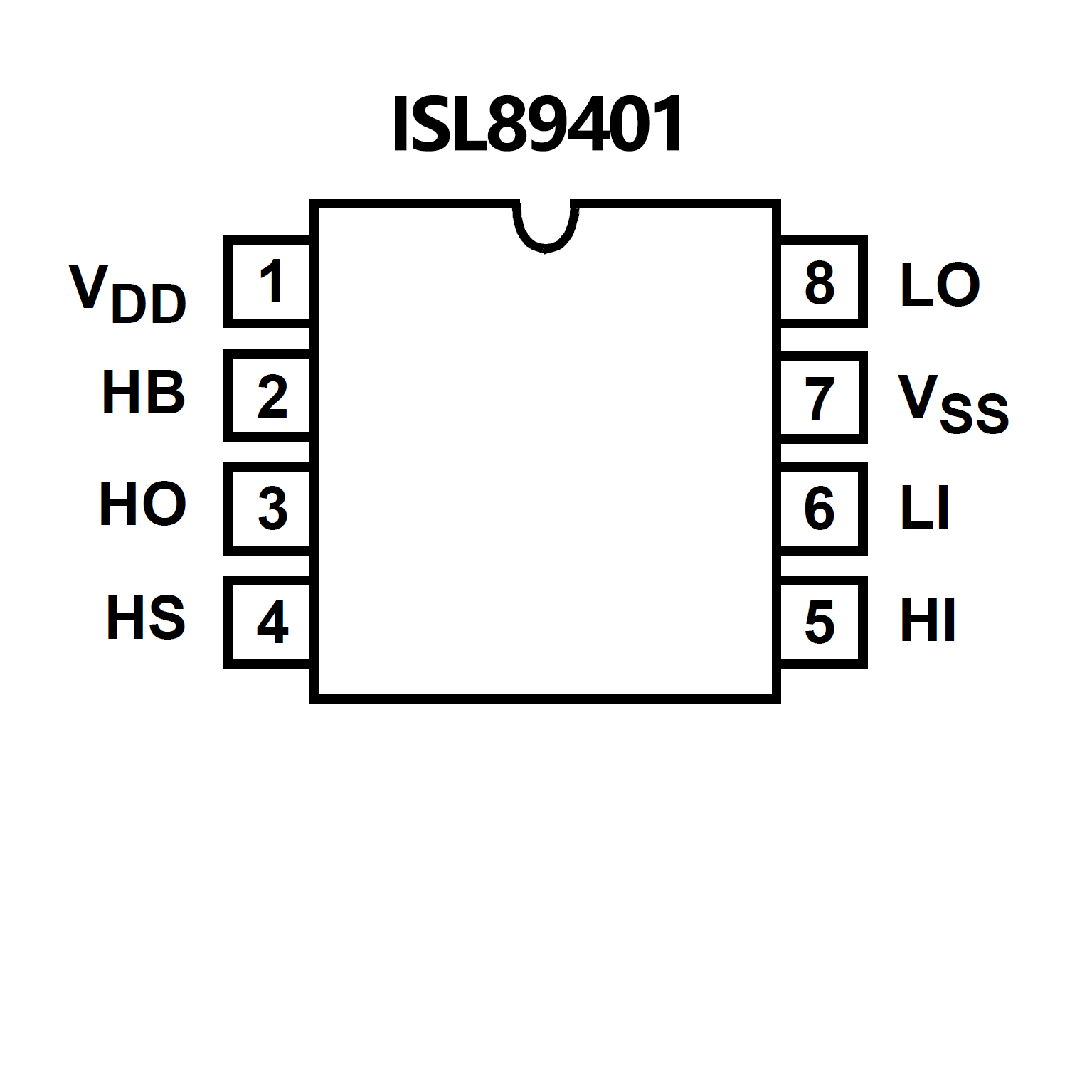

• 3.3V/TTL compatible input thresholds (ISL89401)
• Independent inputs provide flexibility
• No start-up problems
• Outputs unaffected by supply glitches, HS ringing below
ground or HS slewing at high dV/dt
• Low power consumption
• Wide supply voltage range (9V to 14V)
• Supply undervoltage protection
• 4.0Ω typical output pull-up/pull-down resistance
