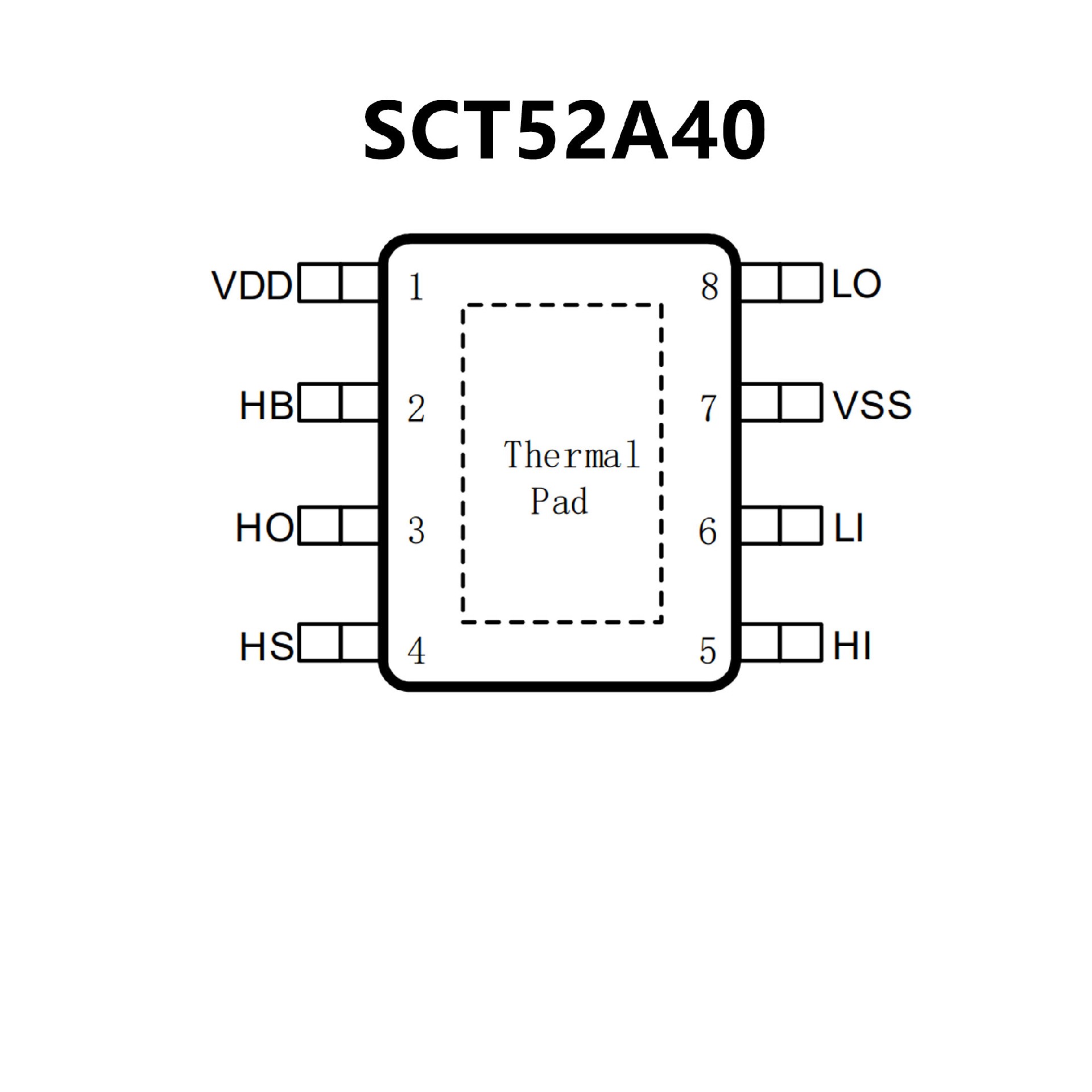

SCT52A40.pdf• Wide supply rail from 8V-24V
• Drives Both High-side and Low-side N-ChannelMOSFET
• 4A Peak Output Source and Sink Current
• Bootstrap Supply Voltage Range up to 120V
• Integrated Bootstrap Diode
• TTL Compatible Input, -10V Input Capability
• Quiescent Current 252µA
• 45ns Propagation Delay Times
• 2ns Delay Matching
• 7ns Rise and 4.5ns Fall Time with 1000pF Load
• 15ns Input Deglitching Time
• 40ns Minimum Pulse Width
• Supply Rail Under-Voltage Lockout (UVLO)
• Operation from -40°C~150ºC
• Available in SOP-8L, ESOP-8L, DFN-9L 3mm x3mm,
DFN-10L 3mm x 3mm and DFN-8L 4mm x4mm Package

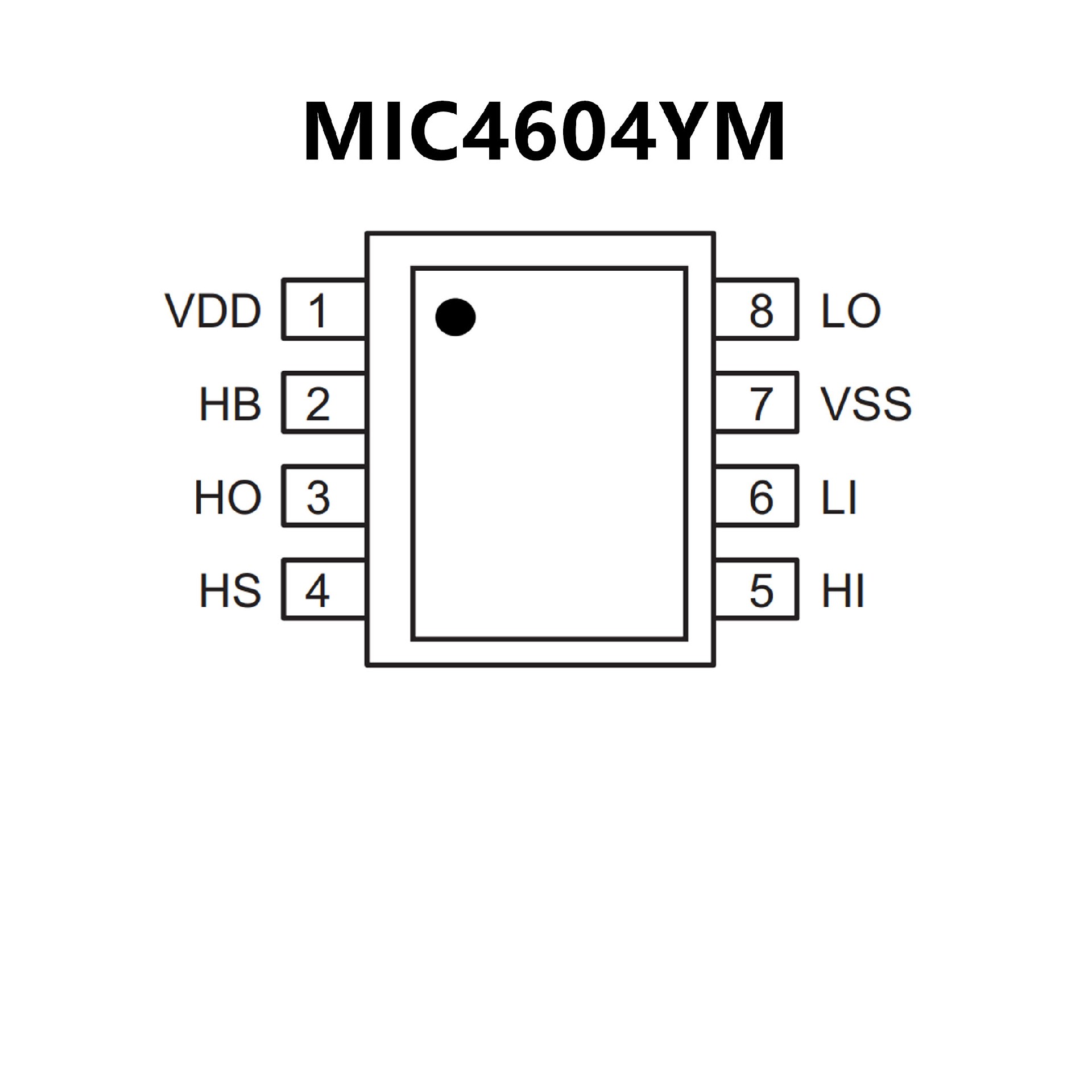

• 5.5V to 16V Gate Drive Supply Voltage Range
• Drives High-Side and Low-Side N-Channel
MOSFETs with Independent Inputs
• TTL Input Thresholds
• On-Chip Bootstrap Diode
• Fast 39 ns Propagation Times
• Drives 1000 pF Load with 20 ns Rise and FallTimes
• Low Power Consumption
• Supplies Undervoltage Protection
• –40°C to +125°C Junction Temperature Range
