• Wide supply rail from 8V-24V

• Drives Both High-side and Low-side N-Channel MOSFET

• 4A Peak Output Source and Sink Current

• Bootstrap Supply Voltage Range up to 120V

• Integrated Bootstrap Diode

• TTL Compatible Input, -10V Input Capability

• Quiescent Current 252uA

• 45ns Propagation Delay Times

• 2ns Delay Matching

• 7ns Rise and 4.5ns Fall Time with 1000pF Load

• 15ns Input Deglitching Time

• 40ns Minimum Pulse Width

• Supply Rail Under-Voltage Lockout (UVLO)

• Operation from -40°C~150ºC

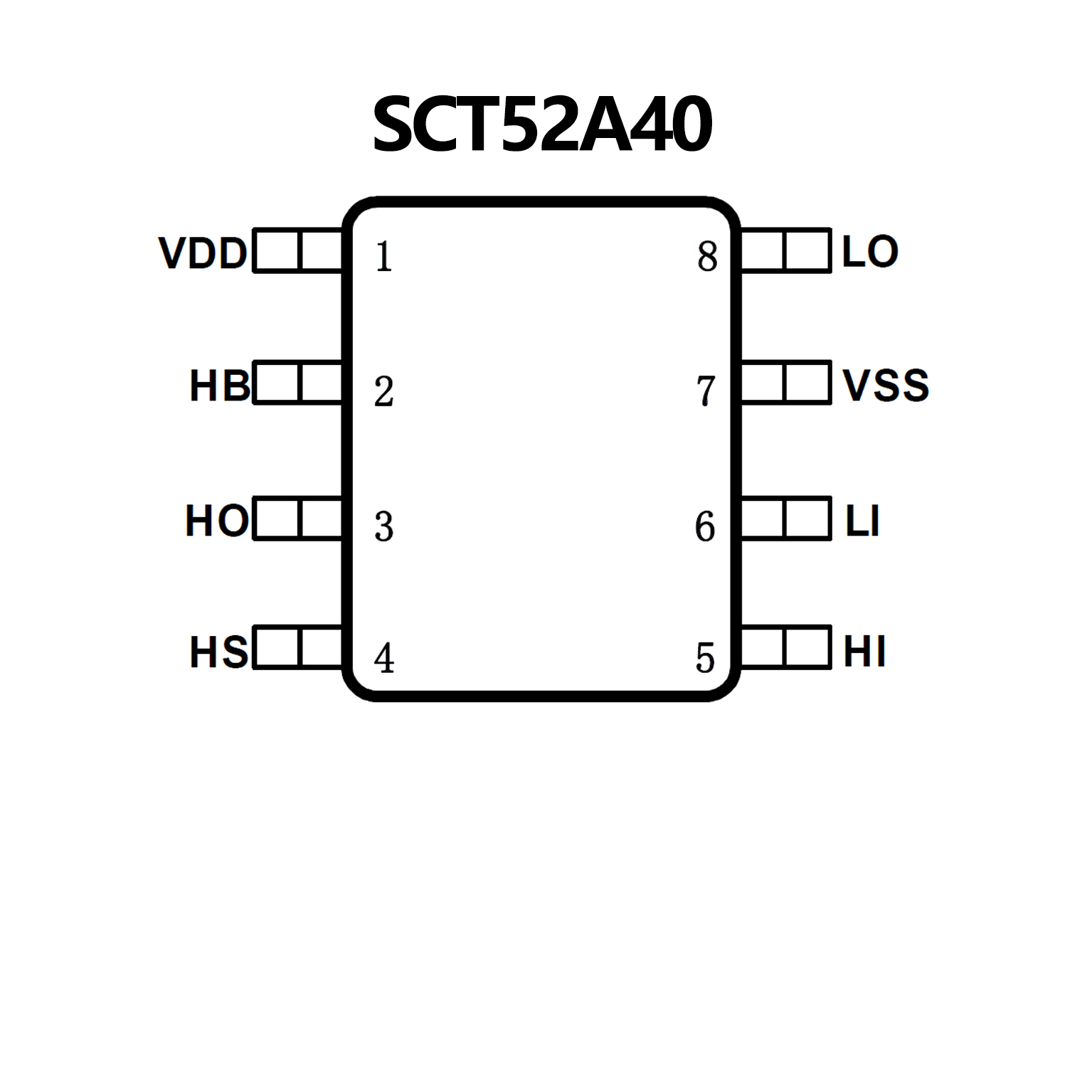

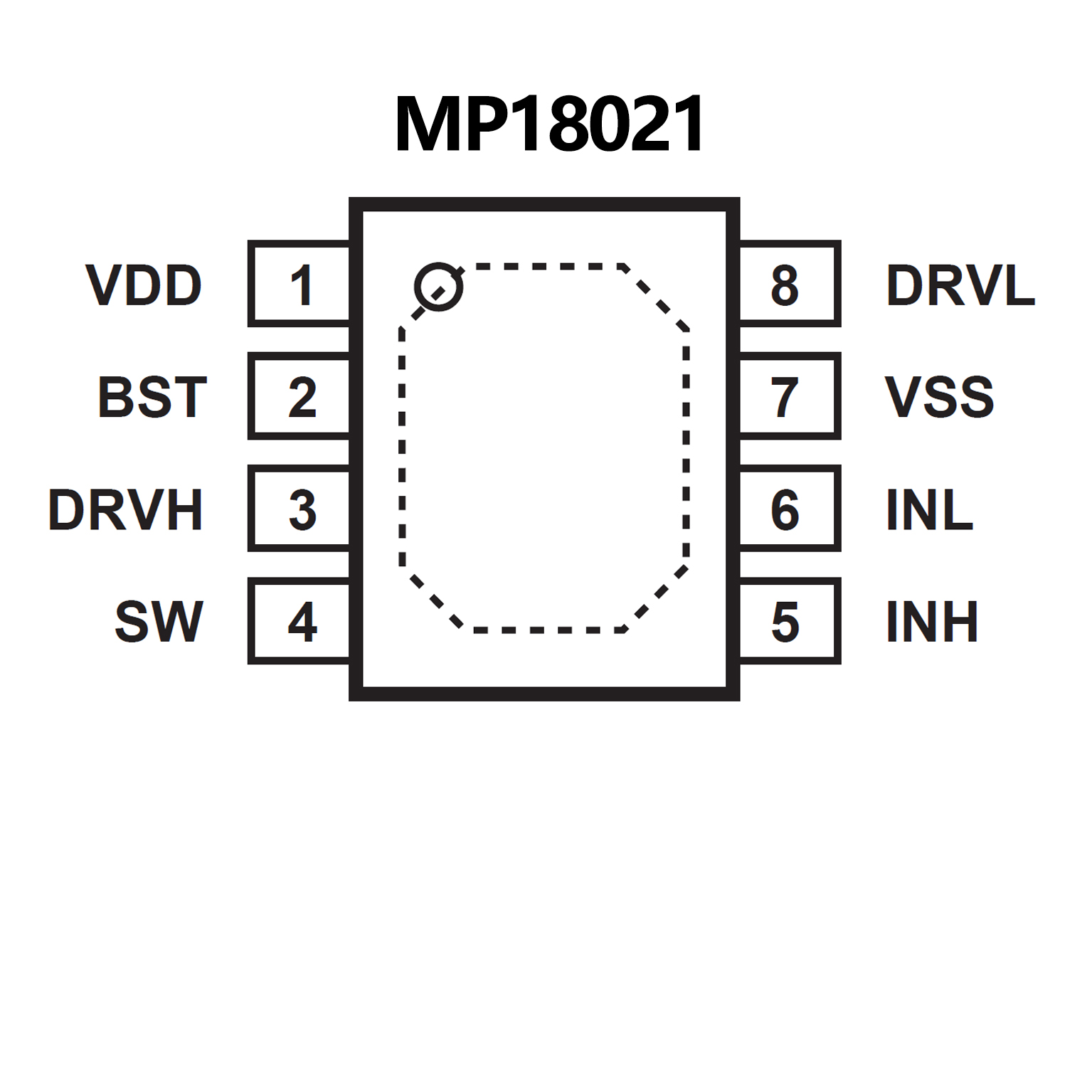

• Available in SOP-8L, ESOP-8L, DFN-9L 3mm x 3mm,

  DFN-10L 3mm x 3mm and DFN-8L 4mm x 4mm Package
