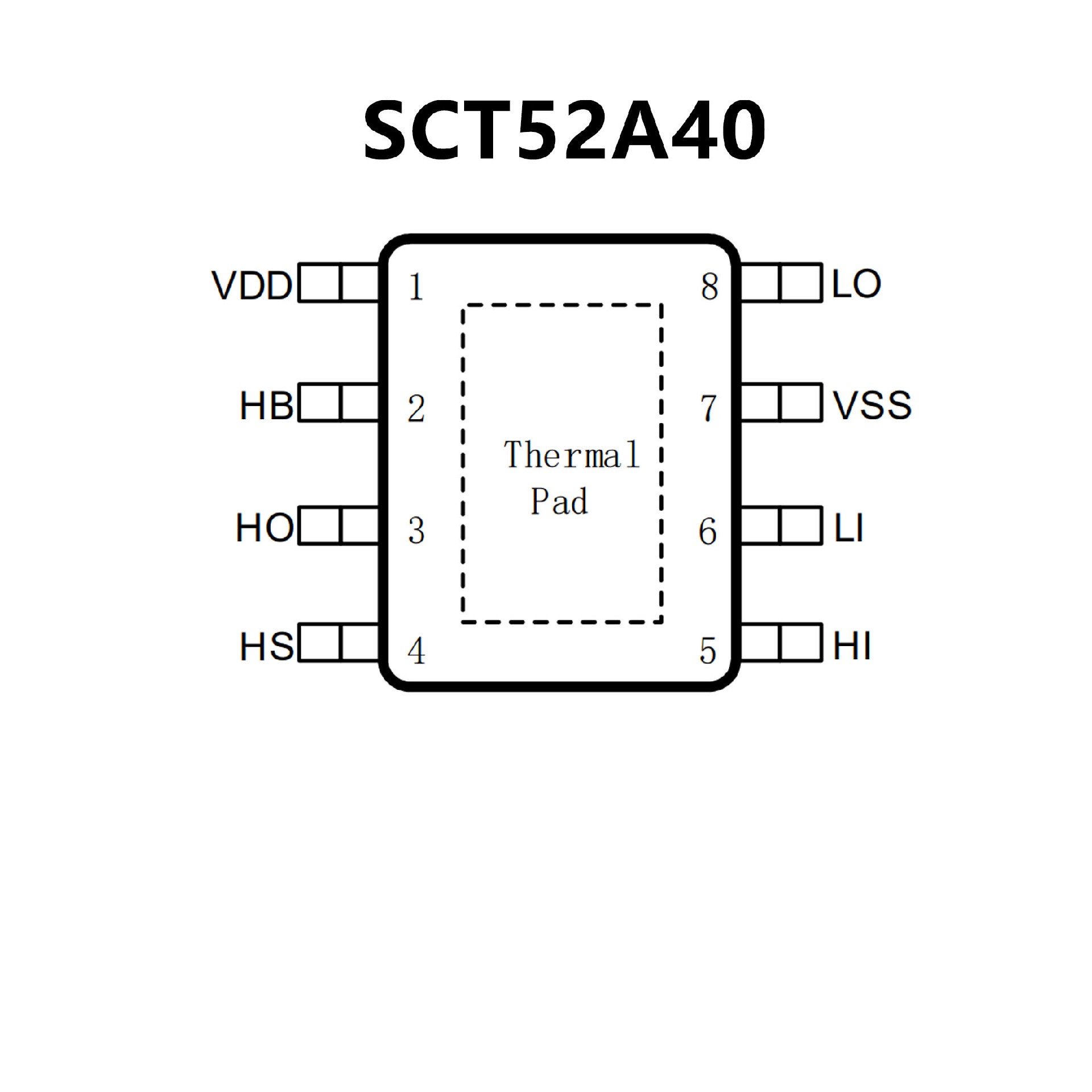

SCT52A40.pdf• Wide supply rail from 8V-24V
• Drives Both High-side and Low-side N-ChannelMOSFET
• 4A Peak Output Source and Sink Current
• Bootstrap Supply Voltage Range up to 120V
• Integrated Bootstrap Diode
• TTL Compatible Input, -10V Input Capability
• Quiescent Current 252µA
• 45ns Propagation Delay Times
• 2ns Delay Matching
• 7ns Rise and 4.5ns Fall Time with 1000pF Load
• 15ns Input Deglitching Time
• 40ns Minimum Pulse Width
• Supply Rail Under-Voltage Lockout (UVLO)
• Operation from -40°C~150ºC
• Available in SOP-8L, ESOP-8L, DFN-9L 3mm x3mm,
DFN-10L 3mm x 3mm and DFN-8L 4mm x4mm Package

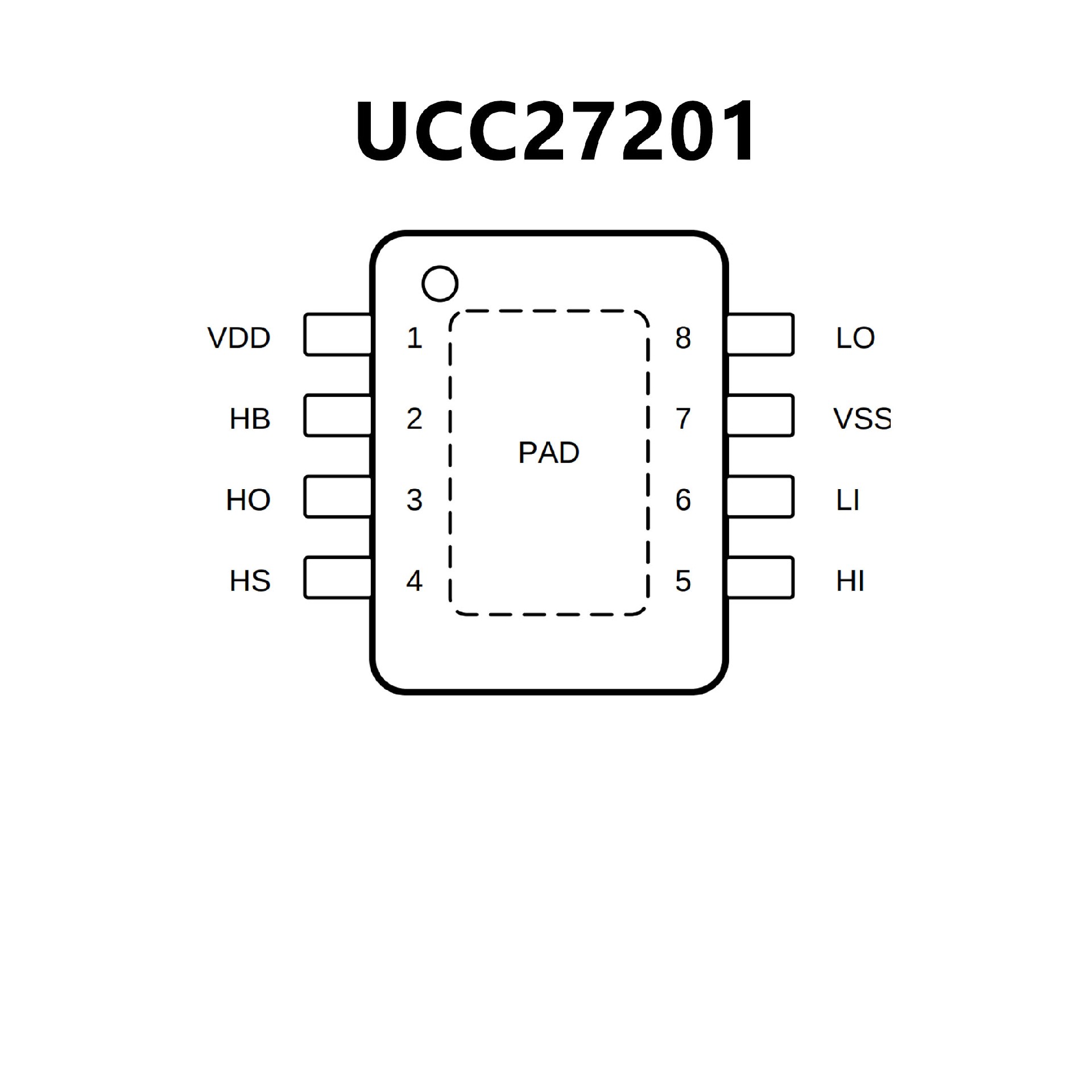

• Drives Two N-Channel MOSFETs in
High-Side and Low-Side Configuration
• Negative Voltage Handling on HS (–5 V)
• Maximum Boot Voltage of 120 V
• Maximum VDD Voltage of 20 V
• On-Chip 0.65-V VF, 0.6-Ω RD Bootstrap Diode
• Greater than 1 MHz of Operation
• 20-ns Propagation Delay Times
• 3-A Sink and 3-A Source Output Currents
• 8-ns Rise and 7-ns Fall Time With 1000-pF Load
• 1-ns Delay Matching
• Undervoltage Lockout for High-Side and Low-Side Driver
• Specified from –40°C to 140°C
