• Qualified for automotive applications

• AEC-Q100 Qualified with the following results:

  Device temperature grade 1: –40°C to 125°C

  ambient operating temperature range

  Device HBM ESD classification level H3A

  Device CDM ESD classification level C4B

• Functional safety capable

  Documentation available to aid functional

  safety system design

• Single-channel smart high-side power switch with

  full diagnostics

  Version A: open-drain status output

  Version B: current sense analog output

• Wide operating voltage 3.5 to 40 V

• Very-low standby current, <0.5 μA

• Operating junction temperature, –40 to 150°C

• Input control, 3.3-V and 5-V logic compatible

• High-accuracy current sense, ±30 mA at 1 A,

  ±4 mA at 5 mA

• Programmable current limit with external resistor,

  ±20% at 0.5 A

• Diagnostic enable function for multiplexing of mcu

  analog or digital interface

• Tested according to AECQ100-12 Grade A,

  1 million times Short to GND test

• Electrical transient disturbance immunity

  certification of ISO7637-2 and ISO16750-2

• Protection

  Overload and short-circuit protection

  Inductive load negative voltage clamp

  Undervoltage lockout (UVLO) protection

  Thermal shutdown/swing with self recovery

  Loss of GND, loss of supply protection

  Reverse battery protection with external

  circuitry

• Diagnostic

  On- and Off-state output open- and short-tobattery

  detection

  Overload and short to ground detection and

  current limit

  Thermal shutdown/swing detection

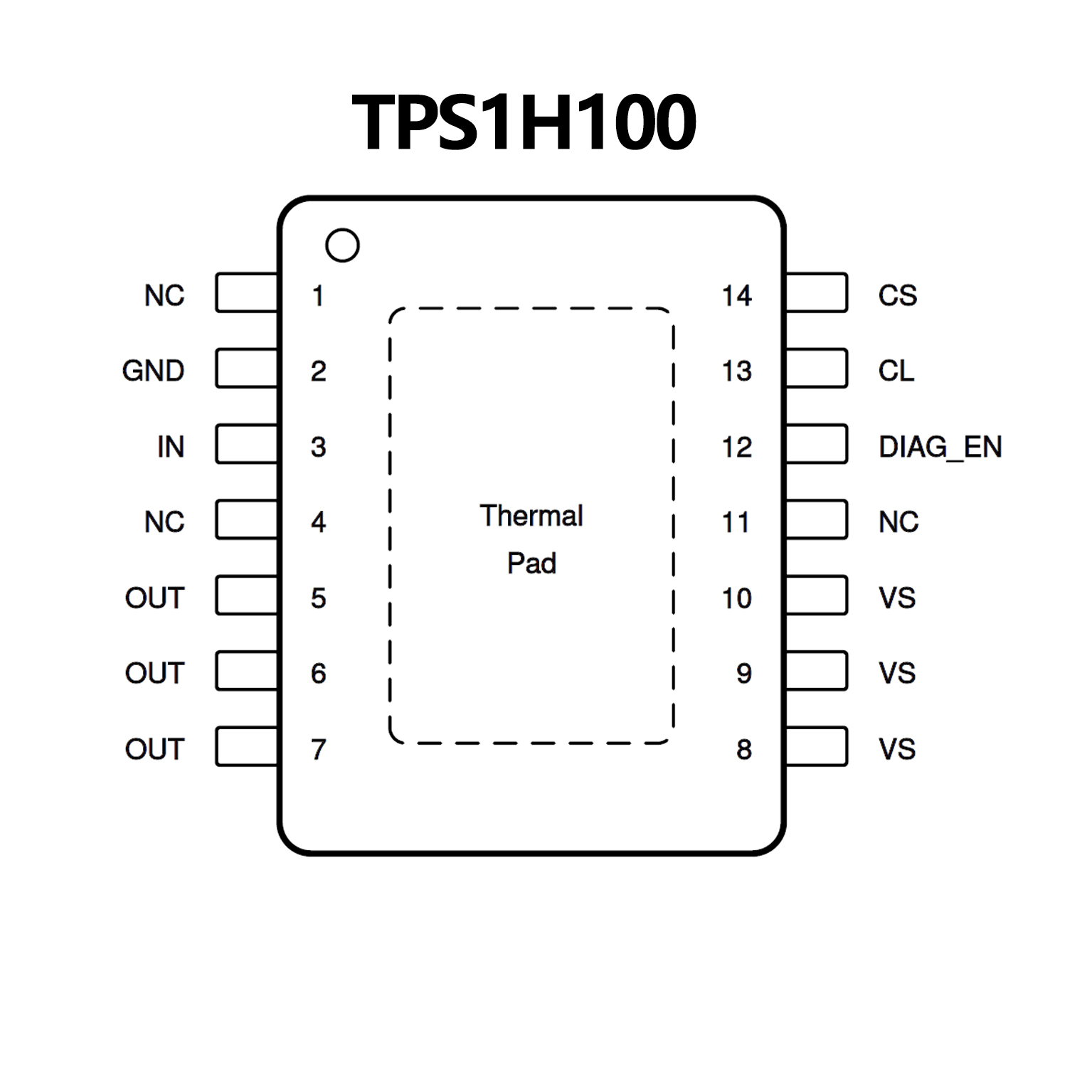

• 14-Pin Thermally-enhanced PWP package
