5 to 60V Three-Phase Brushless DC Motor Pre-Driver, SCT55610 Replace MP6530.
SCT55610
SCT55610.pdf
SCT55610.pdfFEATURES
• Wide Operating Voltage: 5V to 60V
• Charge Pump Gate Drive Supply
• 100% Duty Operation with Trickle Charge Circuit
• 1A Maximum Peak Source Current
• 2A Maximum Peak Sink Current
• 3.3V and 5V Logic Compatible
• Low-Power Sleep Mode
• Adjustable Dead-Time
• Fault Indication Output
• Full Protection Features
- Over Current Protection
- Short Circuit Protection
- Input Undervoltage Lockout
- Gate Driver Undervoltage Lockout
- Bootstrap Undervoltage Protection
- Thermal Shutdown Protection
• Available in QFN-28L(4mm×4mm) Package.

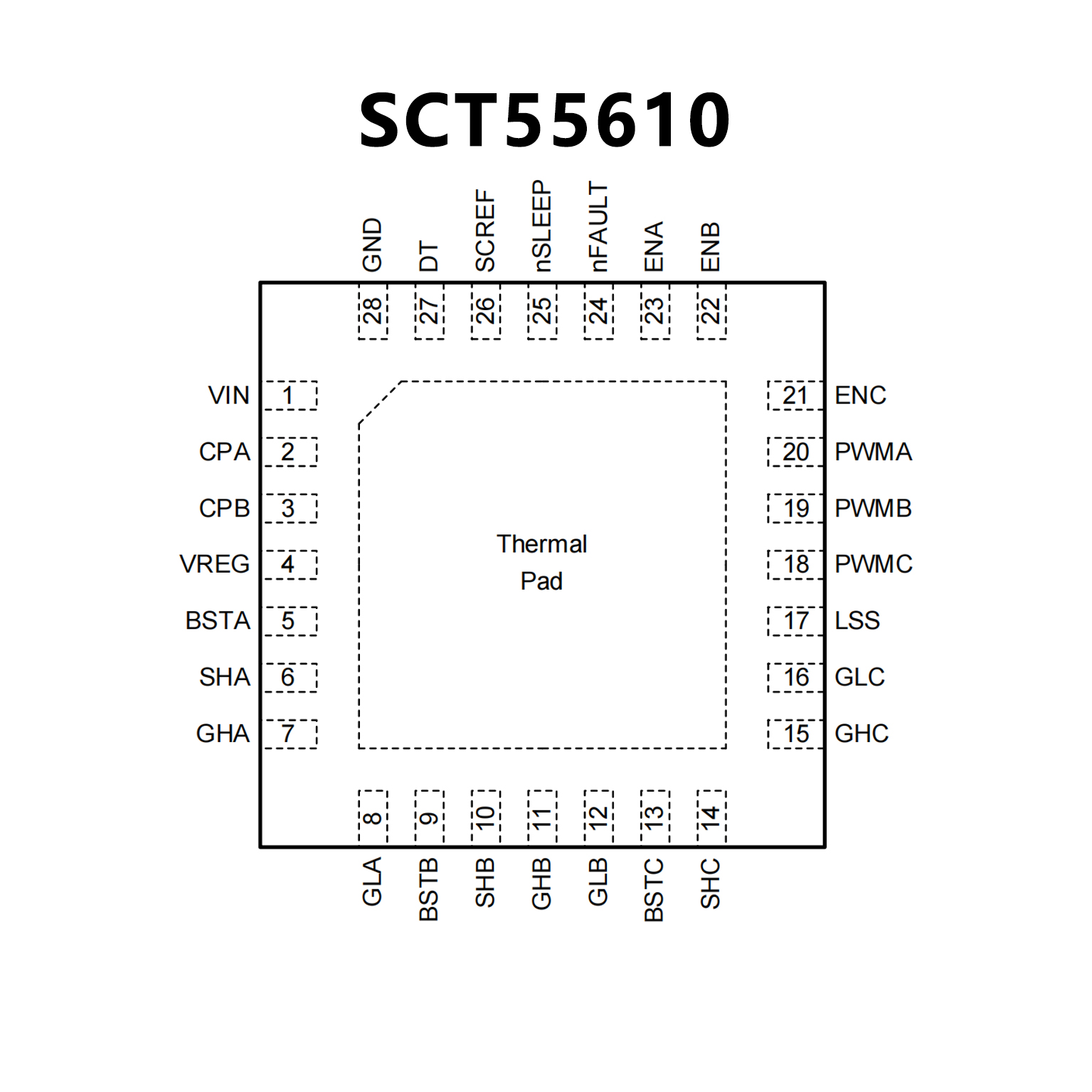

PIN CONFIGUTION
优势替代
FEATURES
• Wide 5V to 60V Input Voltage Range
• Charge Pump Gate Drive Supply
• Bootstrap High-Side Driver with Trickle-Charge
Circuit Supports 100% Duty Cycle Operation
• Low-Power Sleep Mode
• Programmable Short-Circuit Protection
• Over-Current Protection
• Adjustable Dead-Time Control to Prevent
Shoot-Through
• Thermal Shutdown and UVLO Protection
• Fault Indication Output
• Thermally Enhanced Surface-Mount Package

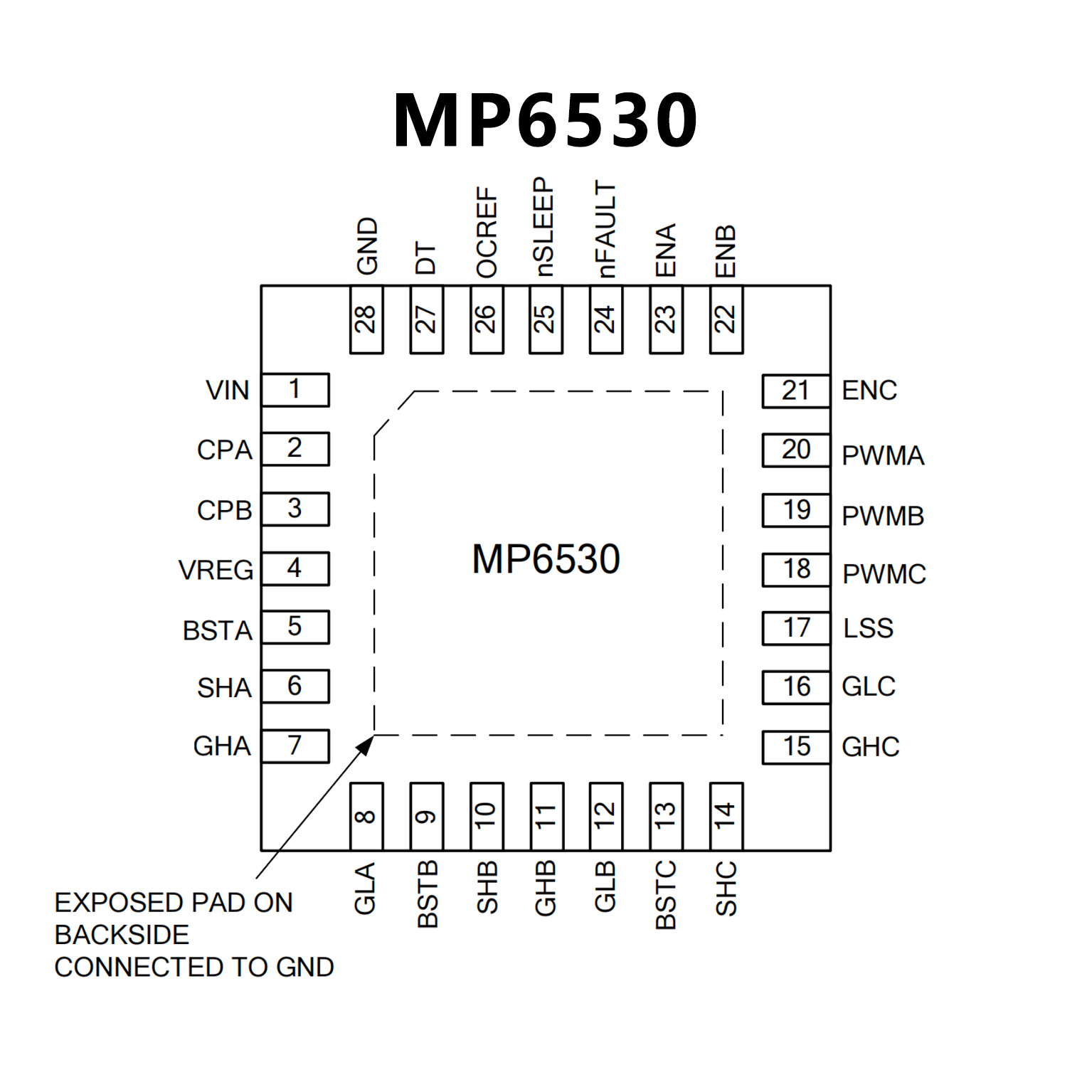

PIN CONFIGUTION
