1.7V-5.5V Vin, 500mA, 8uA IQ, Low-Dropout Regulator, SCT71005Q Replace MPQ20051.
SCT71005Q
SCT71005Q.pdf
SCT71005Q.pdfFEATURES
• Qualified for Automotive Applications
• AEC-Q100 Qualified with the Following Results:
- Device Temperature Grade 1: -40°C to 125°C
• Wide Input Range: 1.7V-6V
(2.2V-6V for SCT71005A01Q)
• Maximum Output Current: 500mA
• Output Voltage:
- 1.2V,1.8V and 3.3V (Fixed Output)
- 0.7V~5V (Adjustable Output Version
SCT71005A01Q)
- 0.5V~5V (Adjustable Output Version
SCT71005A02Q)
• Output Voltage Accuracy:
- TJ = 25℃ : ±1%
- TJ = -40℃~ 125℃ : ±2%
• Low Quiescent Current: 8uA
• Ultra-Low Shutdown Current: 0.02uA
• Low Dropout Voltage(Adjustable Output Version) ：
- 54mV at 200mA load current
- 143mV at 500mA load current
• Support Output Capacitors Range:
- 2.2uF~220uF
- Low-ESR: 0.001Ω~ 5 Ω
• 1.4ms Internal Soft-start Time(VREF =500mV)
• 2.05ms Internal Soft-start Time(VREF =700mV)
• Integrated Short-Circuit Protection with OCFB
(Over Current Fold-back) Feature
• Over-Temperature Protection
• Power-Good Feature is available
• Active Output Discharge
• Available Package: SOT23-5/ TDFN2x2-6/ TDFN2x3-8

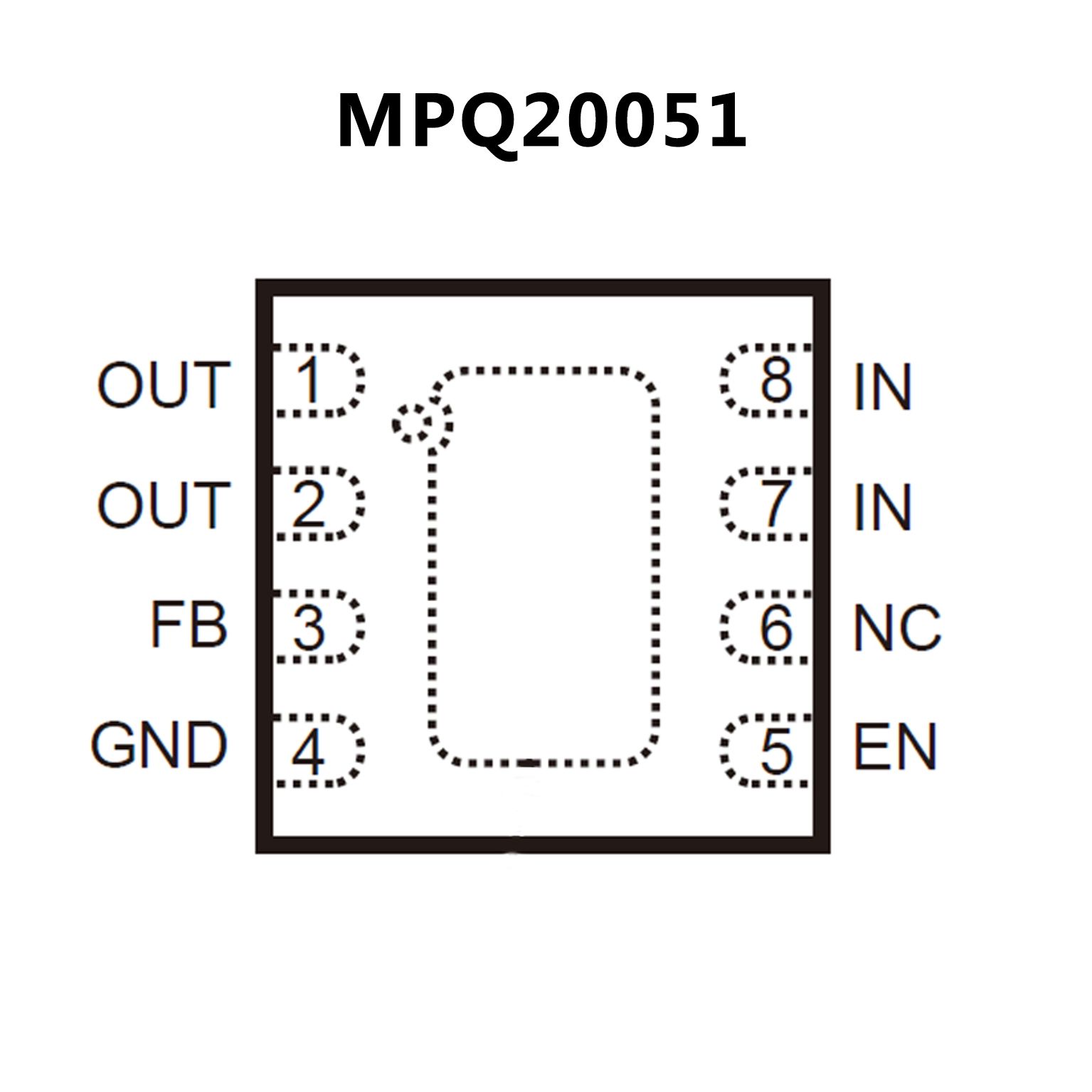

PIN CONFIGUTION
优势替代
FEATURES
• Guaranteed I ndustrial/Automotive Temp Range Limits
• Up to 1A Output Current
• Low 140mV Dropout at 1A
• Low 130μA Ground Current
• Output Voltage Available from 0.8V to 5V
• Low Noise: 13μVRMS typical (10Hz to 100kHz)
• 63dB PSRR @1kHz
• Stable with Ceramic Capacitor
• Excellent Load/Line Transient Response
• Current Limiting and Thermal Protection
• Available in 3mm x 3mm 8-pin QFN Package
• Available in AEC-Q100 Qualified Grade 1

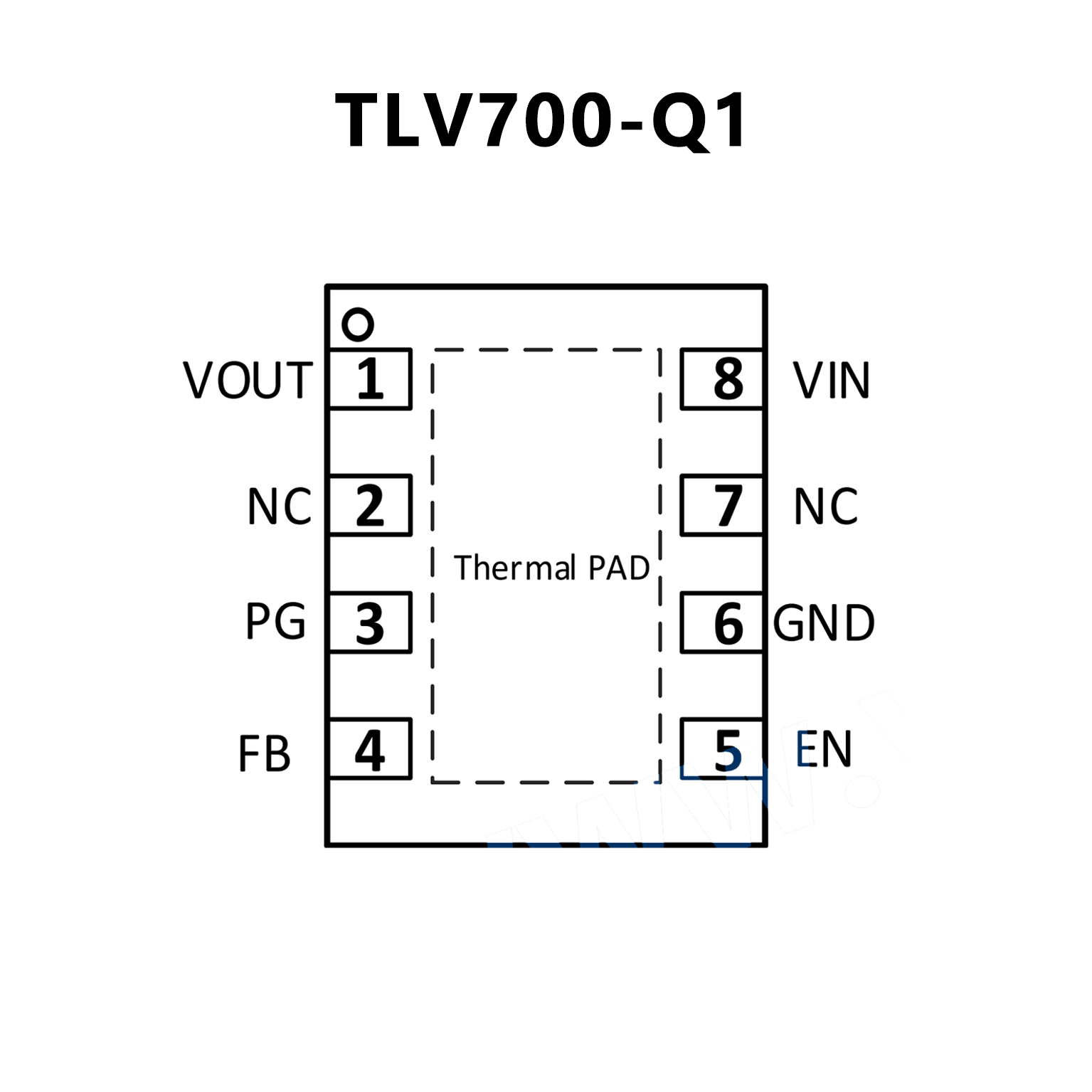

PIN CONFIGUTION
