• EMI Reduction with Switching Node Ringing-free

• 500kHz Switching Frequency with 6%

  FrequencySpread Spectrum FSS

• Pulse Skipping Mode PSM with

  20µA QuiescentCurrent in Light Load Condition

• 3.8V-32V Wide Input Voltage Range

• Up to 2A Continuous Output Load Current

• 0.8V ±1% Feedback Reference Voltage

• Fully Integrated 130mΩ Rdson High

  Side MOSFET
and 70mΩ Rdson Low Side MOSFET

• 1uA Shut-down Current

• 80ns Minimum On-time

• Precision Enable Threshold for

  ProgrammableUVLO Threshold and Hysteresis

• Low Dropout Mode Operation

• 4ms Built-in Soft Start Time

• Output Over Voltage Protection

• Thermal Shutdown Protection at 160°C

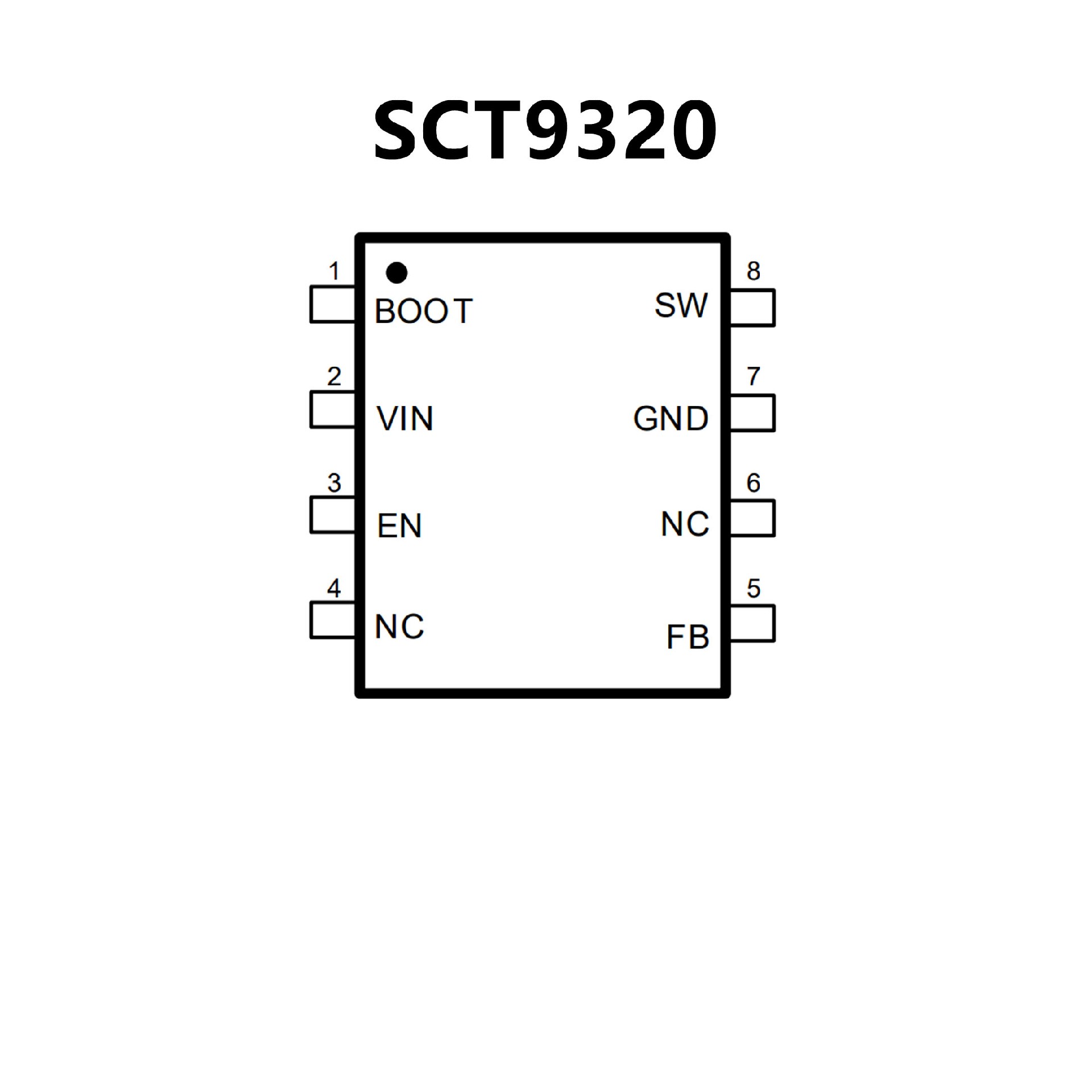

• Available in SOP-8L Package
