LinCMOS™ Technology Timer, SE555 Replace TLC555.
SE555
SE555.pdf
SE555.pdfFEATURES
• Timing from Microseconds to Hours
• Astable or Monostable Operation
• Adjustable Duty Cycle
• TTL Compatible Output Can Source or Sink up to 200mA
PIN CONFIGUTION
优势替代
FEATURES
• Very low power consumption:
– 1-mW typical at VDD = 5 V
• Capable of operation in astable mode
• CMOS output capable of swinging rail to rail
• High output current capability
– Sink: 100-mA typical
– Source: 10-mA typical
• Output fully compatible with CMOS, TTL, and MOS
• Low supply current reduces spikes during output
transitions
• Single-supply operation from 2 V to 15 V
• Functionally interchangeable with the NE555; has
same pinout
• ESD protection exceeds 1000 V per ANSI/ESDA/
JEDEC JS-001
• Available in Q-temp automotive
– High-reliability automotive applications
– Configuration control and print support
– Qualification to automotive standards

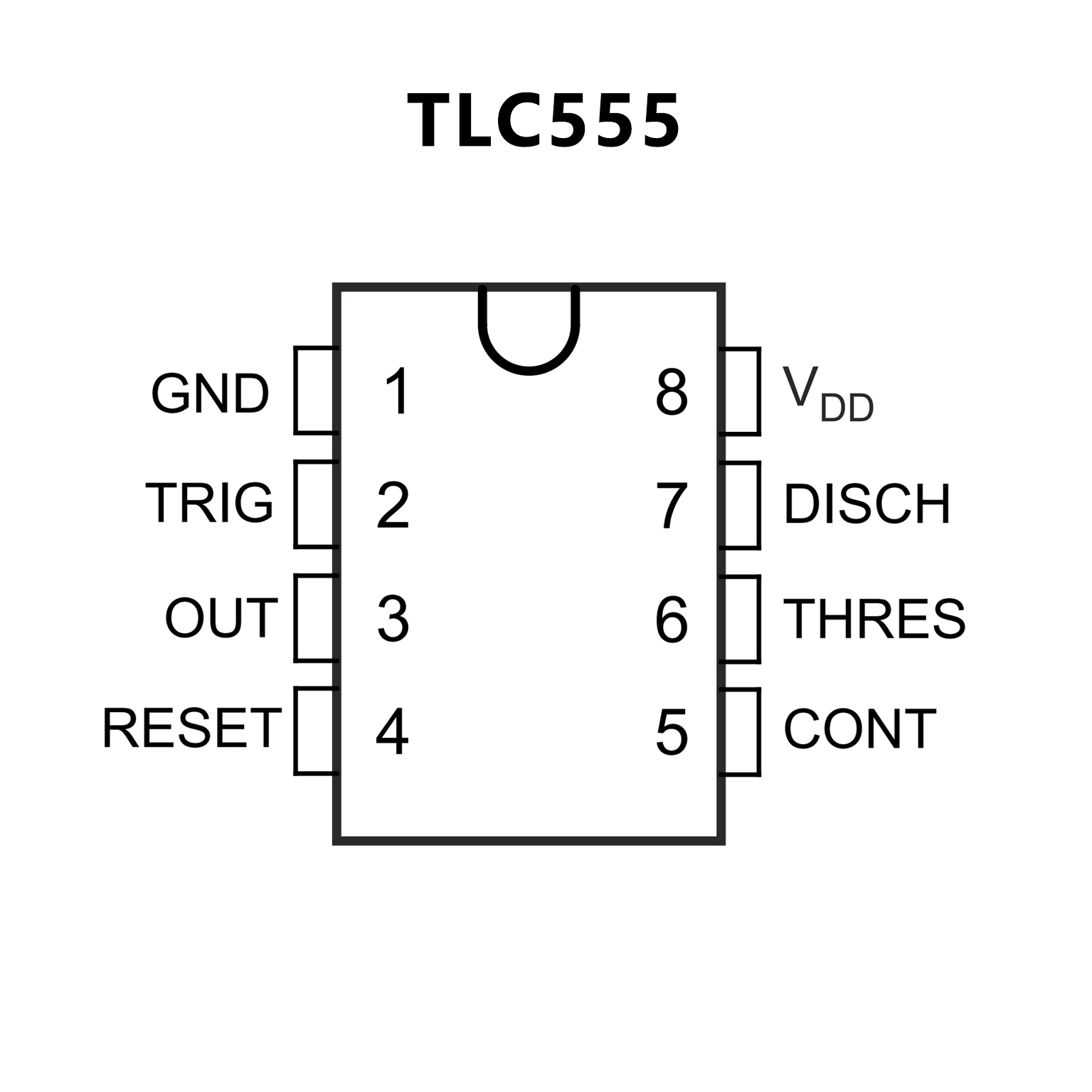

PIN CONFIGUTION
