Low Capacitance 1-Channel ESD Protection, SGM05CB1A4 P2P PESD5V0U1BL.
SGM05CB1A4
SGM05CB1A4.pdf
SGM05CB1A4.pdfFEATURES
• High ESD Withstand Voltage:
IEC 61000-4-2: ±30kV (Air)
IEC 61000-4-2: ±30kV (Contact)
• Rated Peak Pulse Current: 4A
• 2.7pF (TYP) Channel Input Capacitance
• Low Profile Packages: UTDFN-1×0.6-2L,
XTDFN-0.6×0.3-2L
• Working Voltage: 5.0V and below

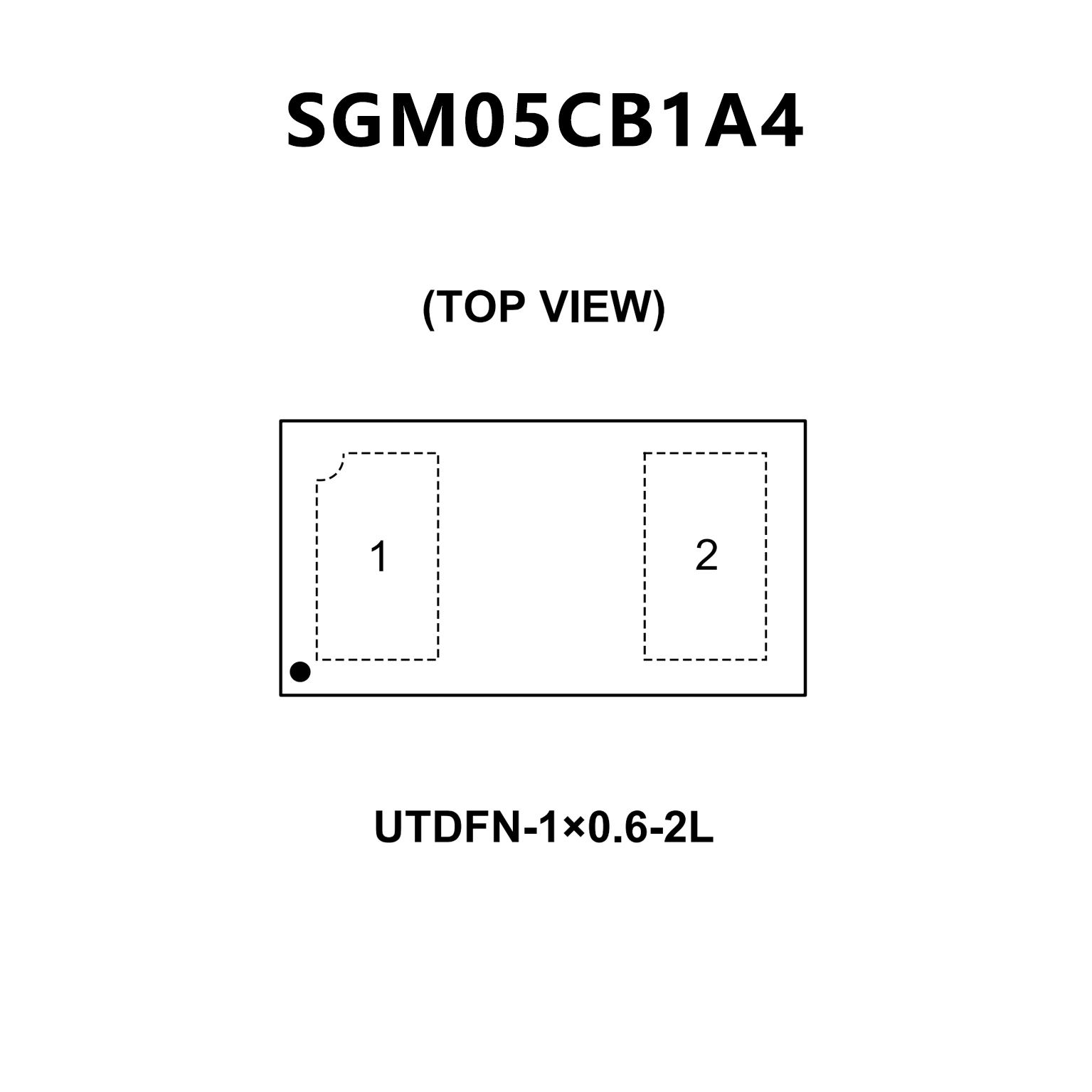

PIN CONFIGUTION
优势替代
FEATURES
• Bidirectional ESD protection of one line
• Low diode capacitance: Cd = 2.9 pF
• Ultra low leakage current: IRM = 5 nA
• ESD protection of up to 10 kV
• IEC 61000-4-2, level 4 (ESD)
• AEC-Q101 qualified
PIN CONFIGUTION
