Low Capacitance 1-Channel ESD Protection, SGM05CB1A4 P2P PESDWC2XD5VB.
SGM05CB1A4
SGM05CB1A4.pdf
SGM05CB1A4.pdfFEATURES
• High ESD Withstand Voltage:
IEC 61000-4-2: ±30kV (Air)
IEC 61000-4-2: ±30kV (Contact)
• Rated Peak Pulse Current: 4A
• 2.7pF (TYP) Channel Input Capacitance
• Low Profile Packages: UTDFN-1×0.6-2L,
XTDFN-0.6×0.3-2L
• Working Voltage: 5.0V and below

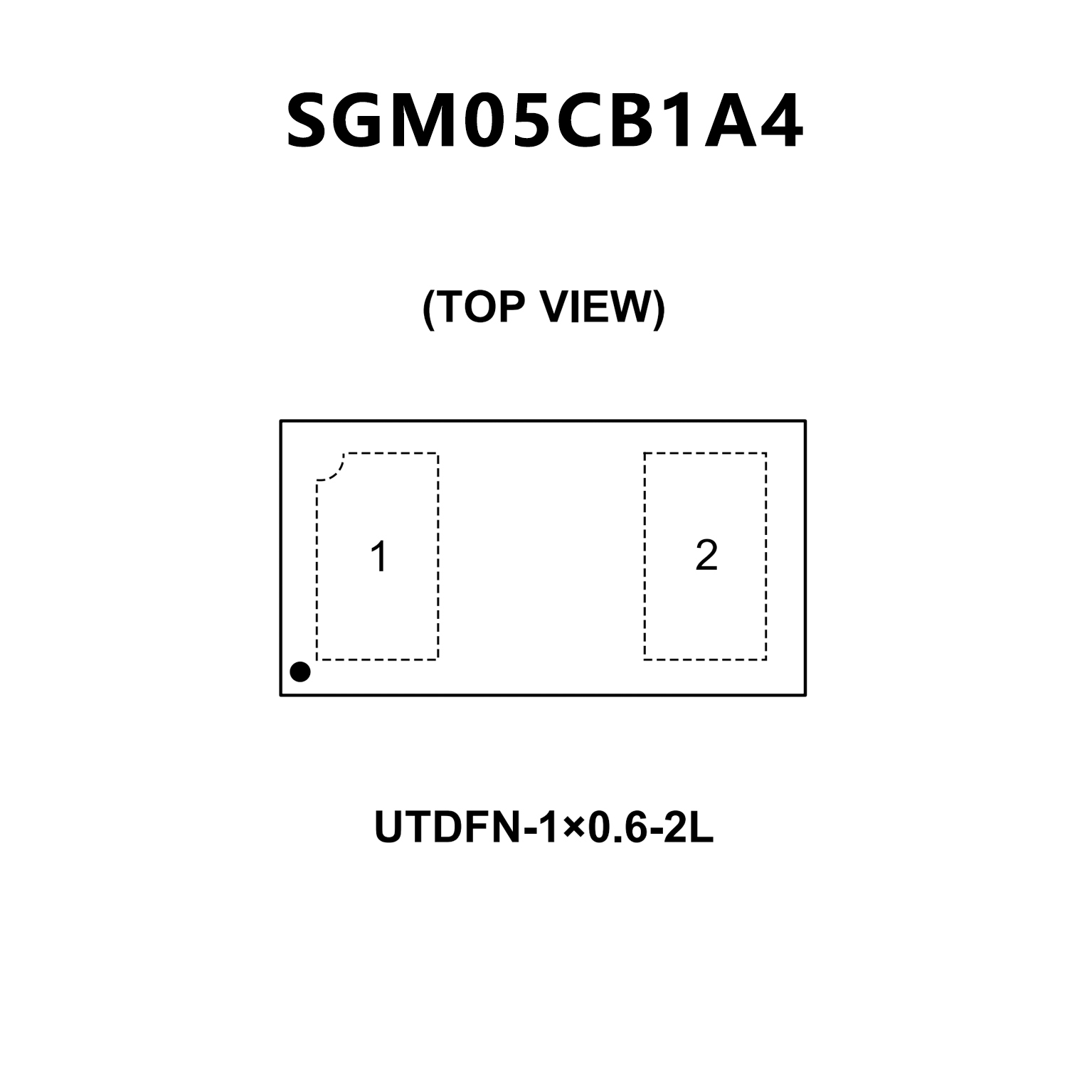

PIN CONFIGUTION
优势替代
FEATURES
• 30W peak pulse power per line (tP = 8/20μs)
• DFN0603-2L package
• Replacement for MLV(0201)
• Bidirectional configurations
• Response time is typically < 1ns
• High ESD protection
• Low clamping voltage
• RoHS compliant
• Transient protection for data lines to
IEC 61000-4-2(ESD)±12KV(air), ±10KV(contact);
IEC 61000-4-4 (EFT) 40A (5/50ns)
