Low Capacitance 1-Channel ESD Protection, SGM05CB1A7 P2P Rclamp0521Z.
SGM05CB1A7
SGM05CB1A7.pdf
SGM05CB1A7.pdfFEATURES
• High ESD Withstand Voltage:
IEC 61000-4-2: ±30kV (Air)
IEC 61000-4-2: ±30kV (Contact)
• Rated Peak Pulse Current: 7A
• 9pF (TYP) Channel Input Capacitance
• Low Profile Package: X4DFN-0.63×0.33-2L
• Working Voltage: 5.0V and below

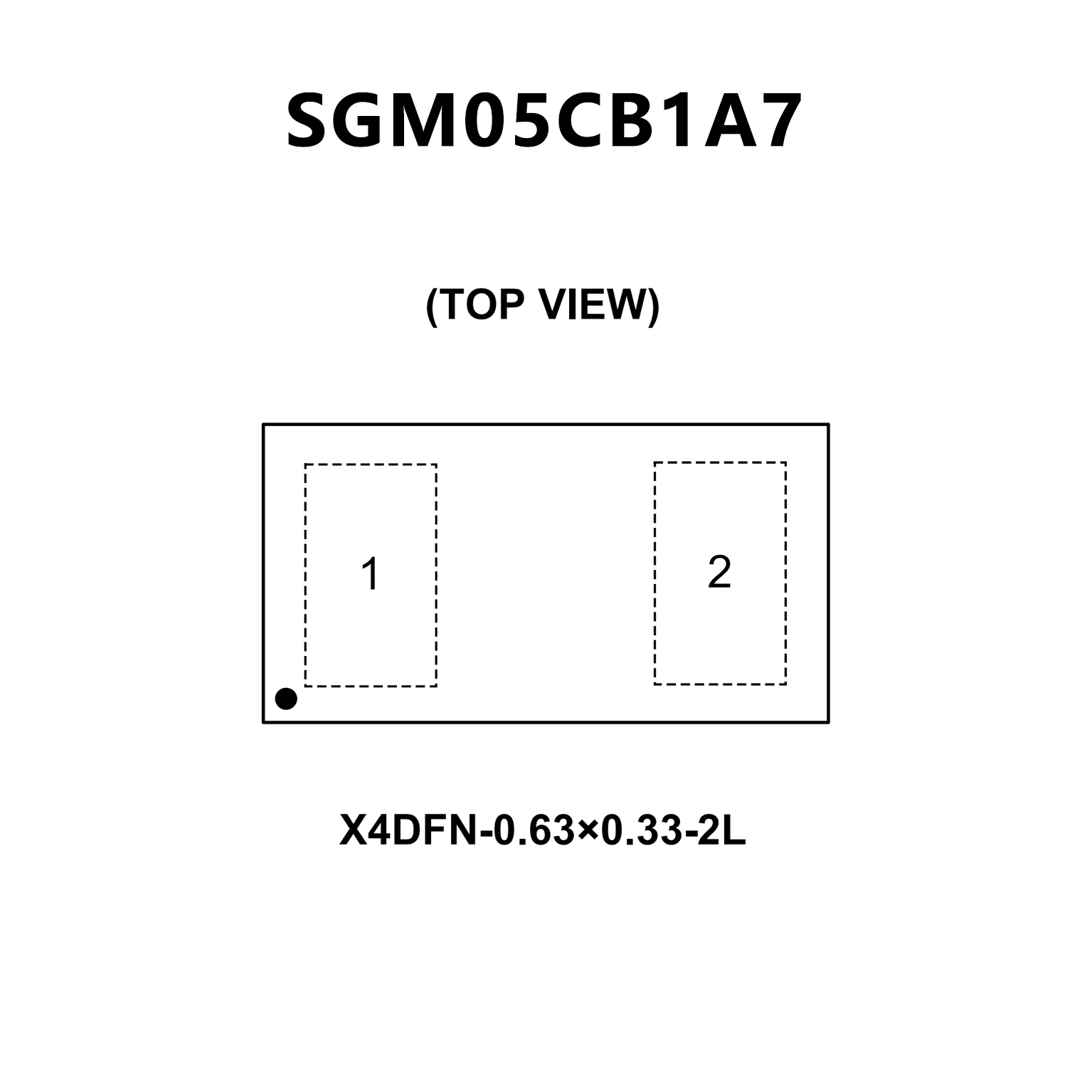

PIN CONFIGUTION
优势替代
FEATURES
• High ESD withstand Voltage: +/-17kV (Contact) and
+/- 25kV (Air) per IEC 61000-4-2
• Able to withstand over 1000 ESD strikes per IEC
61000-4-2 Level 4
• Ultra-small 0201 package
• Protects one high-speed data line
• Low reverse current: <10nA typical (VR=5V)
• Working voltage: +/- 5V
• Low capacitance: 0.35pF typical
• Dynamic resistance: 0.90 Ohms (Typ)
• Solid-state silicon-avalanche technology

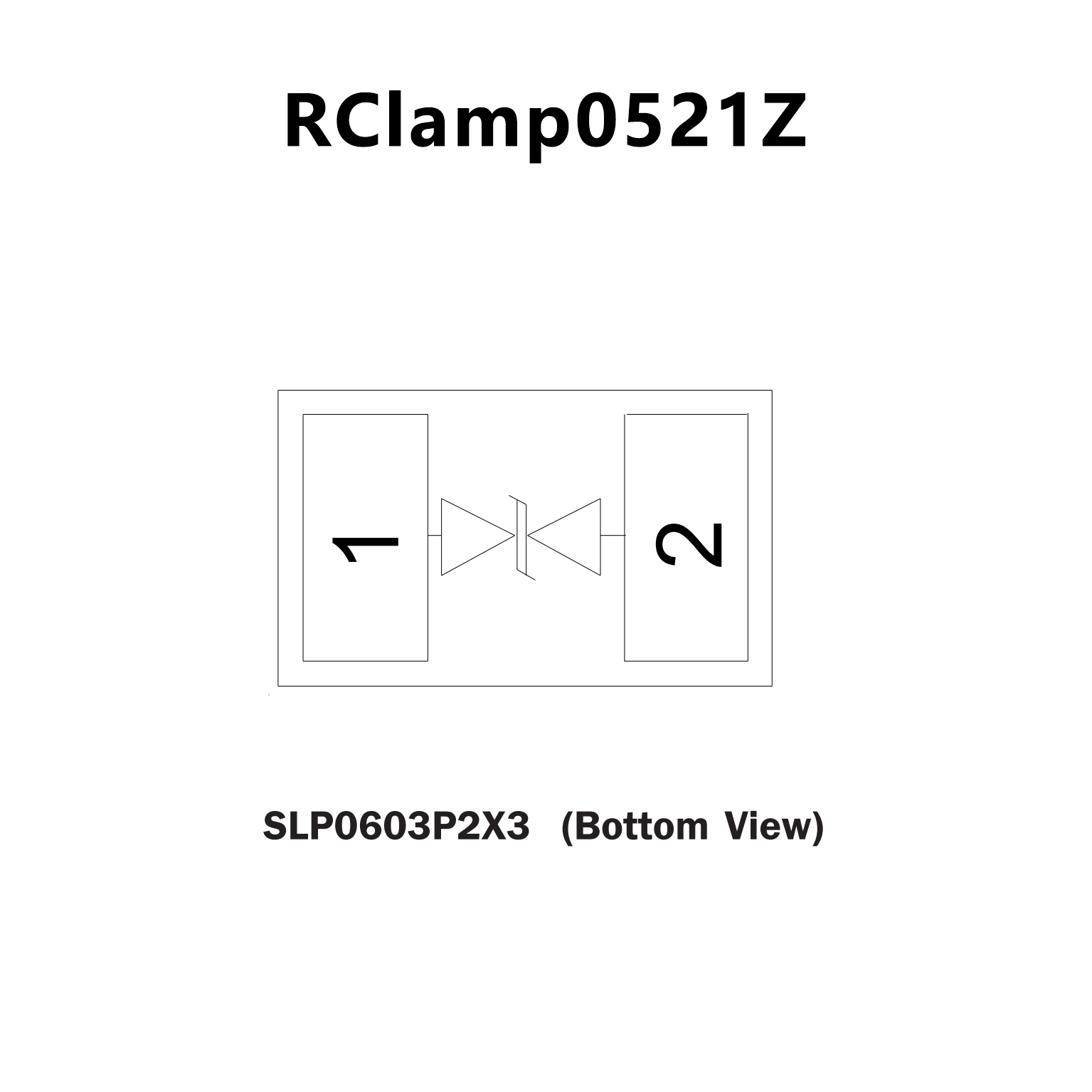

PIN CONFIGUTION
