Low Capacitance 1-Channel ESD Protection, SGM05CB1A8 P2P PESD5V0F1BRLD.
SGM05CB1A8
SGM05CB1A8.pdf
SGM05CB1A8.pdfFEATURES
• High ESD Withstand Voltage:
IEC 61000-4-2: ±30kV (Air)
IEC 61000-4-2: ±30kV (Contact)
• Rated Peak Pulse Current: 8.5A
• 9.6pF (TYP) Channel Input Capacitance
• Low Profile Package: UTDFN-1×0.6-2L
• Working Voltage: 5.0V and below

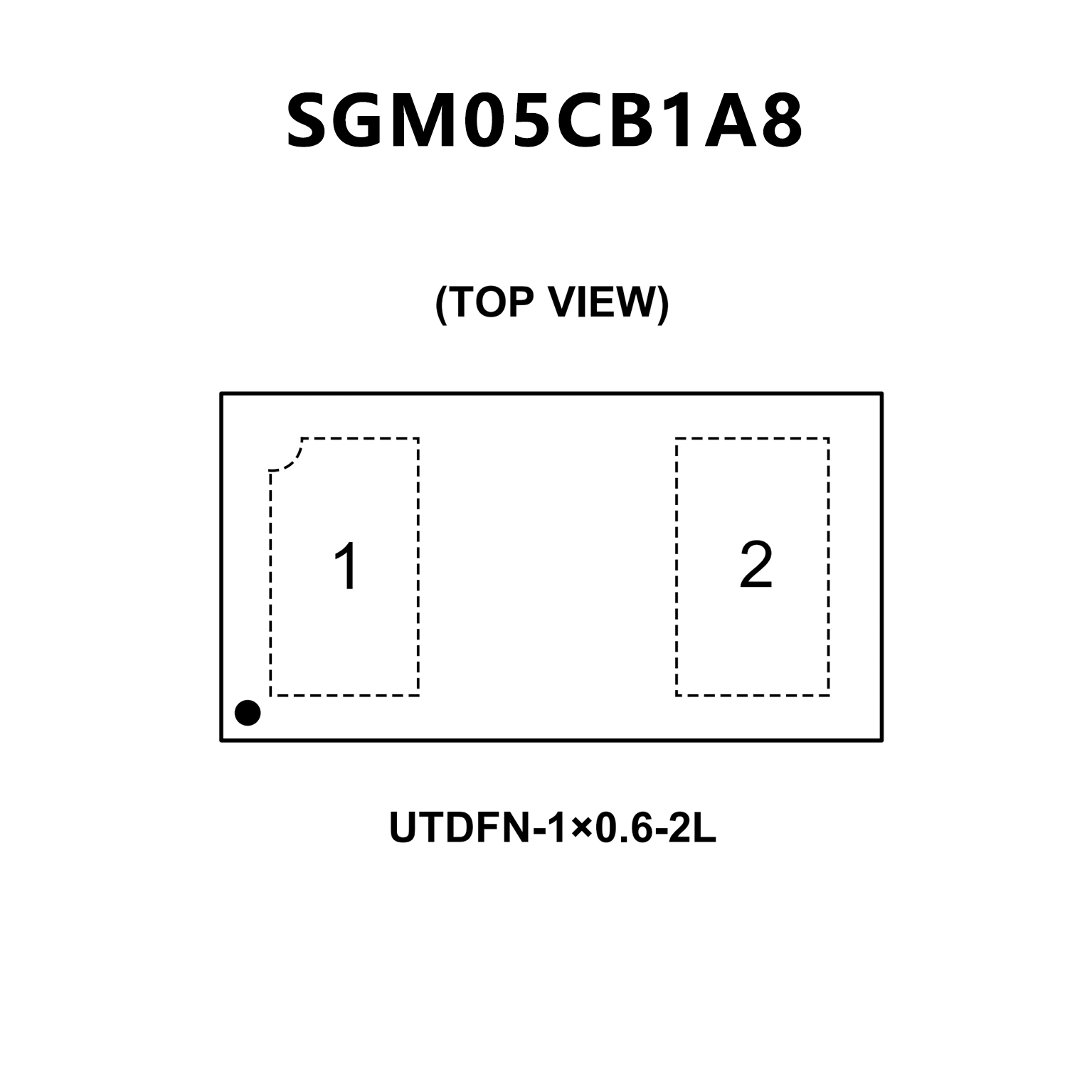

PIN CONFIGUTION
优势替代
FEATURES
• Bidirectional ESD protection of one line
• ESD protection up to 10 kV (contact) and 15 kV (air)
• Femtofarad capacitance: Cd = 400 fF
• IEC 61000-4-2; level 4 (ESD)
• Low ESD clamping voltage: 30 V at 30 ns and 8 kV
• Package height typ. 0.37 mm
• Very low leakage current: IRM < 1 nA
• AEC-Q101 qualified

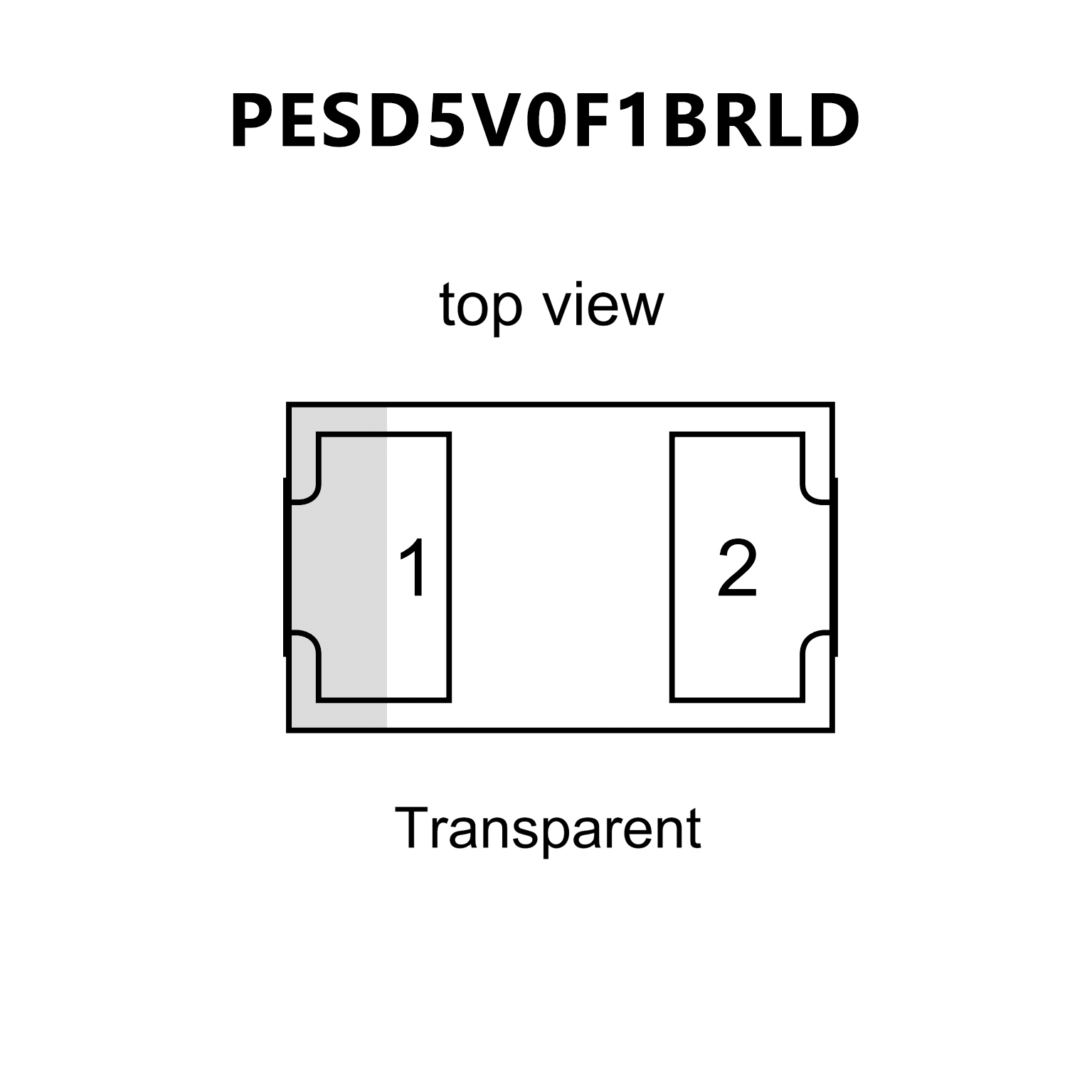

PIN CONFIGUTION
