Ultra Small RClamp® 2-Line ESD Protection,SGM05FB1E2 Replace Rclamp0542.
SGM05FB1E2
SGM05FB1E2.pdf
SGM05FB1E2.pdfFEATURES
• High ESD Withstand Voltage:
IEC 61000-4-2: ±12kV (Air)
IEC 61000-4-2: ±12kV (Contact)
• Low Profile Packages: XTDFN-0.6×0.3-2L and
UTDFN-1×0.6-2L
• Working Voltage: 5V and Below
• Rated Peak Pulse Current: 2.4A
• Low Channel Input Capacitance: 0.3pF (TYP)

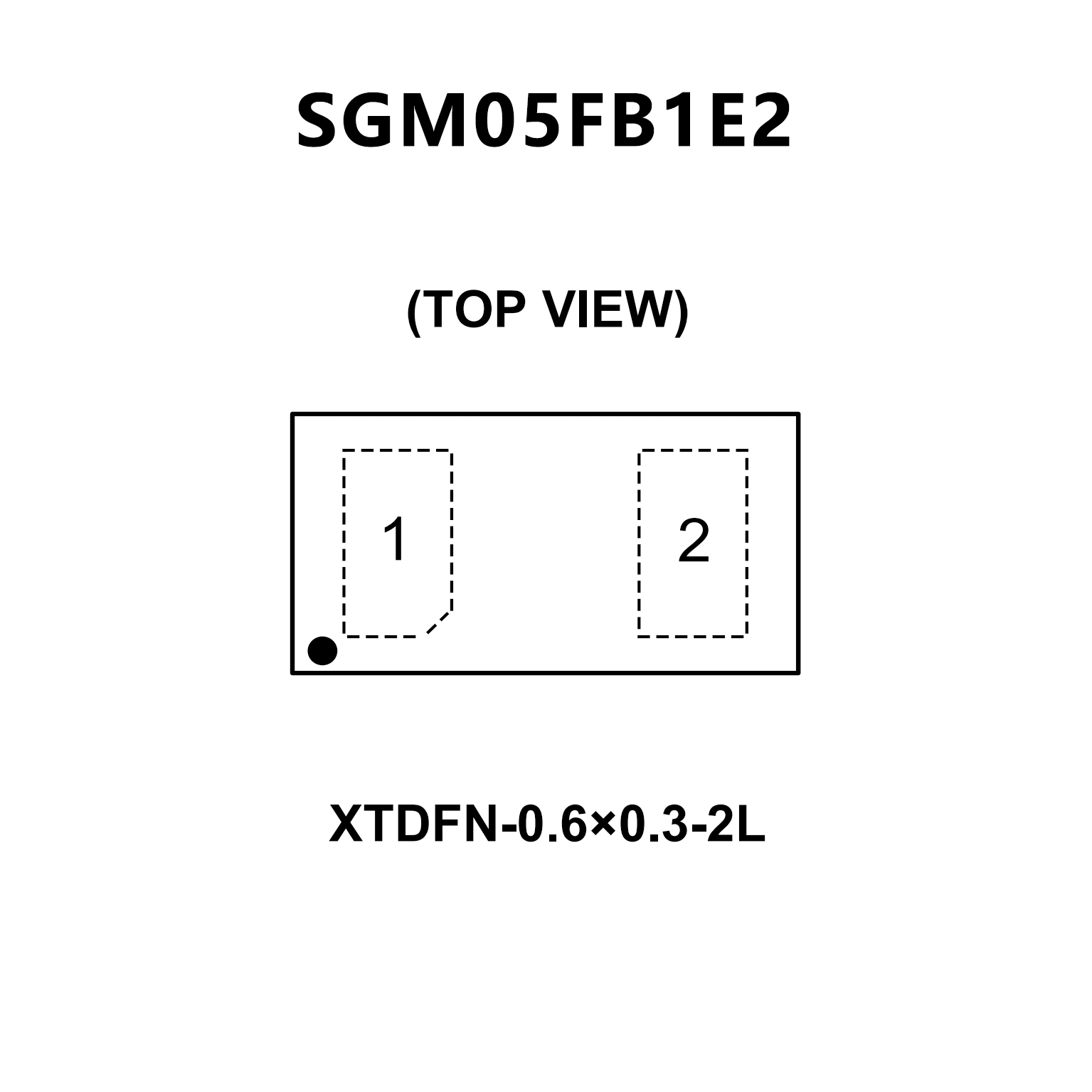

PIN CONFIGUTION
优势替代
FEATURES
• High ESD withstand Voltage: +/-10kV (Contact)
and +/- 15kV (Air) per IEC 61000-4-2
• Able to withstand over 1000 ESD strikes per IEC
61000-4-2 Level 4
• Ultra-small 0201 package
• Protects two high-speed data lines
• Low reverse current: <1nA typical (VR=5V)
• Working voltage: 5V
• Low capacitance: 0.30pF maximum
• Dynamic resistance: 0.67 Ohms (Typ)
• Solid-state silicon-avalanche technology
PIN CONFIGUTION
