Femto-Farad Capacitance 2-Channel ESD Protection, SGM05FB2E2 P2P ESD5V3U2U.
SGM05FB2E2
SGM05FB2E2.pdf
SGM05FB2E2.pdfFEATURES
• High ESD Withstand Voltage:
IEC 61000-4-2: ±18kV (Air)
IEC 61000-4-2: ±16kV (Contact)
• Rated Peak Pulse Current: 2.5A
• 0.3pF (TYP) Channel Input Capacitance
• Low Profile Package: UTDFN-1×0.6-3L
• Working Voltage: 5.0V and Below

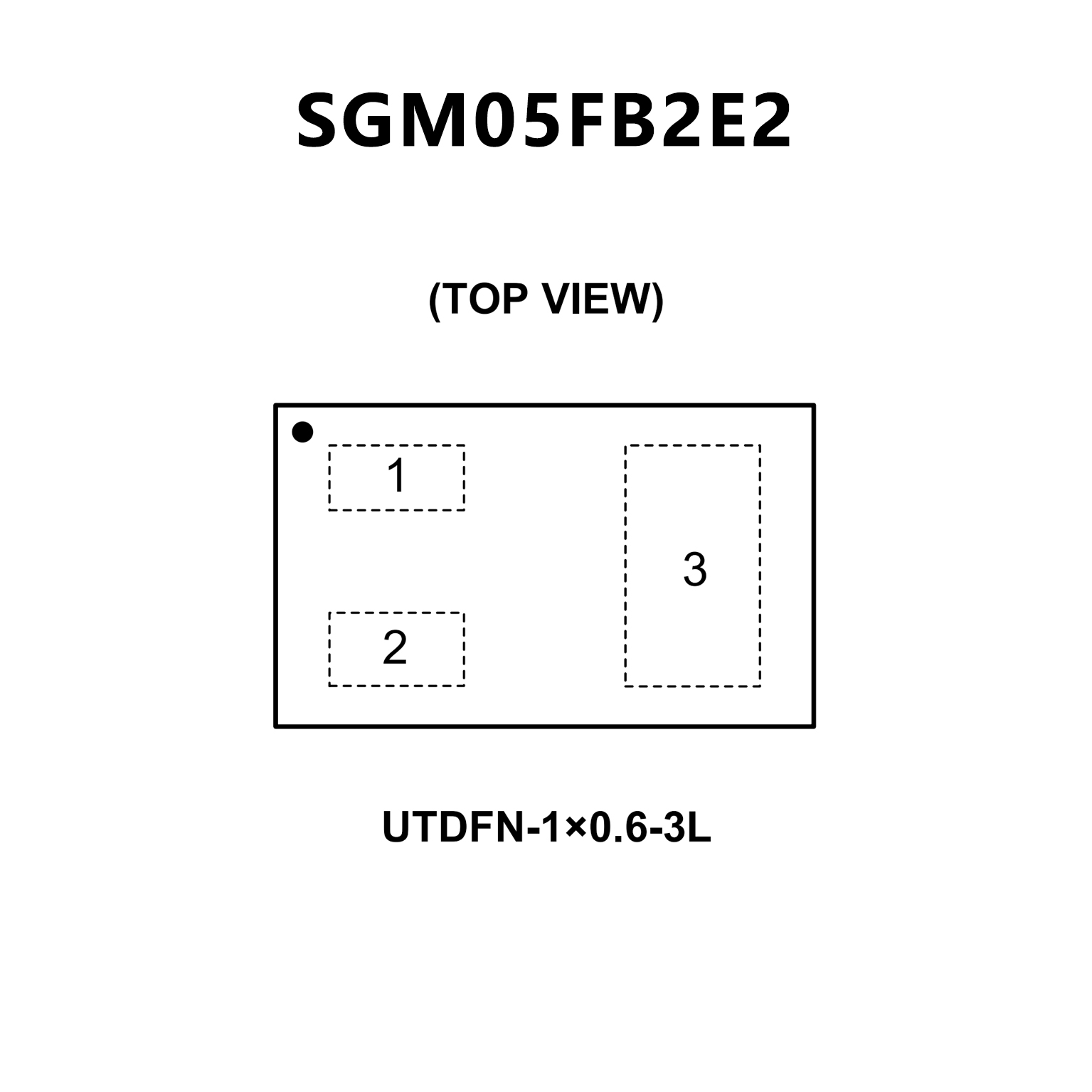

PIN CONFIGUTION
优势替代
FEATURES
• ESD / Transient protection of High-Speed data lines
exceeding
– IEC61000-4-2 (ESD): ± 20 kV (air / contact)
– IEC61000-4-4 (EFT): ±50 A (5/50 ns)
– IEC61000-4-5 (surge): ±3 A (8/20 μs)
• Maximum working voltage: VRWM 5.3 V
• Extremely low capacitance: down to 0.4 pF
• Very low reverse current: IR < 1 nA typical
• Pb-free package (RoHS compliant) and halogen free
package

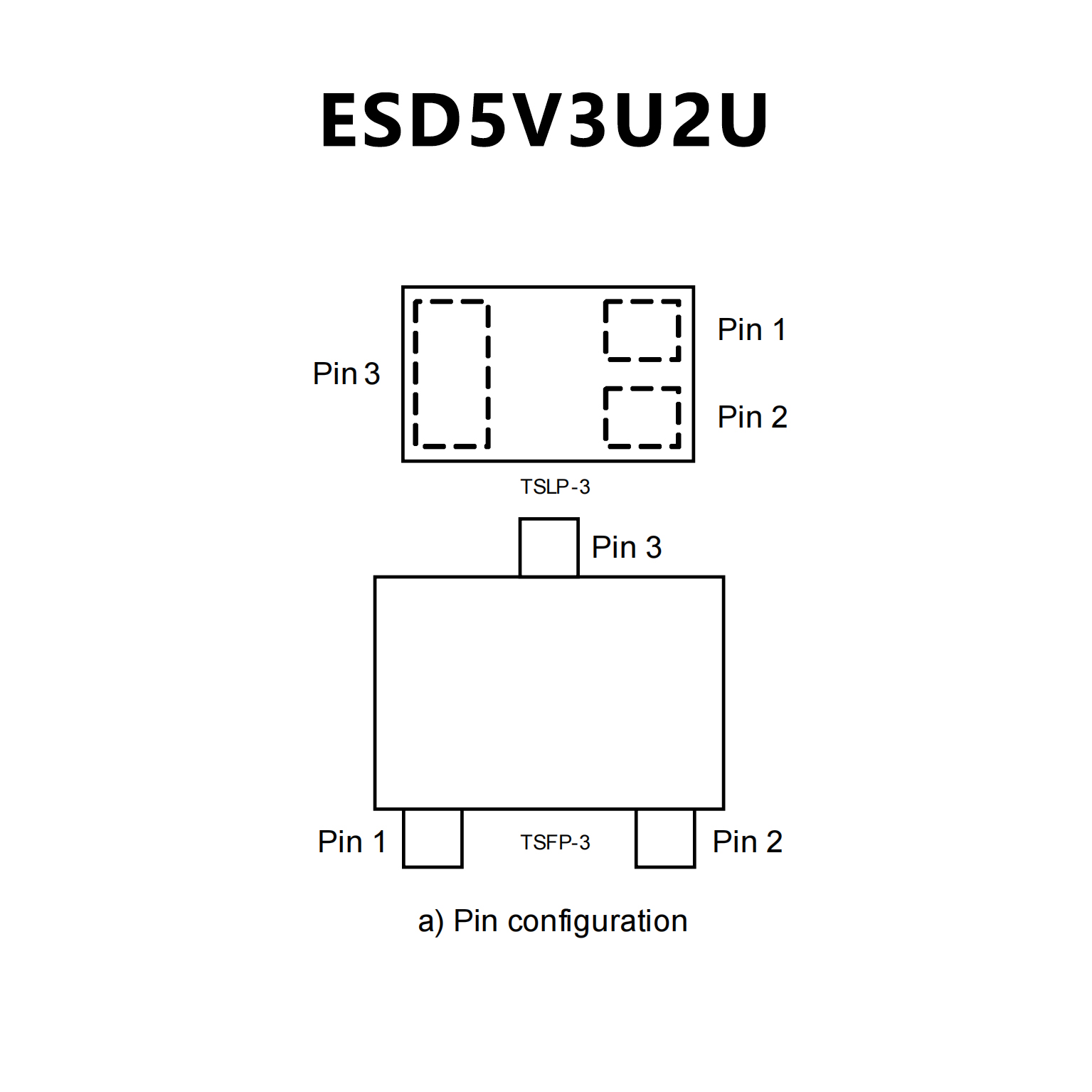

PIN CONFIGUTION
