5V Bidirectional ESD and Surge Protection Device, SGM05HB1AM P2P NSPM3042.
SGM05HB1AM
SGM05HB1AM.pdf
SGM05HB1AM.pdfFEATURES
• Low Clamping Voltage
• Low Leakage
• Small Package: UTDFN-1×0.6-2AL
• Protection for the Following IEC Standards:
IEC 61000-4-2 Level 4: ±30kV Contact Discharge
IEC 61000-4-5 (Lightning) 30A (8/20μs)
• These Devices are Pb-Free, Halogen Free/BFR
Free and are RoHS Compliant

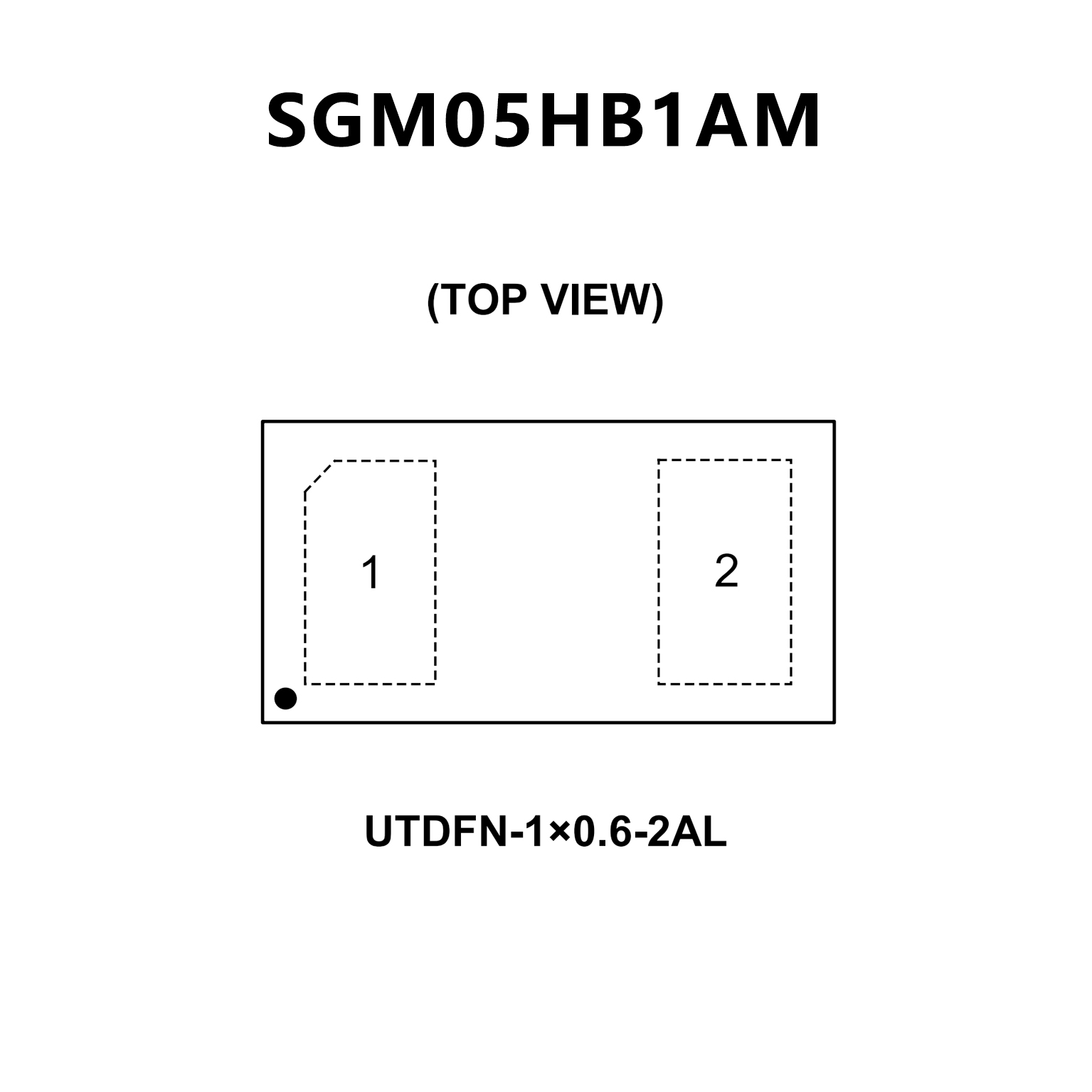

PIN CONFIGUTION
优势替代
FEATURES
• Low Clamping Voltage
• Low Leakage
• Small Body Outline: 1.0 mm x 0.6 mm
• Protection for the following IEC Standards:
IEC61000−4−2 Level 4: ±30 kV Contact Discharge
IEC61000−4−5 (Lightning) 43 A (8/20 s)
• These Devices are Pb−Free, Halogen Free/BFR
Free and are RoHS Compliant
PIN CONFIGUTION
