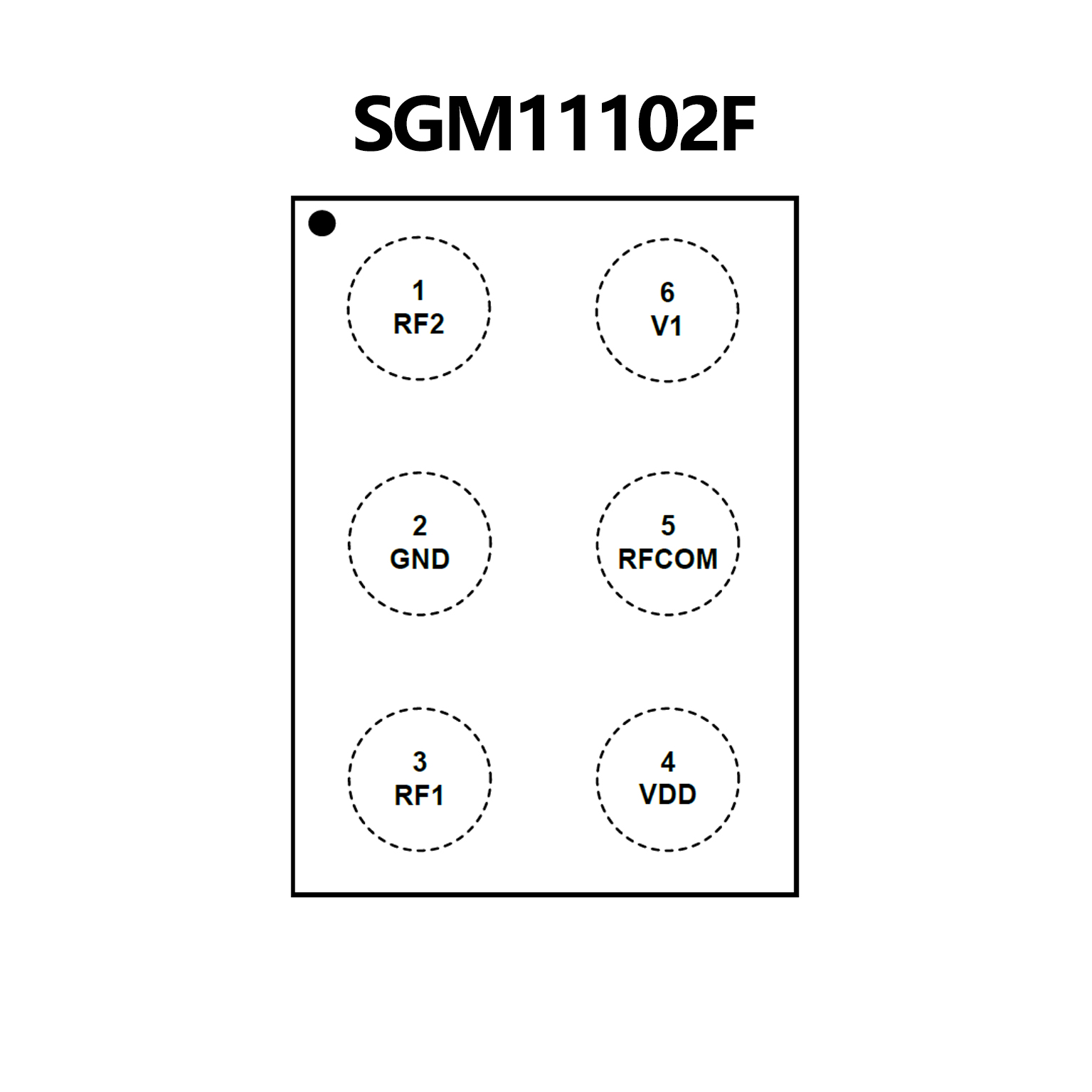

SGM11102F.pdf• Supply Voltage Range: 2.4V to 3V
• GPIO Controller
• Operating Frequency Range: 0.1GHz to 6GHz
• Low Insertion Loss: 0.4dB (TYP) at 2.7GHz
• High Isolation: 24dB (MIN) at 2.7GHz
• Advanced Silicon-On-Insulator (SOI) Process
• No External DC Blocking Capacitors Required
• Available in a Green UTDFN-1.1×0.7-6L Package

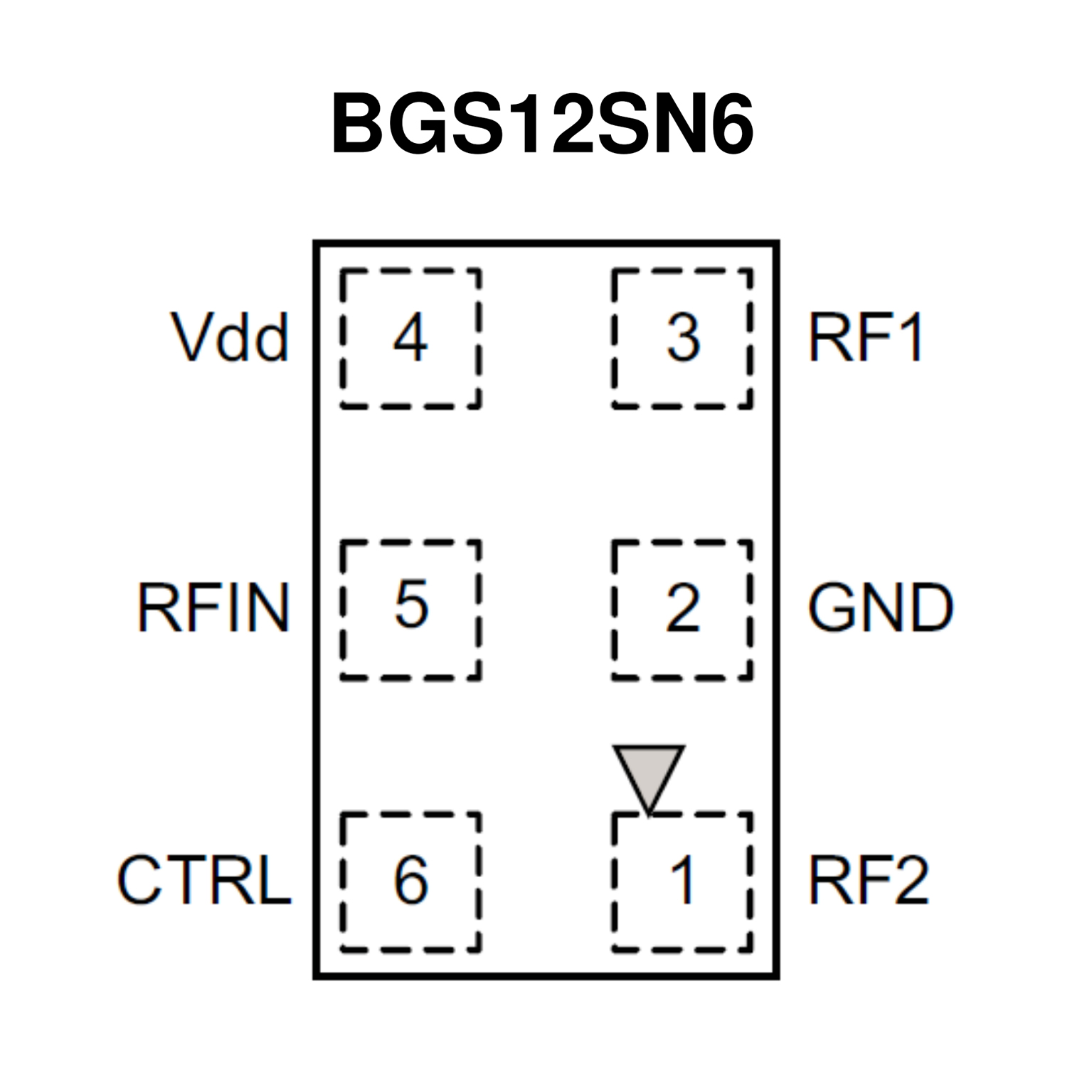

• 2 high-linearity TRx paths with power handling
capability of up to 30 dBm
• High switching speed, ideal for WLAN and
Bluetooth applications
• All ports fully bi-directional
• Low insertion loss
• Low harmonic generation
• High port-to-port-isolation
• 0.05 to 6 GHz coverage
• High ESD robustness
• On-chip control logic
• Very small leadless and halogen free package
TSNP-6-2(-8) (0.7x1.1 mm2) with super low
height of 0.375 mm
• No decoupling capacitors required if no DC
applied on RF lines
• RoHS compliant package
