High Linearity SPDT RF Switch, SGM11102F Replace MXD8625C.
SGM11102F
SGM11102F.pdf
SGM11102F.pdfFEATURES
• Supply Voltage Range: 2.4V to 3V
• GPIO Controller
• Operating Frequency Range: 0.1GHz to 6GHz
• Low Insertion Loss: 0.4dB (TYP) at 2.7GHz
• High Isolation: 24dB (MIN) at 2.7GHz
• Advanced Silicon-On-Insulator (SOI) Process
• No External DC Blocking Capacitors Required
• Available in a Green UTDFN-1.1×0.7-6L Package

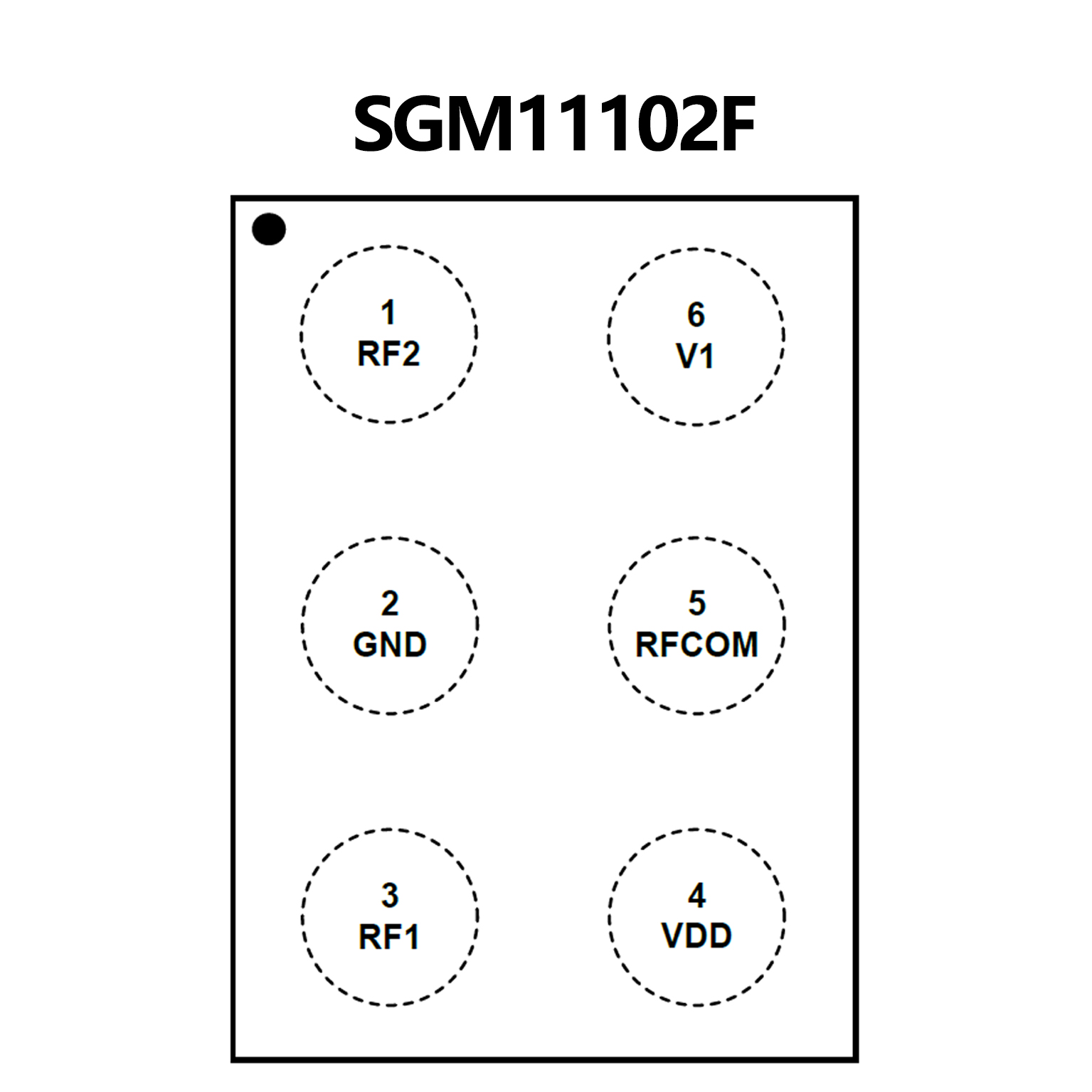

PIN CONFIGUTION
优势替代
FEATURES
• Broadband frequency range: 0.1 to 3 GHz
• Low insertion loss: 0.35 dB @ 2.7 GHz
• High isolation: 28 dB up to 2.7 GHz
• P0.1dB 36dBm
• No external DC blocking capacitors required
• Single GPIO control line with VDD voltage
regulator:
VCTL= 1.6 to 3.00 V
VDD= 2.5 to 3.00 V
• Small, 6-Lead QFN, 400 um pitch (1.1mm x
0.7mmx 0.45 mm) package
PIN CONFIGUTION
